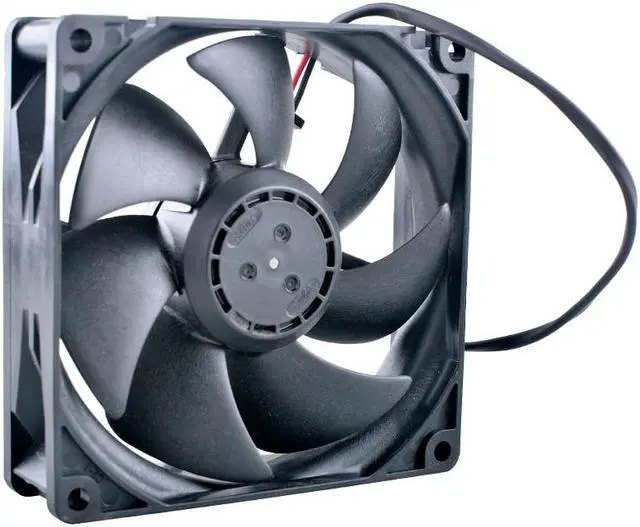

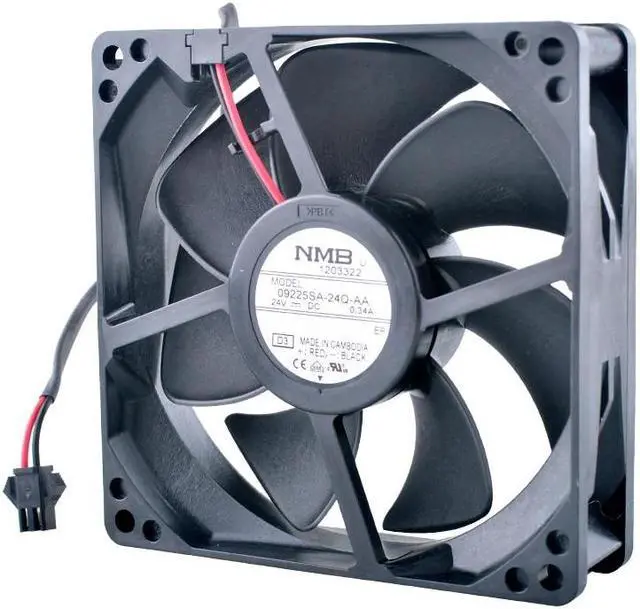

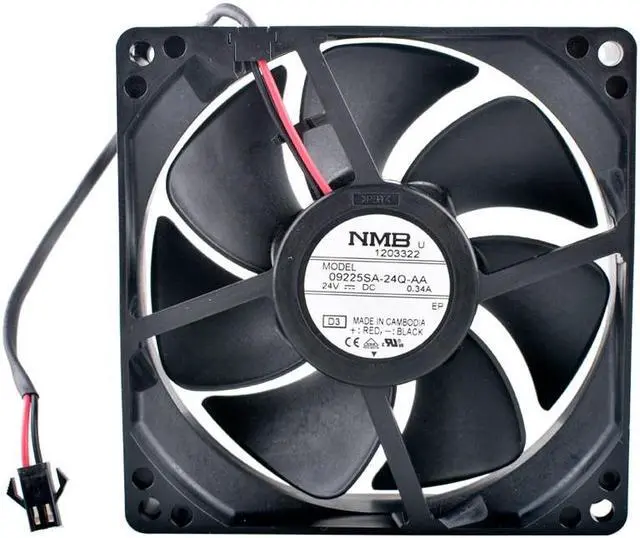

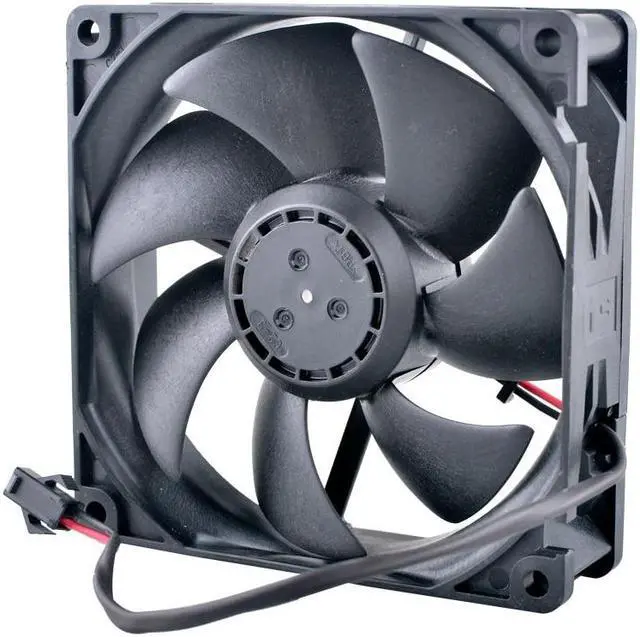

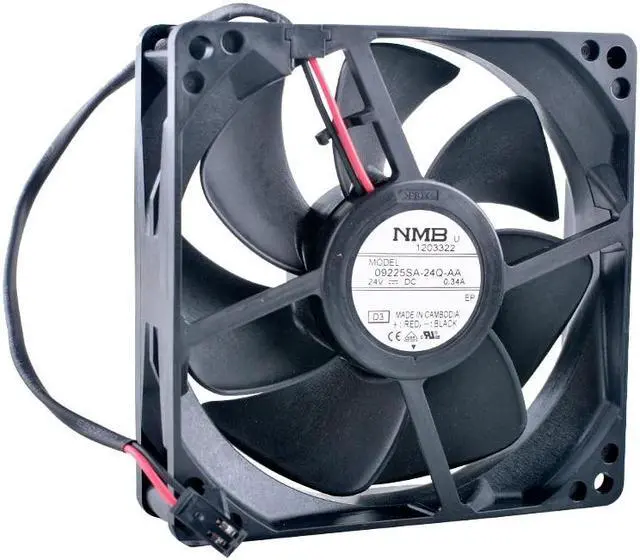

09225SA-24Q-AA 92mm fan 92x92x25mm DC24V 0.34A 3900rpm Dual ball bearing axial flow fan cooling fan for frequency converter
- 09225SA-24Q-AA 92mm fan 92x92x25mm DC24V 0.34A 3900rpm Dual ball bearing axial flow fan cooling fan for frequency converter
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Category
DC Axial Fans
Part Number
09225SA-24Q-AA-D0
Frame Width [mm]
92
Frame Height [mm]
92
Frame Depth [mm]
25
Max. Air Flow [CFM]
65
Max. Air Flow [m3 per min]
1.84
Max. Static Pressure [In H2O]
0.29
Max. Static Pressure [Pa]
73
Fan Speed [RPM]
3900
Noise [dB]
40
Life Expectancy [L10]
60 degree C 40, 000 Hours AA/EA
Bearing Type
Ball Bearing
Nominal Voltage [V]
24
Operating Voltage - Lower [V]
12
Operating Voltage - Upper [V]
27.6
Current [A]
0.13
Input Power [W]
3.1
Mass [g]
95
Rib/Flange
Rib
Tach / Locked Rotor Output
Standard 2 Wire
DC Axial Fans
Part Number
09225SA-24Q-AA-D0
Frame Width [mm]
92
Frame Height [mm]
92
Frame Depth [mm]
25
Max. Air Flow [CFM]
65
Max. Air Flow [m3 per min]
1.84
Max. Static Pressure [In H2O]
0.29
Max. Static Pressure [Pa]
73
Fan Speed [RPM]
3900
Noise [dB]
40
Life Expectancy [L10]
60 degree C 40, 000 Hours AA/EA
Bearing Type
Ball Bearing
Nominal Voltage [V]
24
Operating Voltage - Lower [V]
12
Operating Voltage - Upper [V]
27.6
Current [A]
0.13
Input Power [W]
3.1
Mass [g]
95
Rib/Flange
Rib
Tach / Locked Rotor Output
Standard 2 Wire
