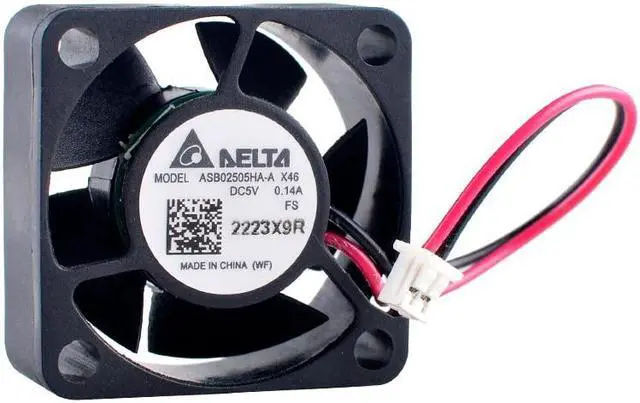

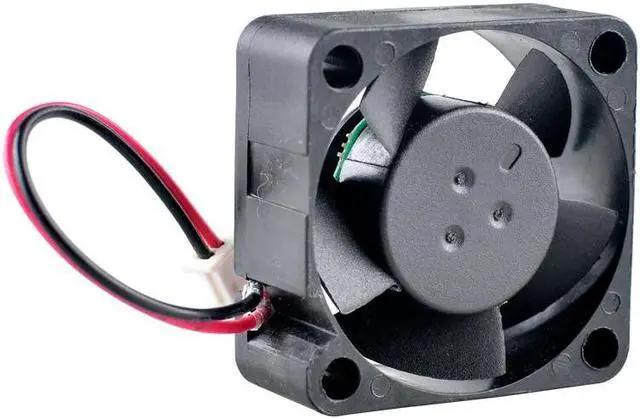

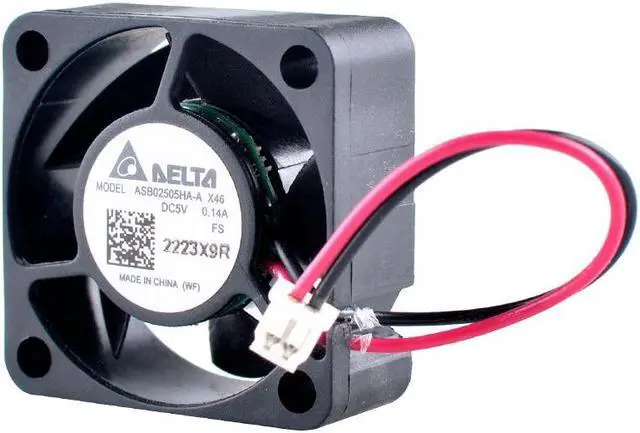

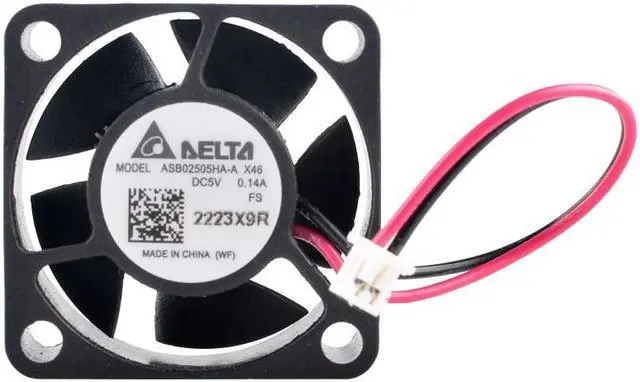

ASB02505HA-A 2.5cm 25mm cooling fan 25x25x10mm DC5V 0.14A 9000rpm Micro cooling fan

Series
ASB
Package
Box
Product Status
Active
Voltage - Rated
5VDC
Size / Dimension
Square - 25mm L x 25mm H
Width
10.00 mm
Air Flow
2.2 CFM ( 0.061 m/min)
Static Pressure
0.114 in H2O ( 28.4 Pa)
Bearing Type
Sleeve
Fan Type
Tubeaxial
Features
Locked Rotor Protection, Speed Sensor (Tach)
Noise
18.0 dB (A)
Power (Watts)
450 mW
RPM
9000 RPM
Termination
2 Wire Leads
Ingress Protection
-
Operating Temperature
14 ~ 158F (-10 ~ 70C)
Approval Agency
-
Weight
0.014 lb ( 6.35 g)
Current Rating (Amps)
0.14A
Voltage Range
4 ~ 5.5VDC
Material - Frame
Plastic
Material - Blade
Plastic
Lifetime @ Temp.
30000 Hrs @ 40C
Base Product Number
ASB02505
