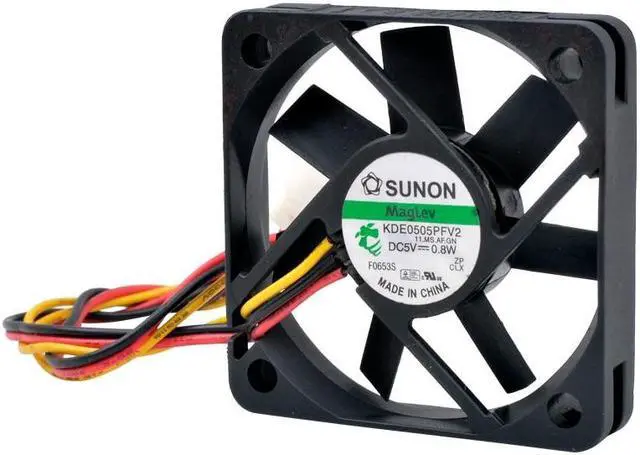

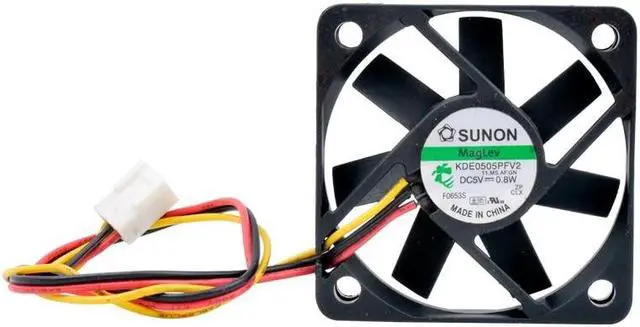

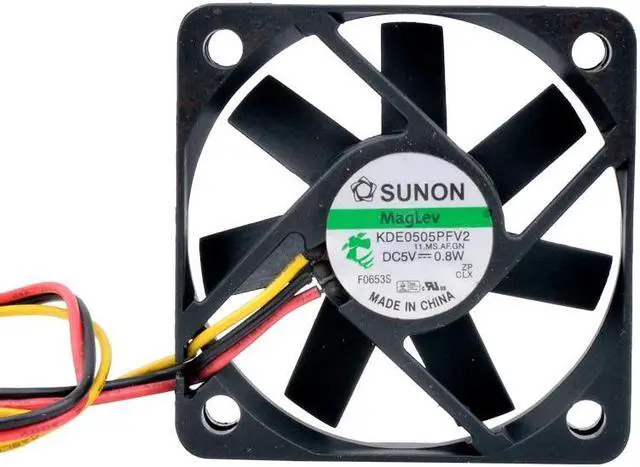

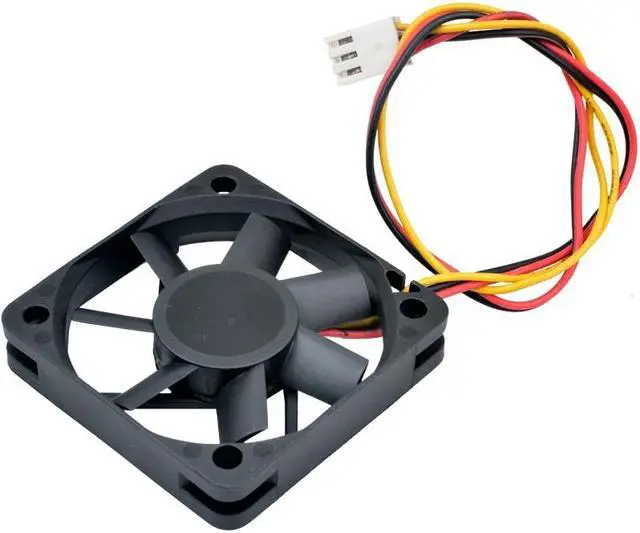

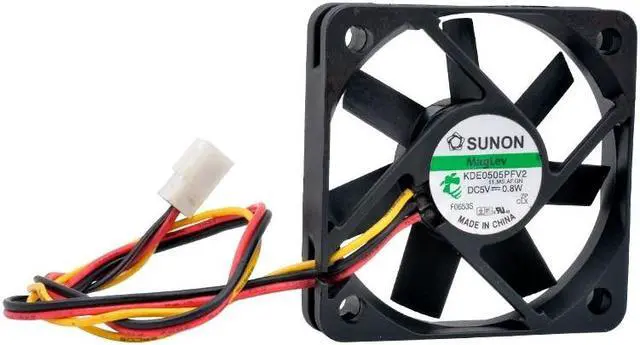

KDE0505PFV2 5cm 50mm fan 50x50x10mm DC5V 0.8W 3pin Axial fan cooling fan for switch power supply
- KDE0505PFV2 5cm 50mm fan 50x50x10mm DC5V 0.8W 3pin Axial fan cooling fan for switch power supply
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Part number KDE0505PFV2-11. MS. A. GN
Description FAN AXIAL 50X10MM VAPO 5VDC WIRE
KDE05PFV 2.11. MS. A. GN Spec Sheet
width 10.00 mm
weight 0.046 lb ( 20.87 g)
voltage range 4~6VDC
Flow - Variable 5VDC
stopping 2 Wire Leads
static pressure 0.110 in H2O ( 27.4 Pa)
Size / Dimension Square - 50mm L x 50mm H
Series MagLev KDE
RPM 4300 RPM
Capacity (W) 800mW
Working temperature 14 ~158F (-10 ~70C)
noise 26.0 dB (A)
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Service Time@Temp. -
Lead free / RoHS Compliant
degree of protection -
Characters -
Tubeaxial fan type
nominal point 0.160A
type of resistance Vapo-Bearing
air flow 11.0 CFM ( 0.308 m/min)
Description FAN AXIAL 50X10MM VAPO 5VDC WIRE
KDE05PFV 2.11. MS. A. GN Spec Sheet
width 10.00 mm
weight 0.046 lb ( 20.87 g)
voltage range 4~6VDC
Flow - Variable 5VDC
stopping 2 Wire Leads
static pressure 0.110 in H2O ( 27.4 Pa)
Size / Dimension Square - 50mm L x 50mm H
Series MagLev KDE
RPM 4300 RPM
Capacity (W) 800mW
Working temperature 14 ~158F (-10 ~70C)
noise 26.0 dB (A)
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Service Time@Temp. -
Lead free / RoHS Compliant
degree of protection -
Characters -
Tubeaxial fan type
nominal point 0.160A
type of resistance Vapo-Bearing
air flow 11.0 CFM ( 0.308 m/min)
