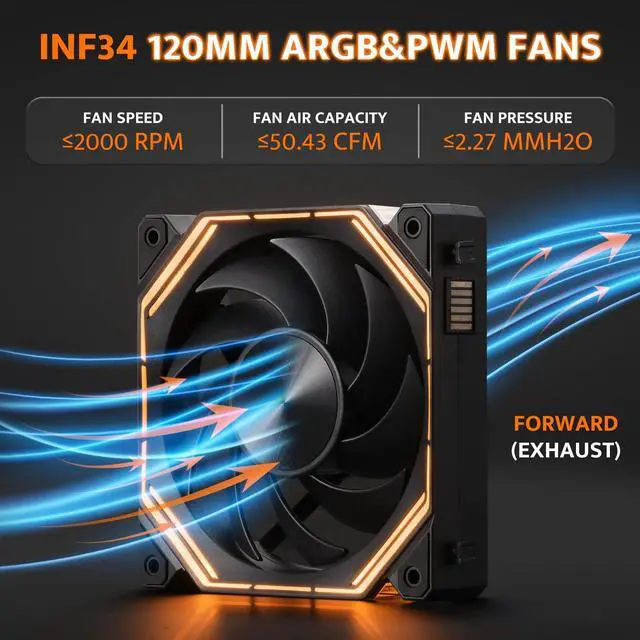

Is this a Forward or Reverse blade fan?
Please note that this is the INF34 Forward Fan.

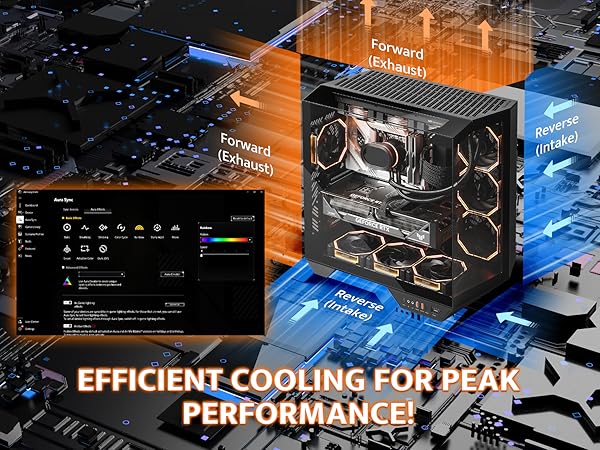

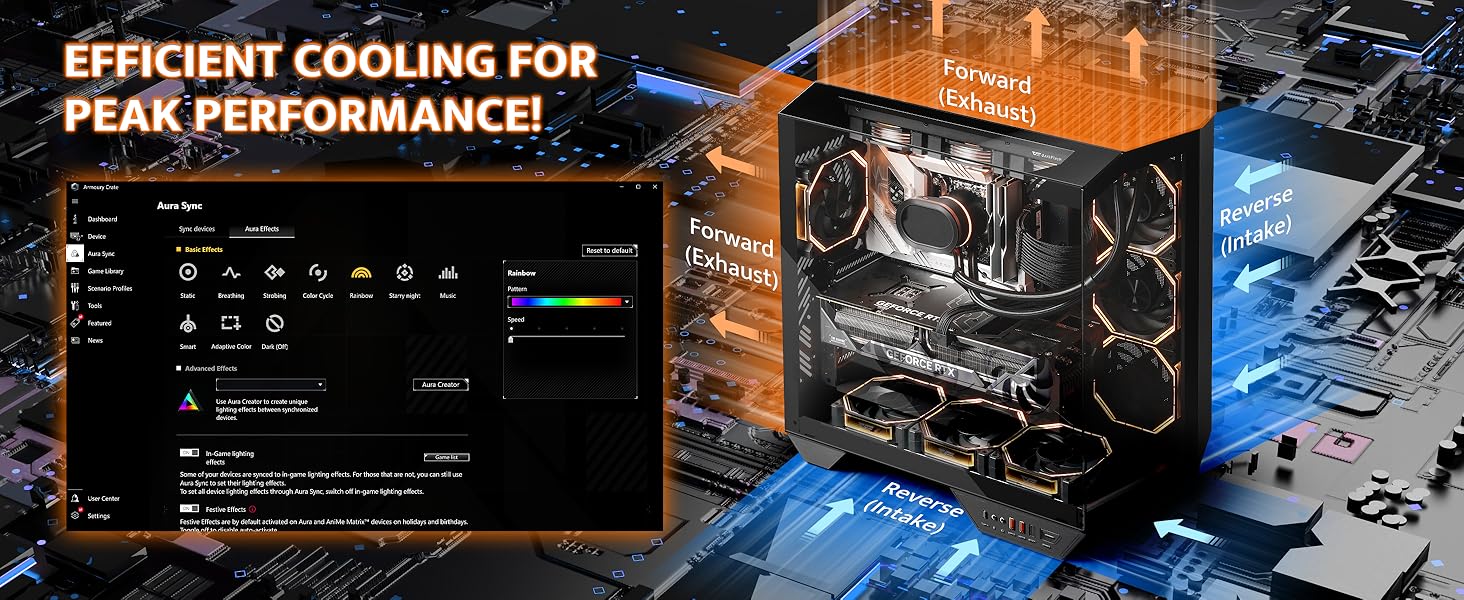

The forward fan is usually installed on the rear panel or top of the chassis, with the front facing outward as the air inlet and the back facing inward as the air outlet.

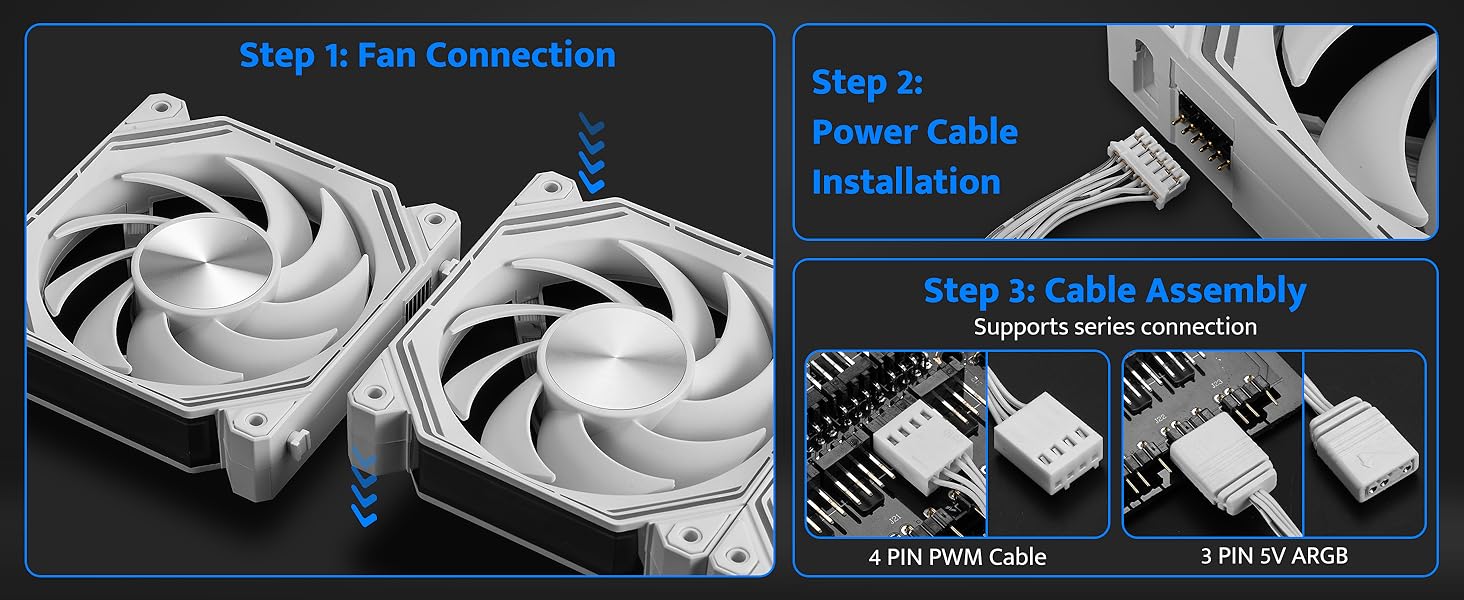

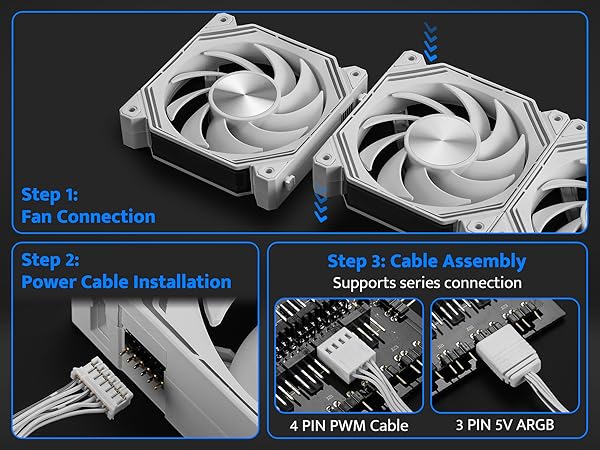

How to install the fan? Is there a problem with the cables being messy?

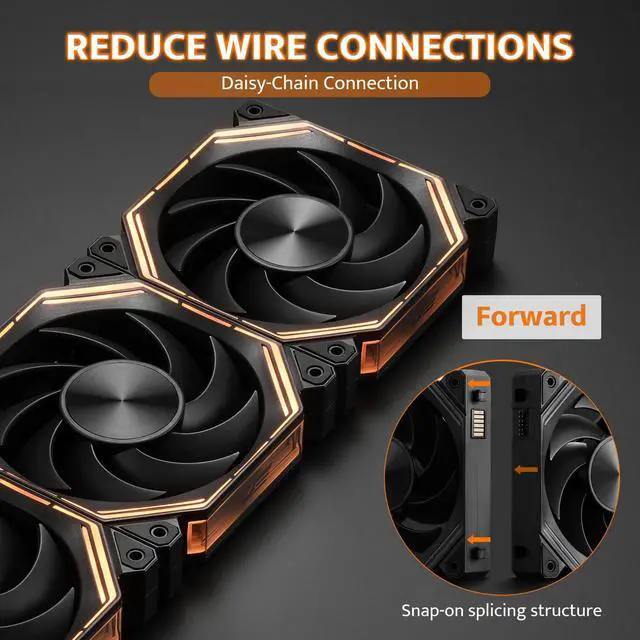

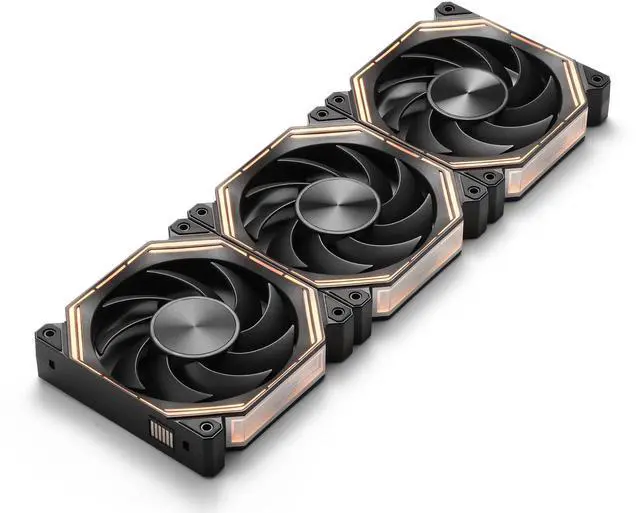

The daisy chain design means that each fan only needs to be connected to the previous fan, and each fan no longer needs to be wired independently, which greatly reduces the problem of cable clutter and makes installation faster and more beautiful.

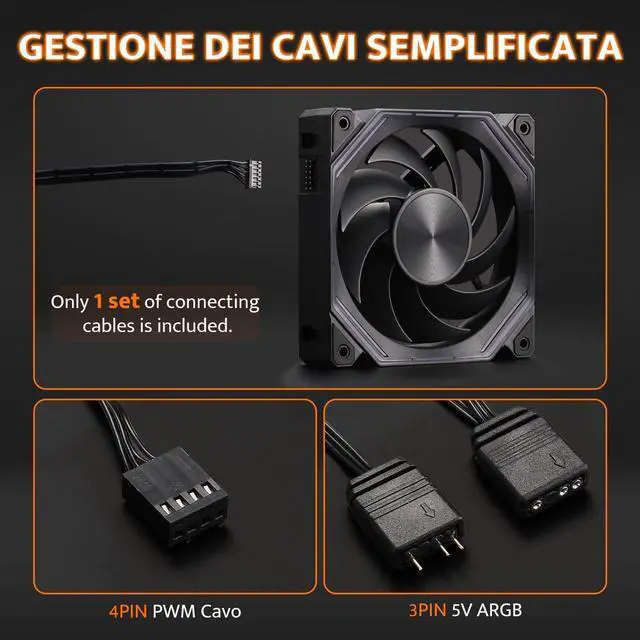

How many pins does the fan have? Does it support motherboard ARGB synchronization?

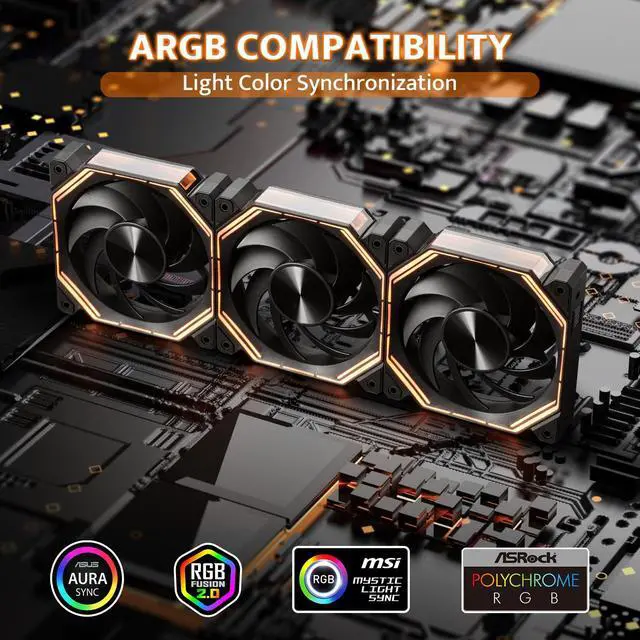

This fan uses a standard 5V 3-pin ARGB interface + 4-pin PWM fan interface, and supports ARGB synchronization of mainstream brand motherboards, such as ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome, etc.

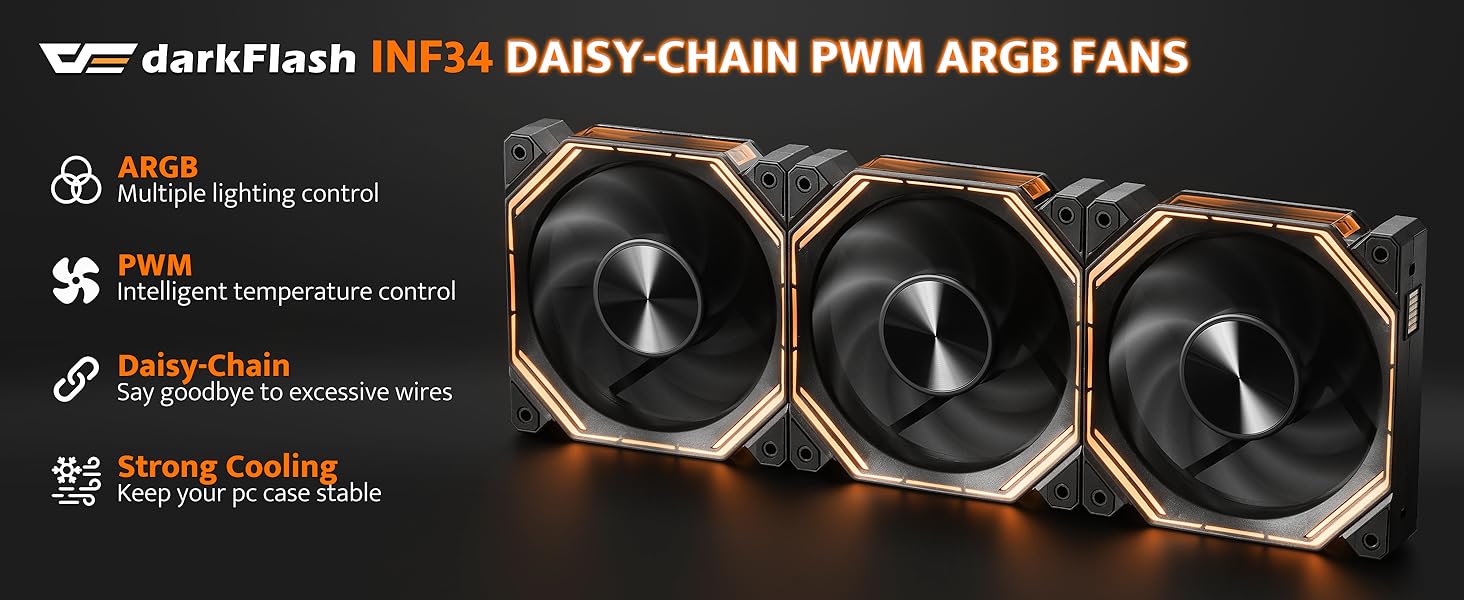

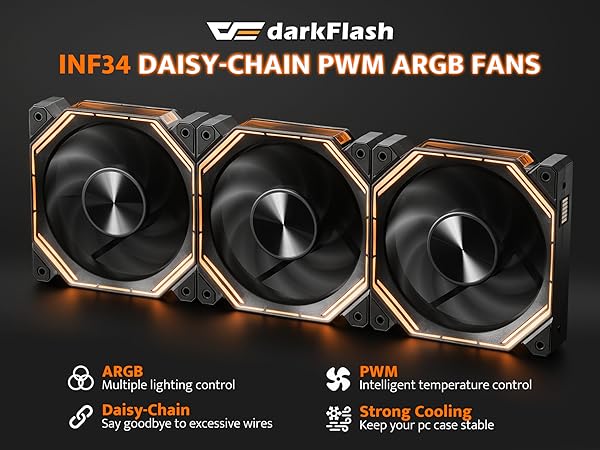

How many fans can be connected in series?
Yes, this fan supports daisy chain connection design. Fans can be directly connected to each other. It is recommended that no more than 5 fans be connected in series to ensure stable power supply and synchronization effect.
INF34 Fans Specifications
PC Accessories
 DY470 PC Case with 1 Fan |  DY470 PC Case with 4 Fans |  G24 Magnetic PC Case Fans |  G16 Magnetic PC Case Fans |  DS900 ATX PC Case |  PMT850 PSU |  DN360A Liquid Cpu Cooler | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Size | 19.57" x 11.73" x 18.62" | 19.57" x 11.73" x 18.62" | 4.72" x 4.72" x 0.98" | 4.72" x 4.72" x 0.98" | 17.08" x 8.58" x 17.87" | 5.52" x 5.9" x 3.39" | — |
Product Weight | 21.83 LB | 22.34 LB | 1.43 LB | 1.43 LB | 14.56 LB | 5.05 LB | 3.86 LB |
Fan Type | X1 INF34 PWM ARGB | X4 INF34 PWM ARGB | G24 Magnetic PWM ARGB | G16 Magnetic PWM ARGB | X4 DM12 PWM ARGB | PWM | PWM ARGB |
Motherboard Support | ATX/Micro-ATX/Mini-ITX | ATX/Micro-ATX/Mini-ITX | — | — | ATX/Micro-ATX/Mini-ITX | — | — |
Radiator Support | Top&Side: 360mm(MAX) | Top&Side: 360mm(MAX) | — | — | Side: 240mm /Top: 240/360mm | — | — |
Max GPU Length | Hl:16.14" / V:15.35" | Hl:16.14" / V:15.35" | — | — | 16.73" | — | — |
Max CPU Cooler Height | 6.89" | 6.89" | — | — | 6.69" | — | — |
Max PSU Support | 7.09" | 7.09" | — | — | 7.09" | — | — |
Expansion Slots | 7 Slots | 7 Slots | — | — | 7 Slots | — | — |
Drive Bays | 3.5"H.D.D. x 2+2.5"S.S.D. x 1 | 3.5"H.D.D. x 2+2.5"S.S.D. x 1 | — | — | 2x3.5"HDD/1x 3.5"HDD+2.5"SSD | — | — |
Is this a Forward or Reverse blade fan?
Please note that this is the INF34 Forward Fan.
The forward fan is usually installed on the rear panel or top of the chassis, with the front facing outward as the air inlet and the back facing inward as the air outlet.
How to install the fan? Is there a problem with the cables being messy?
The daisy chain design means that each fan only needs to be connected to the previous fan, and each fan no longer needs to be wired independently, which greatly reduces the problem of cable clutter and makes installation faster and more beautiful.
How many pins does the fan have? Does it support motherboard ARGB synchronization?
This fan uses a standard 5V 3-pin ARGB interface + 4-pin PWM fan interface, and supports ARGB synchronization of mainstream brand motherboards, such as ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome, etc.
How many fans can be connected in series?
Yes, this fan supports daisy chain connection design. Fans can be directly connected to each other. It is recommended that no more than 5 fans be connected in series to ensure stable power supply and synchronization effect.
INF34 Fans Specifications
| Dimensions | 120*120*28MM(Forward Blade) |
|---|---|
| Fan plug | 5V 3Pin ARGB Lighting, 4 Pin PWM |
| Fan Pressure | 2.27 MMH2O(Max) |
| Fan Speed | 800-2000±10%RPM |
| Fan Air Capacity | 50.43 CFM(Max) |

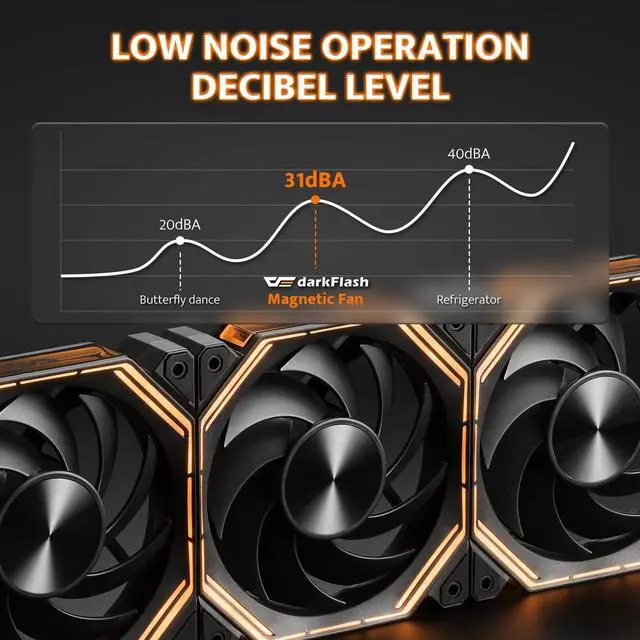

| Noise Level | 31.6 dBA(Max) |
| Fan Voltage | 5V |
| Fan Current | 0.15A |
| Fan Power | 1.80W |
PC Accessories
DY470 PC Case with 1 Fan | DY470 PC Case with 4 Fans | G24 Magnetic PC Case Fans | G16 Magnetic PC Case Fans | DS900 ATX PC Case | PMT850 PSU | DN360A Liquid Cpu Cooler |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Size | ||||||
| 19.57" x 11.73" x 18.62" | 19.57" x 11.73" x 18.62" | 4.72" x 4.72" x 0.98" | 4.72" x 4.72" x 0.98" | 17.08" x 8.58" x 17.87" | 5.52" x 5.9" x 3.39" | — |
| Product Weight | ||||||
| 21.83 LB | 22.34 LB | 1.43 LB | 1.43 LB | 14.56 LB | 5.05 LB | 3.86 LB |
| Fan Type | ||||||
| X1 INF34 PWM ARGB | X4 INF34 PWM ARGB | G24 Magnetic PWM ARGB | G16 Magnetic PWM ARGB | X4 DM12 PWM ARGB | PWM | PWM ARGB |
| Motherboard Support | ||||||
| ATX/Micro-ATX/Mini-ITX | ATX/Micro-ATX/Mini-ITX | — | — | ATX/Micro-ATX/Mini-ITX | — | — |
| Radiator Support | ||||||
| Top&Side: 360mm(MAX) | Top&Side: 360mm(MAX) | — | — | Side: 240mm /Top: 240/360mm | — | — |
| Max GPU Length | ||||||
| Hl:16.14" / V:15.35" | Hl:16.14" / V:15.35" | — | — | 16.73" | — | — |
| Max CPU Cooler Height | ||||||
| 6.89" | 6.89" | — | — | 6.69" | — | — |
| Max PSU Support | ||||||
| 7.09" | 7.09" | — | — | 7.09" | — | — |
| Expansion Slots | ||||||
| 7 Slots | 7 Slots | — | — | 7 Slots | — | — |
| Drive Bays | ||||||
| 3.5"H.D.D. x 2+2.5"S.S.D. x 1 | 3.5"H.D.D. x 2+2.5"S.S.D. x 1 | — | — | 2x3.5"HDD/1x 3.5"HDD+2.5"SSD | — | — |
