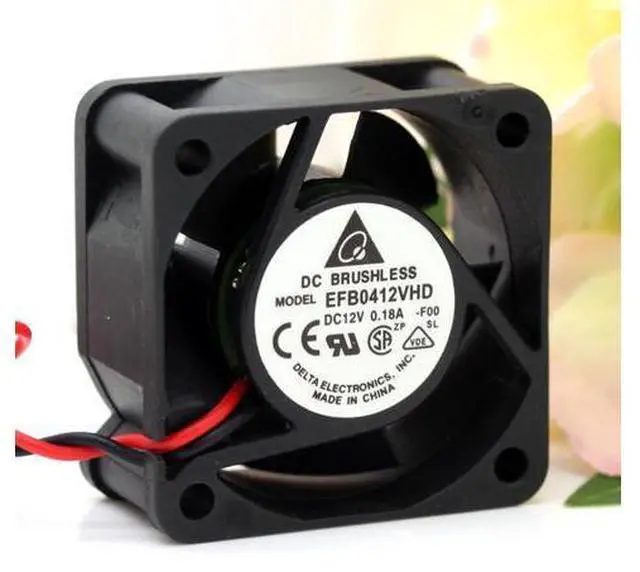

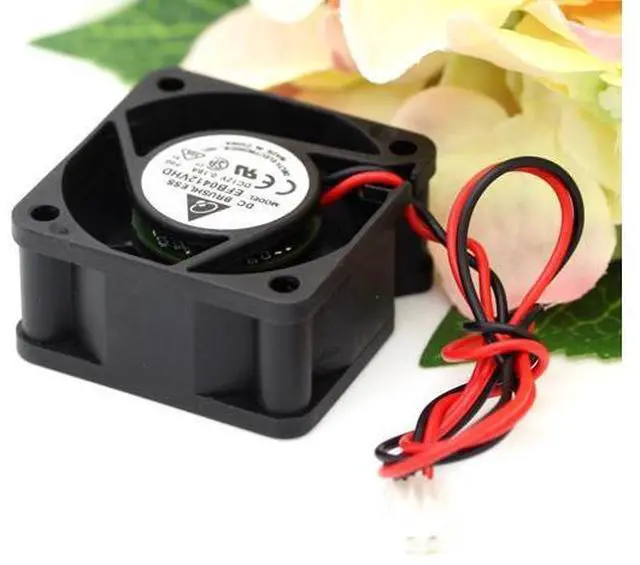

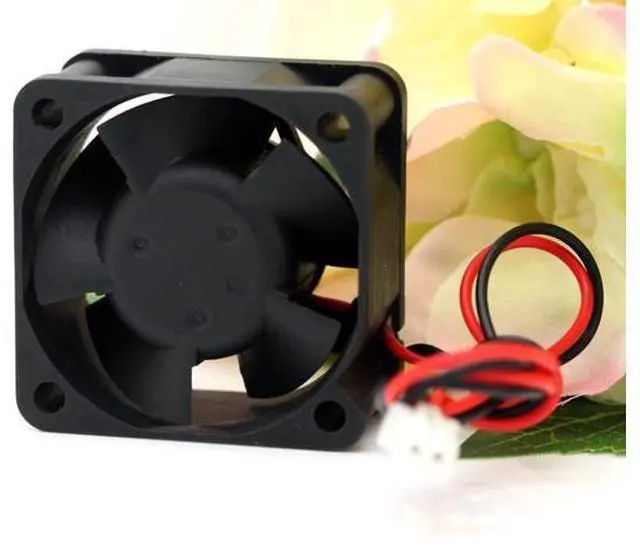

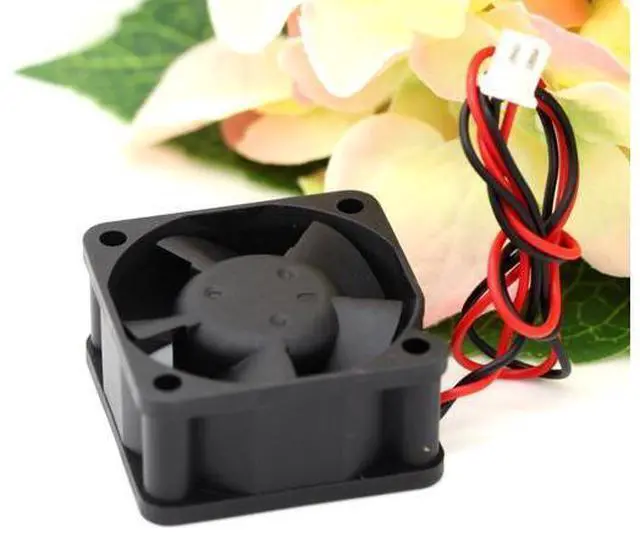

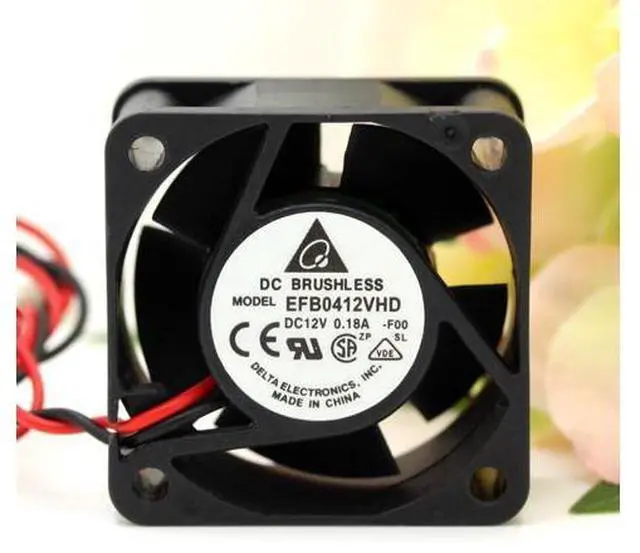

NEW Delta EFB0412VHD 12V 0.18A 4020 4cm 1U server switch fan
Limited time offer, ends 06/28 By CircuitNest
- 40mm; 2 Ball
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Fan model: EFB0412VHD
[appearance size]: 40 x 40 x 20mm
Rated voltage: DC12V
[voltage range]: DC 7.0V - 14.0V [input power]: 0.18A
Rated speed: 8000 r. p.
m [temperature range]: -10..
70 degrees C [life]: 25 C L10 is expected to be 40000 hours Maintenance free double ball bearing The wind is discharged from the support, facing the rotor counter clockwise rotation.
[wiring mode]: + Red -
Black Maximum air volume: 17.1 m3/h
Motor protection: fault level protection and locked rotor protection
Minimum wind pressure: 0..
105 Pa [noise index]: 15
dB (A) [material]: glass fiber reinforced plastic, PBT shell, PA blade, environmental protection
certification Suitable for: switch / power. Southbridge. Beiqiao. The graphics card fan replacement. 1U server fan
[appearance size]: 40 x 40 x 20mm
Rated voltage: DC12V
[voltage range]: DC 7.0V - 14.0V [input power]: 0.18A
Rated speed: 8000 r. p.
m [temperature range]: -10..
70 degrees C [life]: 25 C L10 is expected to be 40000 hours Maintenance free double ball bearing The wind is discharged from the support, facing the rotor counter clockwise rotation.
[wiring mode]: + Red -
Black Maximum air volume: 17.1 m3/h
Motor protection: fault level protection and locked rotor protection
Minimum wind pressure: 0..
105 Pa [noise index]: 15
dB (A) [material]: glass fiber reinforced plastic, PBT shell, PA blade, environmental protection
certification Suitable for: switch / power. Southbridge. Beiqiao. The graphics card fan replacement. 1U server fan
