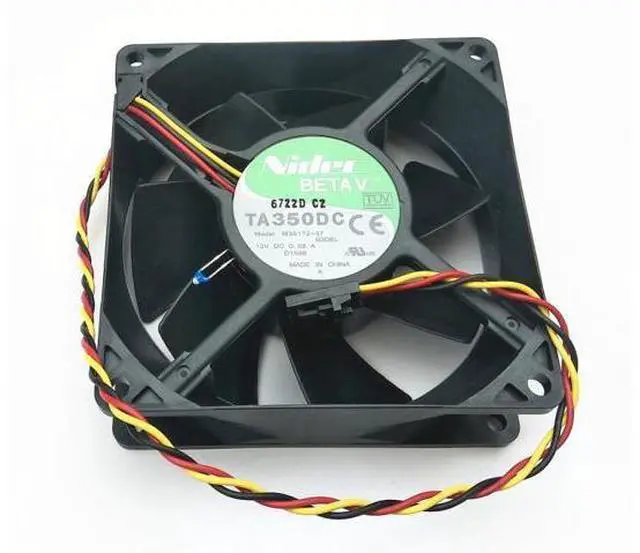

New Nidec M35172-57 9032 9cm dual ball automatic temperature control mute fan Du bond connector

Brand: NIDEC-
Nissan Model: TA350DC/M35172-57
G3DEL Features: temperature control probe (automatic speed regulation).
Size: 92x92x32mm (90x90x32mm)
Bearing: double ball.
Voltage: 12V
Current: 0.55A
Speed: 1300~3600 RPM automatic speed control
Air volume: 24.2 ~ 68.23
CFM Noise: 16~ 42.7 dBA
Connector: DELL special three needles (or directly inserted into the main board, 3 needles, 4 needles).
Speed measurement: no speed measurement does not support
PWM Scope of application: DELL Dimension 8100/8200 desktop computers and personal computers retrofitting heat dissipation equipment.
Note: Although it's 0.55A, it doesn't reach this value normally. If you need high speed to short-circuit the two feet of the thermostat, that is, connecting the two feet, the fan runs at full speed, high speed, high air volume, and high sound.
Temperature control reference: Low
state: at ambient temperature 25 degrees, the speed is 1300 revolutions automatically, the air volume is 24.30 CFM, the noise value is 16.5 dB.
High state: When the ambient temperature is as high as 55 degrees, the speed is 3600 rpm, the air volume is 68.23 CFM, the noise value is 42.7 dB.
Other states: at different ambient temperatures, according to the temperature control probe, automatically adjust the speed, the fan has automatic corresponding speed.
