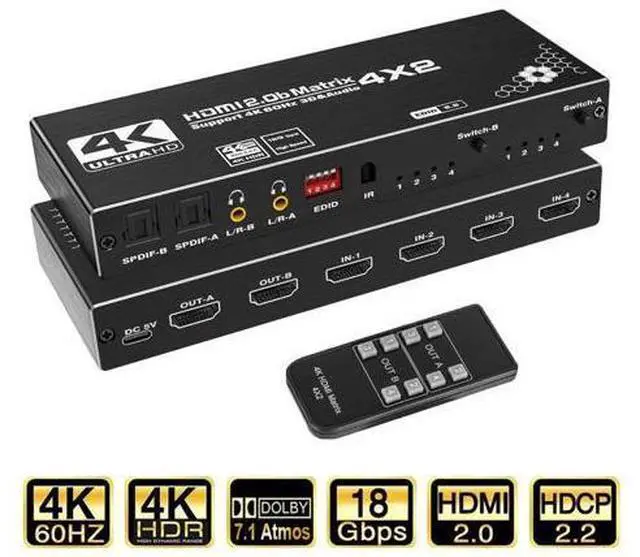

HDMI Matrix 4x2,WISDUM 4K@60Hz HDMI Matrix Switch 4 in 2 Out with EDID Extractor and IR Remote Control, Support HDMI 2.0b, HDCP2.2, HDR10, Ultra HD, 3D

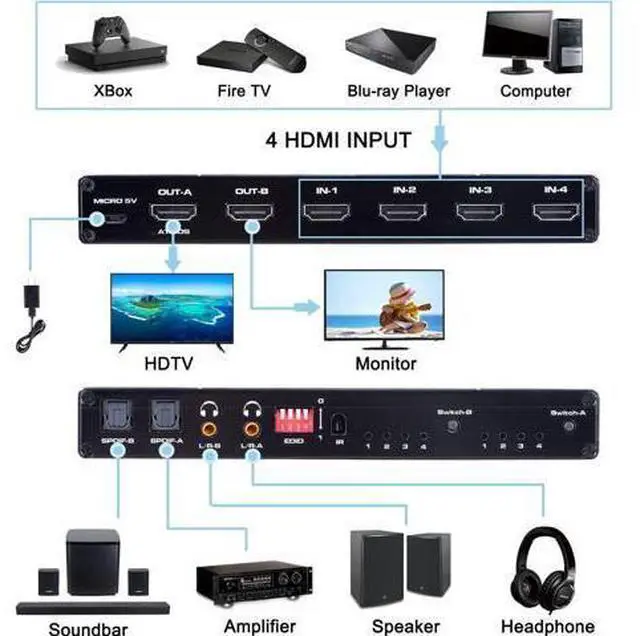

HDMI Matrix 4x2 HDMI Matrix 4 in 2 out: It can connect four 4K HDR signal sources to two HD display or monitor, and it can also extract the HDMI input Audio signal with Toslink SPDIF optical fiber or 3.5 mm stereo headphone output.
Note:
1. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right.
2. After you had set the EDID, Please restart your HDMI Matrix Switch. Wide Compatibility Support HDCP 2.2, compatible with HDMI 2.0 b.
Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc.
Output support: Projector, HDTV etc. Support 4K 60HZ &
3D HDMI Resolution: 3D, Full HD, 4kx2k, up to 3840X2160/60Hz, RGB

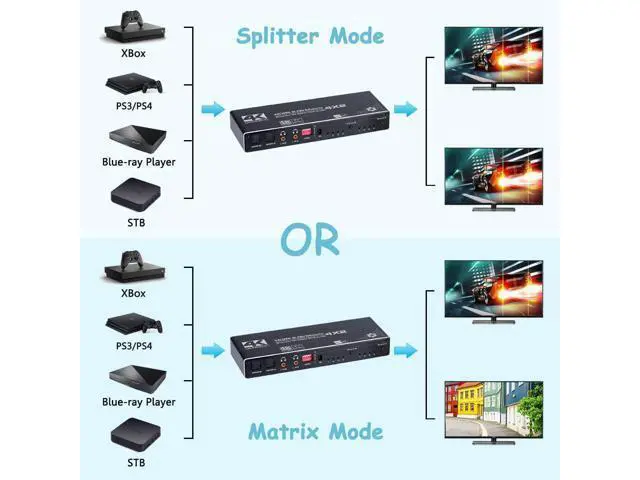

4:4: 4, HDR Support 18.5G bps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24/32/48bit. HDMI Audio Extract Support HDMI audio outputs, 3.5 mm earphone jack and optical output at same time. Support LPCM/Dolby/DTS 5.1 channel Upgrade 4 IN 2 OUT matrix This 4K HDMI matrix can connect up to 4 HD signal sources to 2 HDMI Display terminals via optical fiber or stereo headphone output, it allows easy switching or splitting of four HDMI devices into two HD displays. The power supply port is designed to be on the same side as all HDMI ports for easy connection. Solutions suitable for home theater, office, school, meeting room, shopping center, hotel or museum. Two Switching Modes Manual Switch - Simply choose whichever inputs you want with the button on the box. Remote Control Switch - Effortlessly swap HDMI channels up to 15 ft with the remote Plug and Play This 4x2 HDMI matrix is easy to set up and operate, it has built-in automatic equalization and amplification functions to ensure the best transmission without losing video/audio quality. Compatible with computer, Blu-ray player, DVD player, Roku streaming media player, TV Box, Play Station 3/4, Xbox One/360 or other HDMI compatible devices.

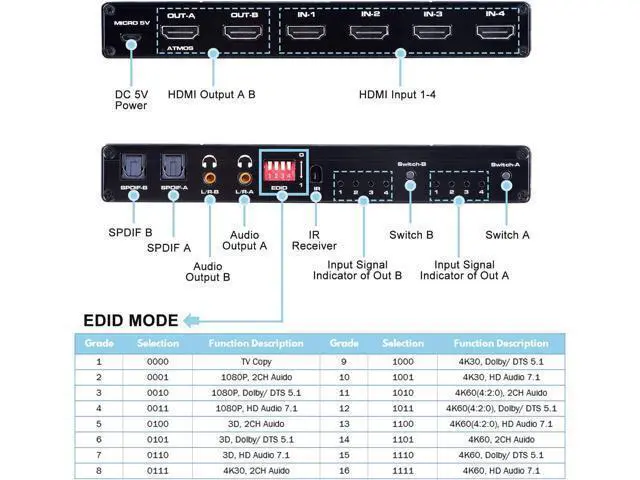

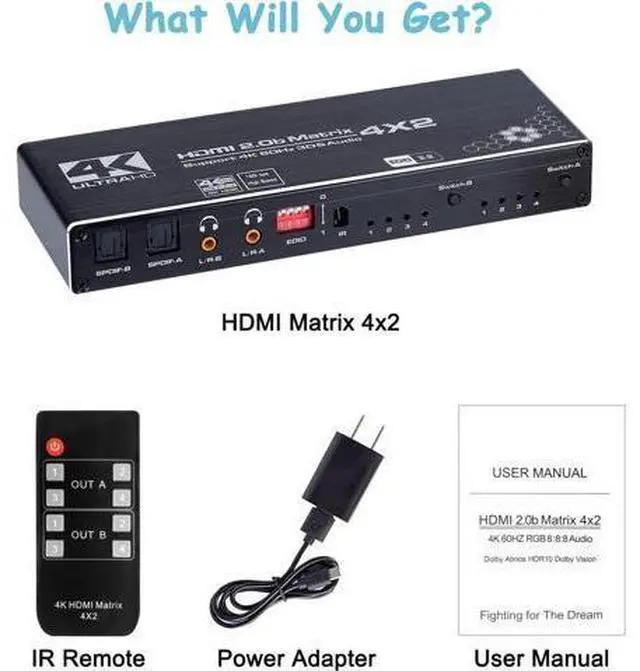

The convenient and intuitive remote control can switch input or output at will. Settable EDID EDID switch sets the video and audio mode of the HDMI source. Flexible EDID switching provides 16 switching modes that can be met for different resolution needs. Package contents 1x HDMI Matrix 4x2 1x 5V power adapter 1x IR Remote Control 1x User Manual
HDMI Matrix 4x2: HDMI Matrix Switch can connect four 4K HDR signal sources to two HD display or monitor, and it can also extract the HDMI input Audio signal with Toslink SPDIF optical fiber or 3.5 mm stereo headphone output. It can also control by a IR remote control. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right. After you had set the EDID, Please restart your HDMI Matrix Switch.

Specifications

: HDMI-Compatible
version: HDMI-Compatible 2.0 b
HDMI-Compatible resolution: 4096*2160/30Hz
Support video format: 8/10/12 bit dark
Support audio format: for
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD Maximum bandwidth transmission: 320MHz
Maximum transmission rate: 3.2G bps
Input cable length: (1080p resolution) 15m, (4K resolution) 12m AWG26 HDMI-Compatible standard cable
Output cable length: (1080p resolution) 25m, (4K resolution) 15m AWG26 HDMI-Compatible standard cable
HDMI-Compatible input ports: 4
HDMI-Compatible output port: 2
Maximum working current: 1000mA
Power adapter specifications:
input: AC (50HZ, 60HZ)
100V-240V; output: DC5V/2A
