WISDUM Extender HDMI RJ45 HDMI extender cat5 60M HDMI extender audio Kit over ethernet cat6/5e for PS4 apple TV PC laptop HDTV

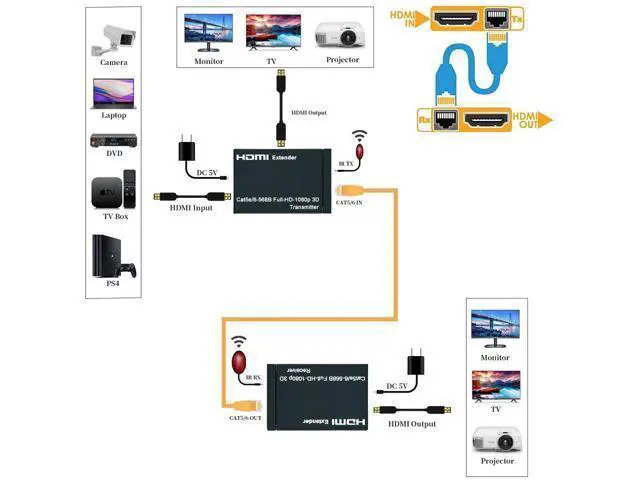

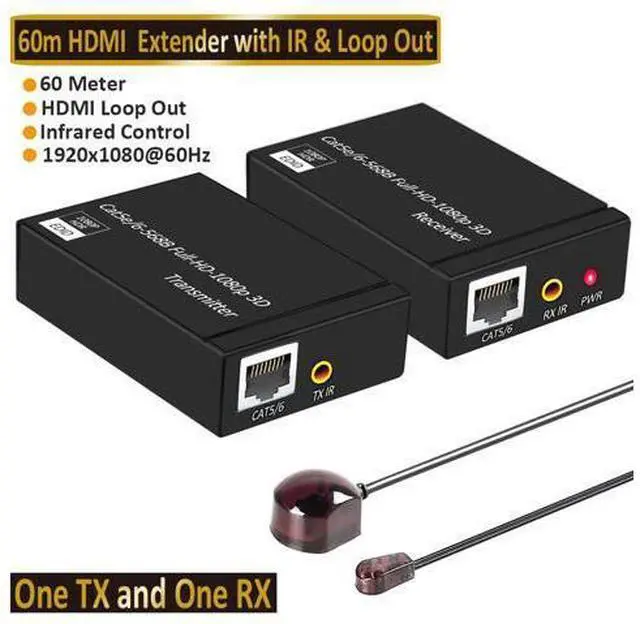

RJ45 HDMI Extender 60m No Delay No Loss 1080P HDMI Extender Over UTP CAT5e CAT6 RJ45 HDMI Extender With IR & Loop Out Description: WISDUM HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, HDMI loop out and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Specifications

: Video
Standards: HDMI 1.3; HDCP 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 6.75G bps
Resolution: 1920X1080P@60Hz
Connector: HDMI-A
IR Interface: 3.5 mm seat
Signal direction: directional
Signal type: Digital
IR frequency: 20~60 KHz;
UTP Interface: RJ45/IEEE-568B

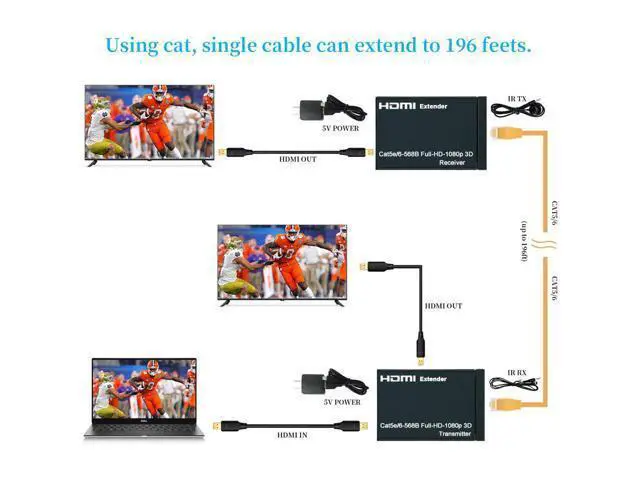

Transmission distance:
CAT5e: 50m/164ft, CAT 6:60 m/196ft
Other Power supply: The
power adapter: DC 5V/1A
Power dissipation: MAX 3W
Dimension: 94*71*25mm

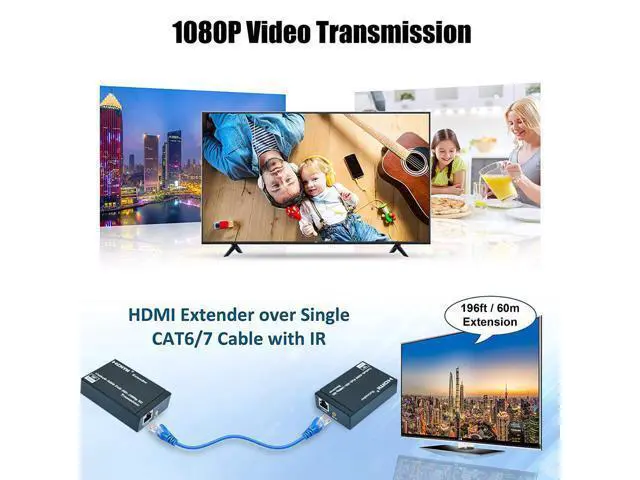

Features: Long
range transmission: up to 60m/196ft over a single CAT6 cable
Video resolution: Up to 480P, 720P, 1920x1080@60Hz, 3D
Audio sampling rate: 32kHz, 44.1 kHz and 48kHz
Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/DSD
HDMI loop out function: The transmitter with one HDMI local loop out;
Uncompressed mode: NO Delay, No loss
Male to male: one TX to one RX applicataion
Copy EDID: It is extended display identification data, Press the button 3seconds, the TX will copy the signal data, like auto-match. They remember the EDID information if you plug them off the power adapter and them turn them back again
Infrared control: Bi-directional 20~60 KHz IR romote control;
Video standard: compliance with HDMI 1.3 and HDCP 1.2 standard;
Built-in automatic adjustment system: make the image smooth, clear and stable
Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc Simple to install, plug and play
Long range transmission: up to 60m/196ft over a single CAT6 cable
Video resolution: Up to 480P, 720P, 1920x1080@60Hz, 3D
Audio sampling rate: 32kHz, 44.1 kHz and 48kHz
Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/DSD
HDMI loop out function: The transmitter with one HDMI local loop out;
Uncompressed mode: NO Delay, No loss
Male to male: one TX to one RX applicataion
Copy EDID: It is extended display identification data, Press the button 3seconds, the TX will copy the signal data, like auto-match. They remember the EDID information if you plug them off the power adapter and them turn them back again
Infrared control: Bi-directional 20~60 KHz IR romote control;
Video standard: compliance with HDMI 1.3 and HDCP 1.2 standard;
Built-in automatic adjustment system: make the image smooth, clear and stable
Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc Simple to install, plug and play
