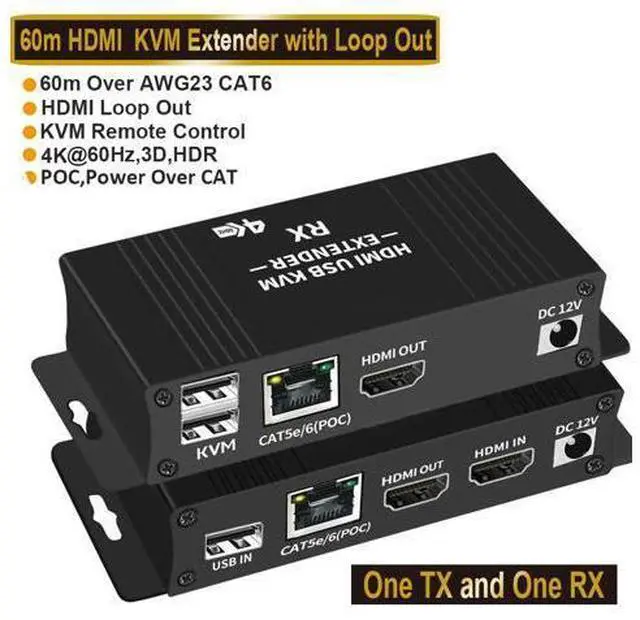

    WISDUM 60m/196ft HDMI KVM Extender over Ethernet Cat5e/6 4K@60Hz HDMI USB Extender Video Audio Extension Transmitter Support USB Keyboard Mouse

    Limited time offer, ends 06/28 By TechMax Depot

    • Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
    • Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz;
    • HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12/24 Bit;
    • Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;

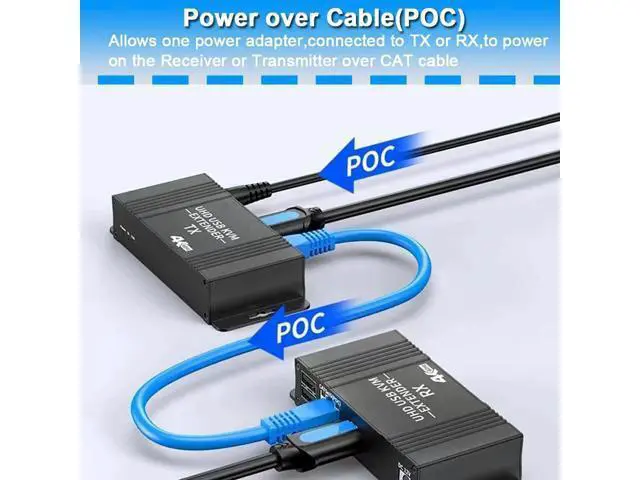

    • POC function:Power over CAT cable,only need one power adapter;

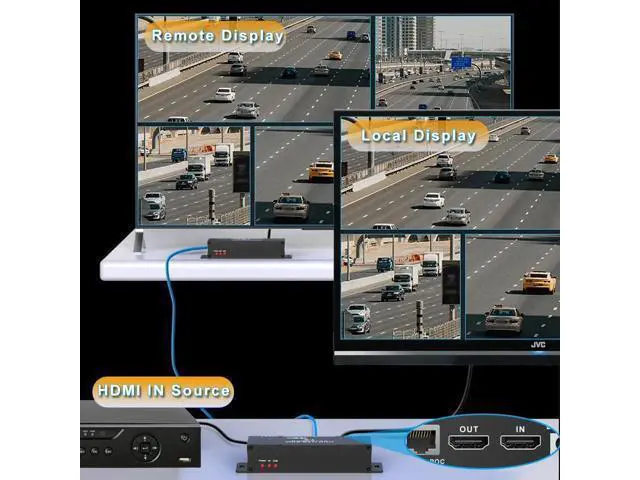

    • HDMI loop out function:The transmitter with one HDMI local loop out;
    • Uncompressed mode:ZERO Delay,No loss;

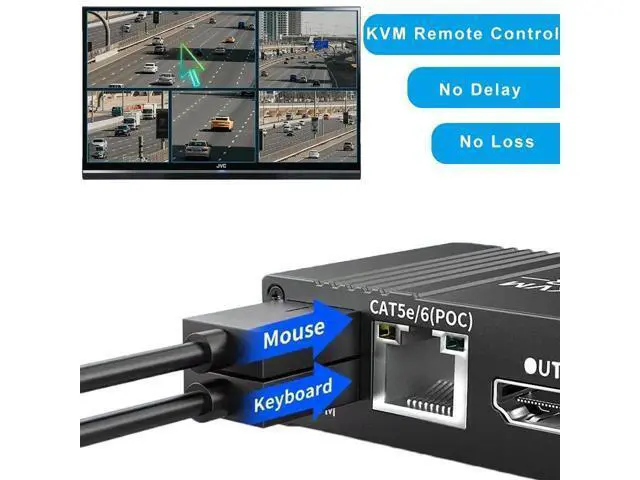

    • KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
    • Male to male:one TX to one RX applicataion;
    • Video standard:compliance with HDMI 2.0 and HDCP 2.2 ,and compliant DVI standard;
    • Built-in automatic adjustment system:make the image smooth, clear and stable;
    • Built-in ESD protection system:make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
    • Simple to install, plug and play
    +
    +
    Overview
    Specs
    Reviews
    4K 60Hz HDMI KVM Extender RJ45 HDMI

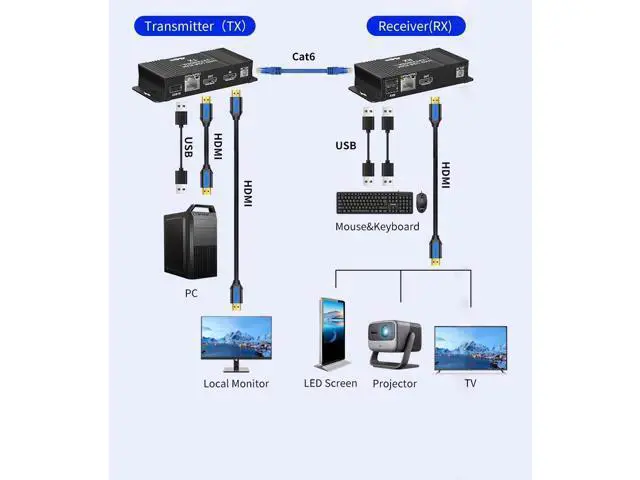

    USB Extender Description: 4K@60Hz HDMI KVM extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 3840x2160@60Hz, POC, HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
    Package: 4K

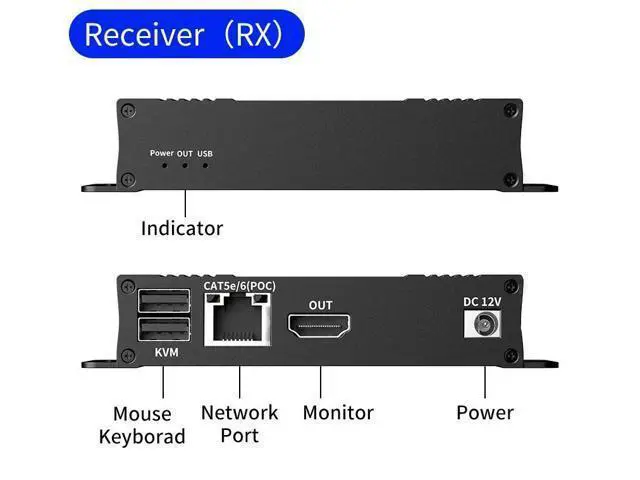

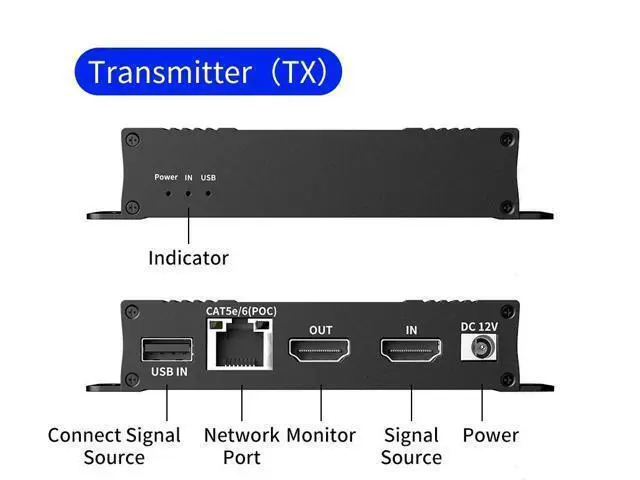

    HDMI KVM extender transmitter: 1 pcs 4K
    HDMI KVM extender receiver: 1 pcs
    Power adapter: 1pcs
    User manual: 1 pcs
    Features: Long
    range transmission: up to 60m/196ft over a single AWG23 CAT6 cable;
    Video resolution: Up to 576P, 720P, 1920x1080P@60Hz, 3840x2160@60Hz; HDR 10+, 3D, Dolby Vision, Dolby ATMOS, Deep
    Color: 8/10/12/24 Bit;
    Audio format: LPCM2/ 5.1 / 7.1, Dolby Digital, DTS 5.1, Dolby Digital+;
    POC function: Power over CAT cable, only need one power adapter;
    HDMI loop out function: The transmitter with one HDMI local loop out;
    Uncompressed mode: ZERO Delay, No loss;
    KVM Rmote Control: keyboard and mouse remote control transmitter from long distance;
    Male to male: one TX to one RX applicataion;
    Video standard: compliance with HDMI 2.0 and HDCP 2.2, and compliant DVI standard;
    Built-in automatic adjustment system: make the image smooth, clear and stable;
    Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc; plug and play Simple to install, plug and play

    Specifications

    : Video
    Standards: HDMI 2.0; HDCP 2.2 and DVI compliant
    Maximum pixel clock: 300MHz
    Maximum data rate: 18Gbps
    Resolution: 4K@60Hz
    Connector: HDMI-A
    Impedance: 100Ohm
    USB Interface:
    PC: Type B USB interface; connect to pc;
    K/M: connect wired or wireless USB keyboard and mouse
    USB signal: HID
    Signal CAT Interface: RJ45/IEEE-568B/AWG23
    Transmission distance: CAT 5:40 m/131ft, CAT5e: 50m/164ft, CAT 6:60 m/196ft
    Other Power supply: The
    power adapter: DC 12V/1A
    Power dissipation:
    TX: 1.92W, RX: 1.68W (Max)
    Temperature:
    Operating: -5 centigrade ~ +70 centigrade
    Humidity:
    Operating: 5% ~ 90%
    Dimension: 118*50*25mm
    Note: 1. the K/M USB port only support wired or wireless keyboard and mouse, not support Mechanical keyboard, USB camera, Scanner, USB flash driver, printer etc. 2. For CAT cable, please you use AWG23 CAT5e/6 cable with IEEE-568B connection. 4K HDMI KVM extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 3840x2160@60Hz, POC, HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
    Long range transmission: up to 60m/196ft over a single AWG23 CAT6 cable;
    Video resolution: Up to 576P, 720P, 1920x1080P@60Hz, 3840x2160@60Hz; HDR 10+, 3D, Dolby Vision, Dolby ATMOS, Deep
    Color: 8/10/12/24 Bit;
    Audio format: LPCM2/ 5.1 / 7.1, Dolby Digital, DTS 5.1, Dolby Digital+;
    POC function: Power over CAT cable, only need one power adapter;
    HDMI loop out function: The transmitter with one HDMI local loop out;
    Uncompressed mode: ZERO Delay, No loss;
    KVM Rmote Control: keyboard and mouse remote control transmitter from long distance;
    Male to male: one TX to one RX applicataion;
    Video standard: compliance with HDMI 2.0 and HDCP 2.2, and compliant DVI standard;
    Built-in automatic adjustment system: make the image smooth, clear and stable;
    Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc; plug and play Simple to install, plug and play
