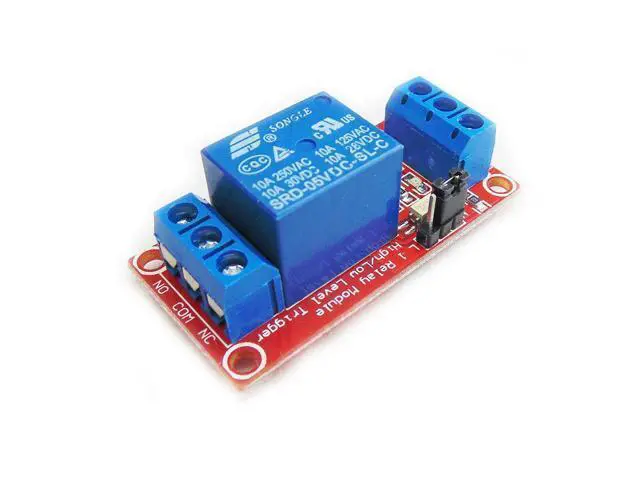

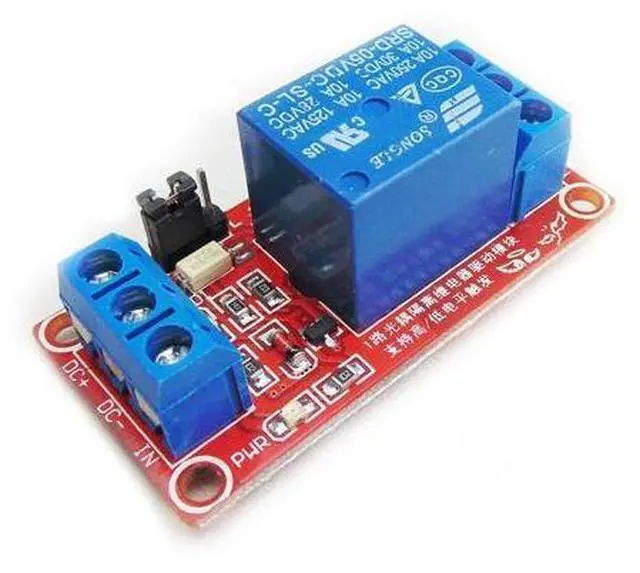

WISDUM 2pcs 5V One Channel Relay Module Relay Switch with OPTO Isolation High Low Level Trigger
Limited time offer, ends 06/28 By TechMax Depot
- The module uses genuine quality relay, normally open interfaces , Maximum load: AC 250V/10A, DC 30V/10A.
- Using SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA.
- Fault-tolerant design, even if the control line is broken, the relay will not move.
- The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient.
- The Module can be set by jumper high or low trigger.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Module description: 1. The module Operating voltage 5V; 2. Fault-tolerant design, even if the control line is broken, the relay will not operate; 3. The power indicator (green), the relay status indicator (red); 4.
Module size: 50mm*26mm* 18.5 mm (L*W*H).
Interface: -Input
VCC: Relay power supply +
GND: Relay power supply -
IN: Signal trigger input (High or Low Level Signal, select via jumper) -Output
NO: Relay normally open.
COM: Relay
Common Pin NC: Relay normally closed. High or Low
Level Trigger Select:
1. Use High Level Trigger When ¡°IN¡± input High Level Signal, the ¡°NO¡± connect with ¡±COM¡± When ¡°IN¡± input Low Level Signal, the ¡°NC¡± connect with ¡°COM¡±
2. Use Low Level Trigger When ¡°IN¡± input Low Level Signal, the ¡°NO¡± connect with ¡±COM¡± When ¡°IN¡± input High Level Signal, the ¡°NC¡± connect with ¡°COM¡±
3. High or Low Level Trigger Select Jumper connect with L, Low Level Trigger Jumper connect with H, High Level Trigger Package Included 2* 5V 1 Channel Relay Module
Module size: 50mm*26mm* 18.5 mm (L*W*H).
Interface: -Input
VCC: Relay power supply +
GND: Relay power supply -
IN: Signal trigger input (High or Low Level Signal, select via jumper) -Output
NO: Relay normally open.
COM: Relay
Common Pin NC: Relay normally closed. High or Low
Level Trigger Select:
1. Use High Level Trigger When ¡°IN¡± input High Level Signal, the ¡°NO¡± connect with ¡±COM¡± When ¡°IN¡± input Low Level Signal, the ¡°NC¡± connect with ¡°COM¡±
2. Use Low Level Trigger When ¡°IN¡± input Low Level Signal, the ¡°NO¡± connect with ¡±COM¡± When ¡°IN¡± input High Level Signal, the ¡°NC¡± connect with ¡°COM¡±
3. High or Low Level Trigger Select Jumper connect with L, Low Level Trigger Jumper connect with H, High Level Trigger Package Included 2* 5V 1 Channel Relay Module
