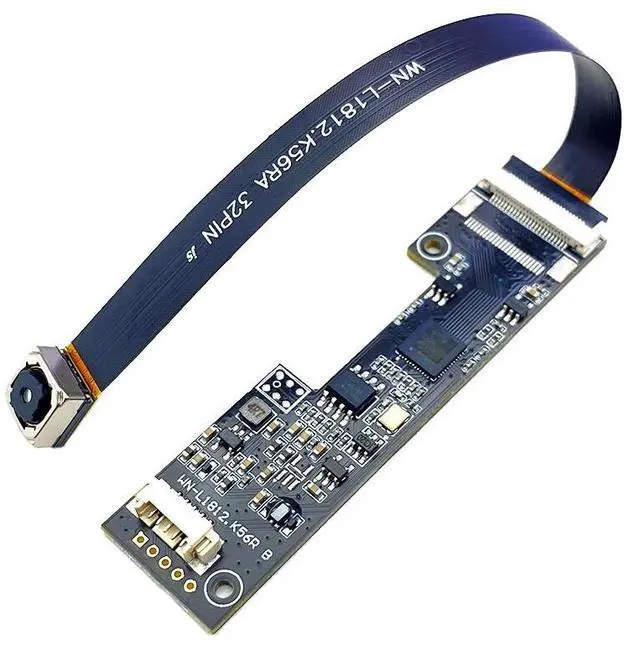

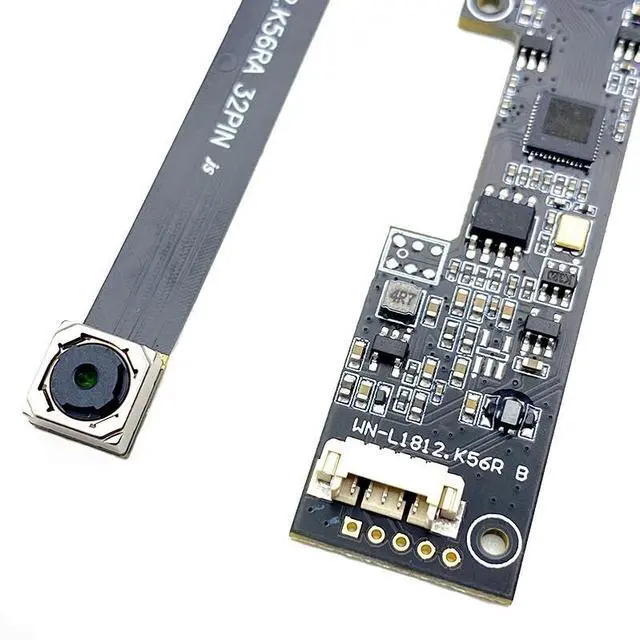

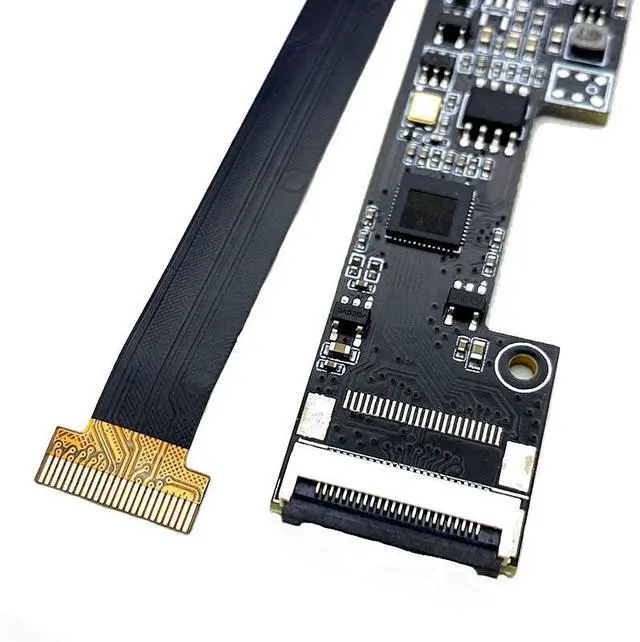

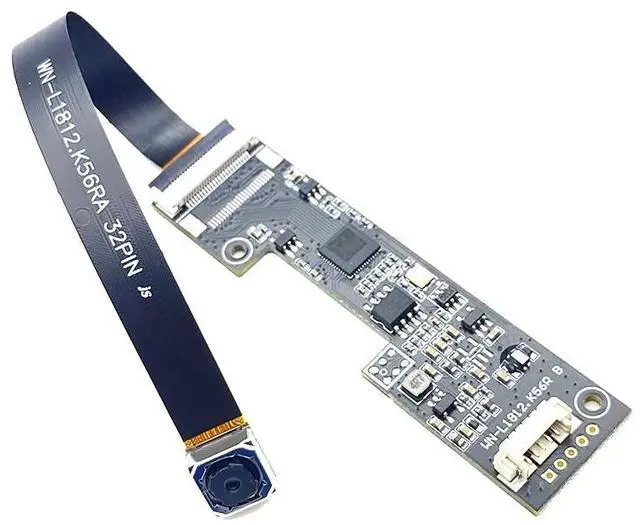

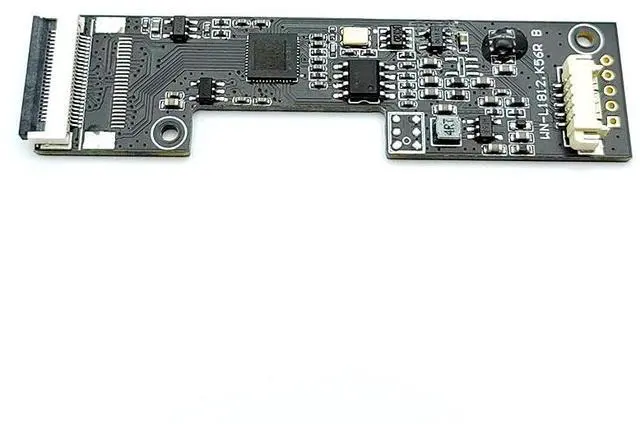

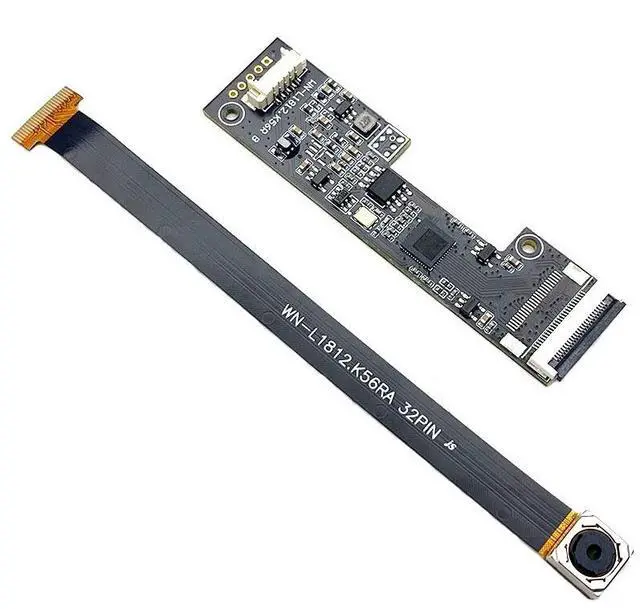

8MP USB2.0 Camera Module
this 8MP USB camera module adopts the 1/3.2-inch IMX179 CMOS image sensor with maximum resolution of 3264×2448 at 15fps frame rate. Mini size, 75° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.
Main Parameters
| Product Name |
8MP USB2.0 Camera Module |
| Product Code |
WN-L1812.K56R |
| Module Size |
PCB-70*18mm, FPC-100mm |
| Image Sensor |
1/3.2-inch IMX179 CMOS Sensor |
| Max. Resolution |
3264H x 2448 V |
| Pixel Size |
1.4*1.4µm |
| Output Format |
MJPEG, YUY2 |
| Field of View |
75° |
| Lens |
EFL: 3.79mm, F.NO: 2.0, 5G1P+IR 650nm |
| Audio Input |
Digital Microphone |
| Focus Mode |
Autofocus/Fixed focus |
| Shutter Mode |
Electronic Rolling Shutter |
| Output & Power Supply |
High Speed USB2.0 |
| Dynamic Range |
Up to 72.5dB |
| Interface |
5PIN 1.25mm Connector |
| Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
| Supported OS |
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc. |
| Connection Cable |
Default1.0 Meter USB Cable |
| Formats |
Resolutions |
Frame Rates |
| MJPEG
|
3264x2448 (8MP) |
15FPS |
| 2592x1944 (5MP) |
15FPS |
|
| 2048x1536 (2K) |
15FPS |
|
| 1920x1080 (1080P) |
30FPS |
|
| 1600x1200 (UXGA) |
30FPS |
|
| 1280x720 (720P) |
30FPS |
|
| 800x600 (WVGA) |
30FPS |
|
| 640x480 (VGA) |
30FPS |
|
| YUY2 |
3264x2448 (8MP) |
15FPS |
| 2592x1944 (5MP) |
15FPS |
|
| 1920x1080 (1080P) |
30FPS |
|
| 1600x1200 (UXGA) |
30FPS |
|
| 640X480 (VGA) |
30FPS |
| Working Voltage |
DC 5V |
| Working Current |
110mA |
| Working Temperature |
-20°C ~ 60°C |
| Storage Temperature |
-20°C ~ 85°C |
| Humidity |
80 ~85% |
