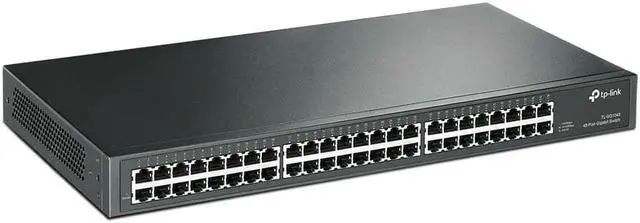

TP-Link TL-SG1048 48-Port Gigabit Ethernet 1000Mbps 19-Inch Rack-Mount Switch - OEM

TP-Link TL-SG1048 48-Port Gigabit Ethernet 1000Mbps 19-Inch Rack-Mount Switch

Network Connectivity: Wired-Ethernet (RJ-45)

RAID Levels: 1+0

Model: TP-LINK TL-SG1048

Network Management Type: Unmanaged

Network Type: ATA over Ethernet

Layer: 1

Country/Region of Manufacture: Vietnam

Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)

Maximum LAN Data Rate: 1000 Mbps/1 Gbps

Type: Ethernet Switch

Item Height: 1.73 Inch

MPN: TL-SG1048

Item Width: 17.32 Inch

Item Length: 8.70 Inch

Number of LAN Ports: 48

Maximum Data Transfer Rate: 96 Gbps

Interface: Ethernet (RJ-45)

Brand: TP-LINK

Product Line: Network Switch

Form Factor: Rack Mountable

Overview:
The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

Features:
Innovative energy-efficient technology saves power up to 18%
100% Data filtering rate eliminates all error packets
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
96Gbps Switching Capacity
Auto MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Support the port N-Way Auto-Negotiation, Store and Forward.
Rack-mountable
Plug and Play design simplifies installation

Specification:
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface: 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity: 2
Power Supply: 100-240VAC, 50/60Hz
Power Consumption: Maximum: 29.8W (220V/50Hz)
Dimensions (W x D x H): 17.32*8.7*1.73 in. (440*220*44 mm)

PERFORMANCE
Switching Capacity: 96Gbps
Packet Forwarding Rate: 71.4Mpps
MAC Address Table: 8K
Buffer Memory:16Mb
Jumbo Frame:10KB
Transfer Method: Store-and-Forward

OTHERS
Certification: FCC, CE, RoHS
Package Contents
48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
