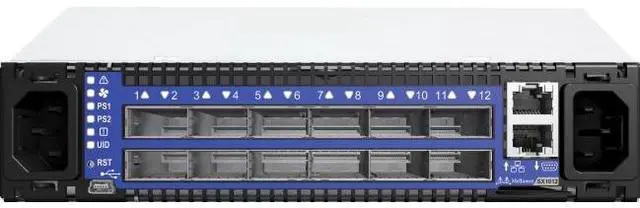

Mellanox SwitchX-2 based 12-port QSFP 40/56GbE 1U Ethernet Switch

Be the first to review this product...
  • MSX1012B2BFS by MELLANOX TECHNOLOGIES
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
General Information
  • The SX1012 switch system provides the highest-performing top-of-rack (ToR) solution in a half-width 1U form factor by delivering up to 1.3Tb/s of non-blocking throughput with 10GbE or 40/56GbE form factor.

    The SX1012 is the ideal top-of-rack (ToR) switch for small pods connecting a small number of servers with 40GbE. Each QSFP port can be used with a passive breakout cable to create four discrete SFP+ interfaces to be used as 10GbE ports, for a total of 48-ports on the smallest form factor 10GbE ToR in the industry.

Interfaces/Ports
  • Token Ring Port: No
  • LRE Port: No
  • Bypass: No
  • Management Port: Yes
  • Port/Expansion Slot Details: 12 x 40 Gigabit Ethernet Expansion Slot

Media & Performance
  • Ethernet Technology: 40 Gigabit Ethernet

I/O Expansions
  • Number of Total Expansion Slots: 12
  • Expansion Slot Type: QSFP

Network & Communication
  • Layer Supported: 3

Management & Protocols
  • Manageable: Yes
  • Management:
    • Web-based Management
    • CLI
    • SNMP v1, v2, v3
    • DHCP
    • Syslog
    • Telnet
    • sFlow
    • QoS
    • VLAN

Power Description
  • PoE (RJ-45) Port: No
  • Input Voltage: 110 V AC
  • Input Voltage: 220 V AC
  • Power Source: Power Supply

Physical Characteristics
  • Compatible Rack Unit: 1U
  • Form Factor: Rack-mountable
  • Height: 1.7"
  • Width: 7.9"
  • Depth: 15.7"
  • Weight (Approximate): 7.05 lb

Miscellaneous
  • Package Contents:
    • SwitchX SX1012 Layer 3 Switch
    • Quick Start Guide
    • Rack Mount Kit
    • AC Power Cord
    • RJ45 Console Cable
    • 2 x Power Supply
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS-6
