IP67 Outdoor Gigabit PoE Passthrough Switch - 1 In 2 Out Extender, IEEE802.3af/at/bt Powered 90W, 10/100/1000Mbps Ethernet, Metal Wall Mount Waterproof Plug and Play
- Gigabit PoE PassthroughInclude 1 PoE In 2 PoE Out Gigabit Ports, 10/100/1000Mbps auto-adaptive rate. Powered by PoE network, no AC power supply required
- IEEE 802.3 af/at/bt Support standard PoE, Input Max 120W(IEEE802.3af/at/bt), Out1 Max 90W(IEEE802.3af/at/bt), Out2 Max 30W(IEEE802.3af/at). PoE Voltage 44-57 Vdc. PoE pin: Input/Out1: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);Out2: 1/2 (+), 3/6 (-)
- Outdoor IP67 Weatherproof Industrial grade aluminum die-casting body, nylon waterproof joint, cable interface all protected in the shell, with better waterproof, dustproof, snowproof effect, more suitable for outdoor use; also suitable for complex indoor environment, such as warehouses, computer rooms, garages, attics, etc.
- Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*.
- Easy Install Support wall mo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

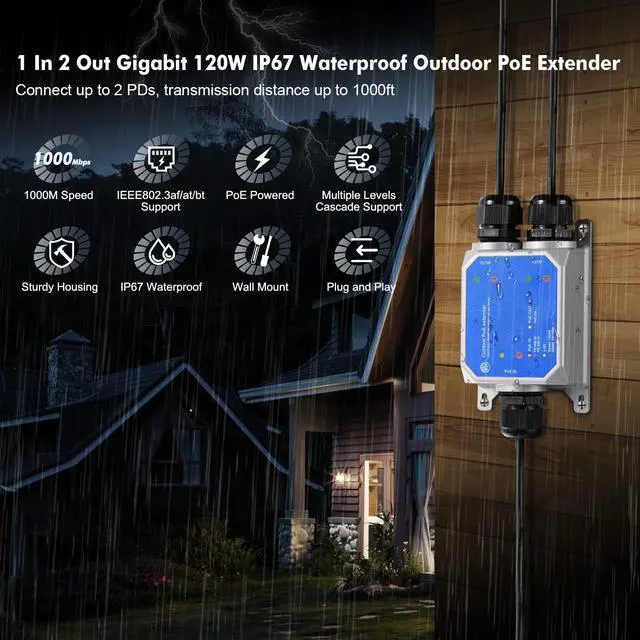

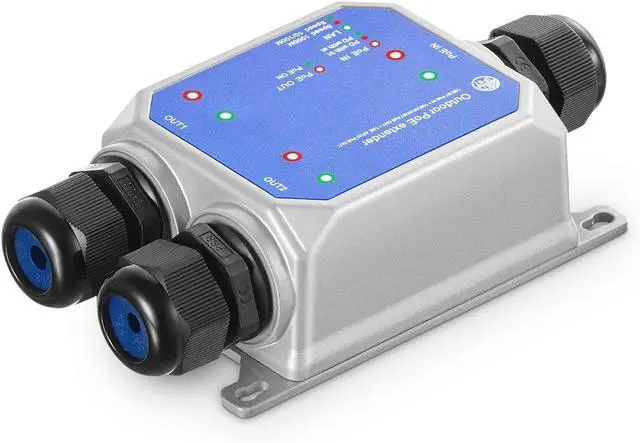

POE-BT102GO is a IP67 double channel gigabit waterproof extender. It is using aluminum alloy die cast body and nylon to break the limitations of application environment. It is easy to manage and maintain, meeting the networking needs of users for network devices in complex outdoor environments.
The extender includes 1x Gigabit PoE in and 2x Gigabit out ports,, with 4Gbps backplane bandwidth, the extender has a strong switching capability for sending data to the destination devices at ultra-high speed. Suitable for high-speed networks.

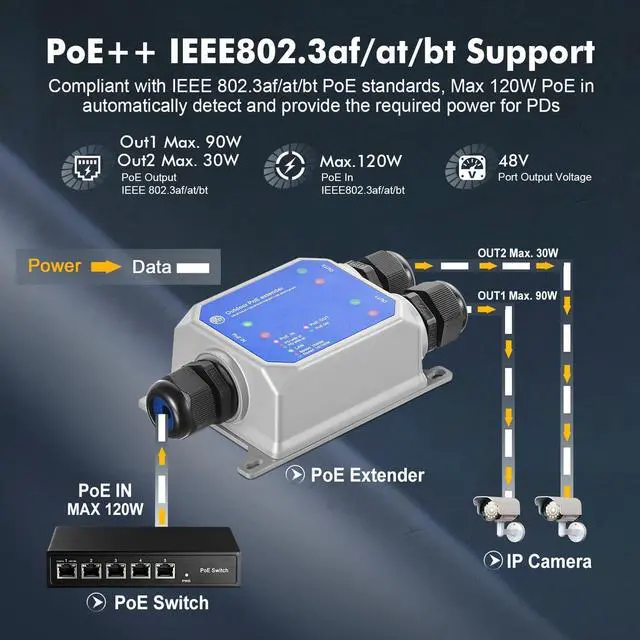

The PoE in port support IEEE802.3af/at/bt(Max. 120W). the PoE out1 port support IEEE802.3af/at/bt(Max. 90W), the PoE out2 port support IEEE802.3af/at(Max. 30W), suitable for various powering PoE-enabled devices.

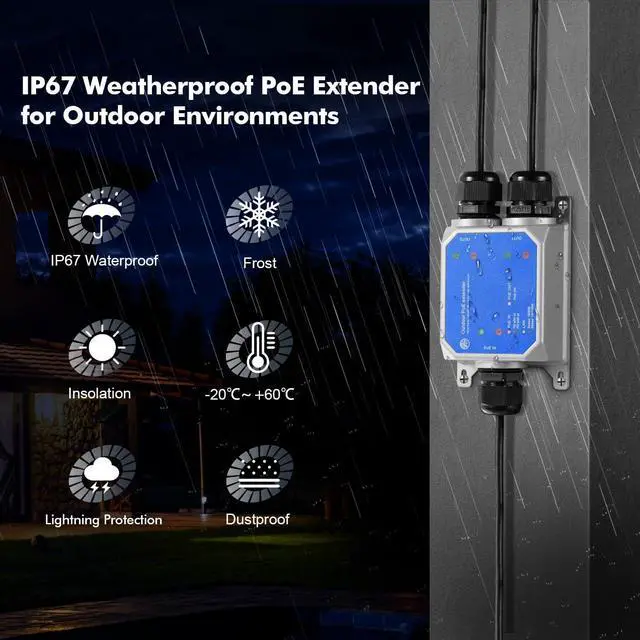

Aluminum die cast body with high-strength lightning protection and IP67 waterproof. Even when used outdoors in harsh weather conditions, It is completely reliable.

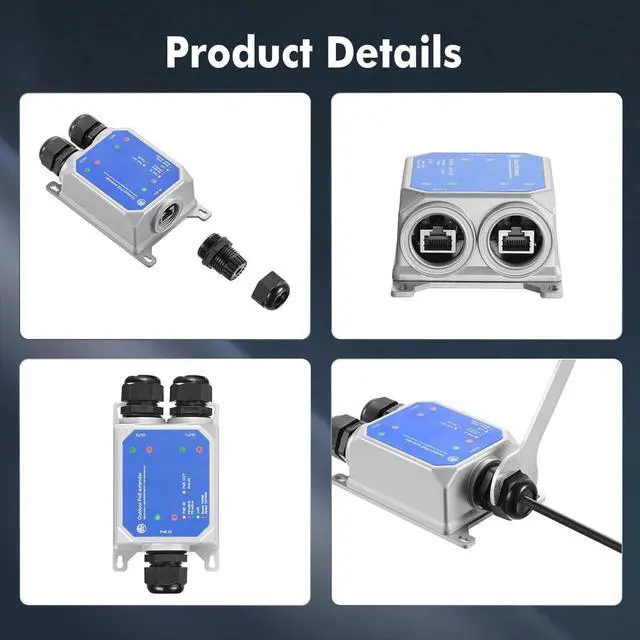

Flexible mount options for desktop or wall-mount in your office and home, meet various network environment requirement.
Adopts the innovative PoE Watchdog technology. It enables the extender to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This effectively reduces manual maintenance costs.

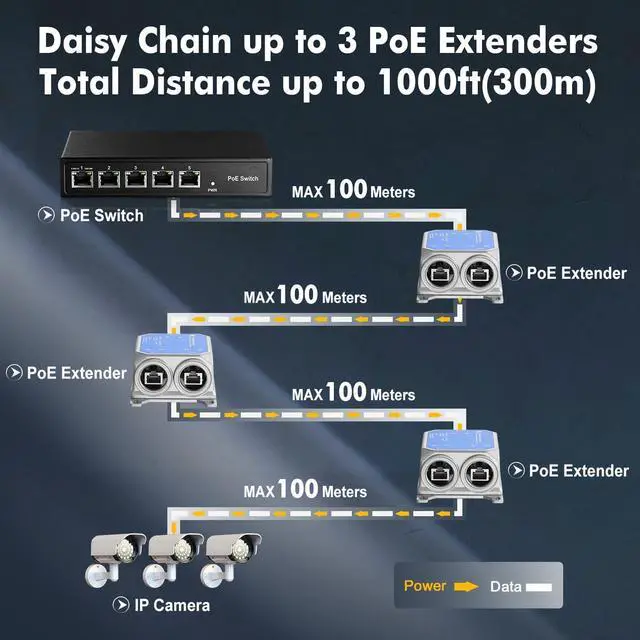

The PoE transmission distance can be extended by multi-level cascading.meeting the requirement of wired transmission.

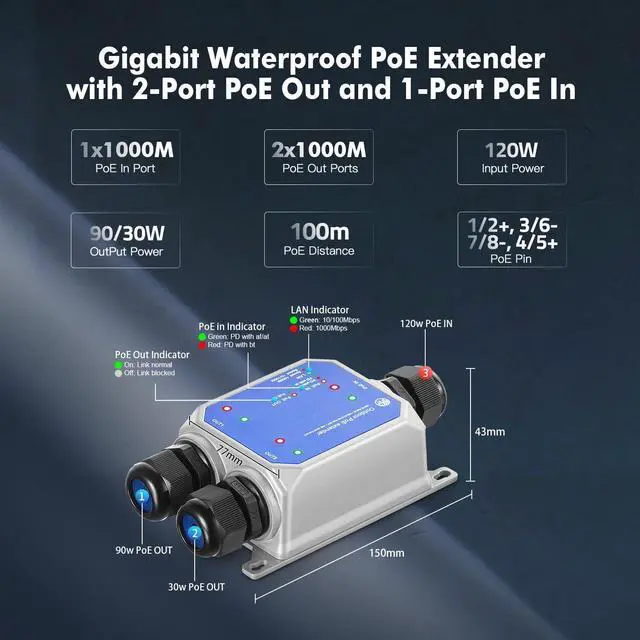

ModelPOE-BT102GOInterface1x1000Mbps PoE IN port + 1x1000Mbps af/at/bt PoE Out Port + 1x1000M af/at PoE out PortNetwork StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x,IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.3adPoE StandardPoE in port support IEEE802.3af/at/bt (Max.120W), PoE out1 port support IEEE802.3af/at/bt (Max.90W), PoE out2 port support IEEE802.3af/at (Max.30W)LED IndicatorPoE in(Green: af/at, Red: bt), PoE Out(Green: Link normal, Off: Link blocked), LAN(Gree: 10/100Mbps, Red: 1000Mbps)MAC Address Table2KPacket Buffer2.5MbitsTransfer ModeStore-and-forwardSwitching Capacity4GbpsPacker Forward Speed2.88MppsLightning Protection 8KV-Air 8KV-ESD, 6KV LightningStructure InformationProduct Dimensions 150*77*43mm, Packaging Dimensions :160*85*47mm, Product Net Weight: 0.27KG, Product Gross Weight: 0.31KG EnvironmentOperating Temperature: -40~80°C, Storage Temperature: -40 °C - 90 °C, Operation Humidity: 5%~90%non condensing, Storage Humidity:5%~95%non condensingInstallationDesktop / Wall-Mount Full Gigabit Ports IEEE 802.3af/at/bt PoE Compliant IP67 Waterproof and 6KV Lightning Protection Mounting flexibility PoE Watchdog Support Long Distance PoE Technical Specifications
The extender includes 1x Gigabit PoE in and 2x Gigabit out ports,, with 4Gbps backplane bandwidth, the extender has a strong switching capability for sending data to the destination devices at ultra-high speed. Suitable for high-speed networks.
The PoE in port support IEEE802.3af/at/bt(Max. 120W). the PoE out1 port support IEEE802.3af/at/bt(Max. 90W), the PoE out2 port support IEEE802.3af/at(Max. 30W), suitable for various powering PoE-enabled devices.
Aluminum die cast body with high-strength lightning protection and IP67 waterproof. Even when used outdoors in harsh weather conditions, It is completely reliable.
Flexible mount options for desktop or wall-mount in your office and home, meet various network environment requirement.
Adopts the innovative PoE Watchdog technology. It enables the extender to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This effectively reduces manual maintenance costs.
The PoE transmission distance can be extended by multi-level cascading.meeting the requirement of wired transmission.
ModelPOE-BT102GOInterface1x1000Mbps PoE IN port + 1x1000Mbps af/at/bt PoE Out Port + 1x1000M af/at PoE out PortNetwork StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x,IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.3adPoE StandardPoE in port support IEEE802.3af/at/bt (Max.120W), PoE out1 port support IEEE802.3af/at/bt (Max.90W), PoE out2 port support IEEE802.3af/at (Max.30W)LED IndicatorPoE in(Green: af/at, Red: bt), PoE Out(Green: Link normal, Off: Link blocked), LAN(Gree: 10/100Mbps, Red: 1000Mbps)MAC Address Table2KPacket Buffer2.5MbitsTransfer ModeStore-and-forwardSwitching Capacity4GbpsPacker Forward Speed2.88MppsLightning Protection 8KV-Air 8KV-ESD, 6KV LightningStructure InformationProduct Dimensions 150*77*43mm, Packaging Dimensions :160*85*47mm, Product Net Weight: 0.27KG, Product Gross Weight: 0.31KG EnvironmentOperating Temperature: -40~80°C, Storage Temperature: -40 °C - 90 °C, Operation Humidity: 5%~90%non condensing, Storage Humidity:5%~95%non condensingInstallationDesktop / Wall-Mount Full Gigabit Ports IEEE 802.3af/at/bt PoE Compliant IP67 Waterproof and 6KV Lightning Protection Mounting flexibility PoE Watchdog Support Long Distance PoE Technical Specifications
