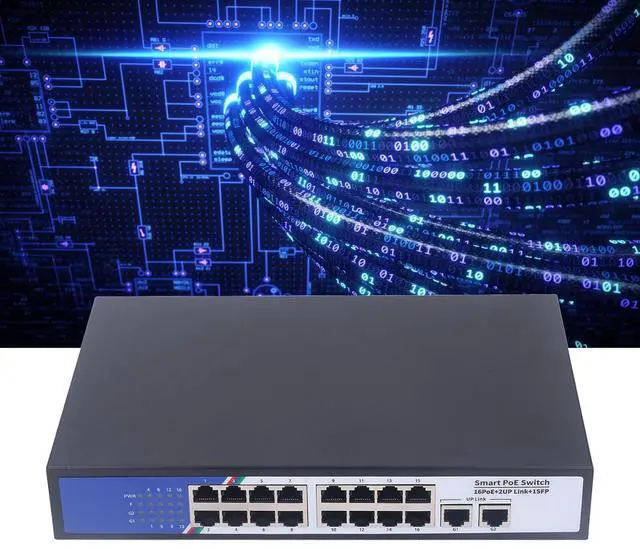

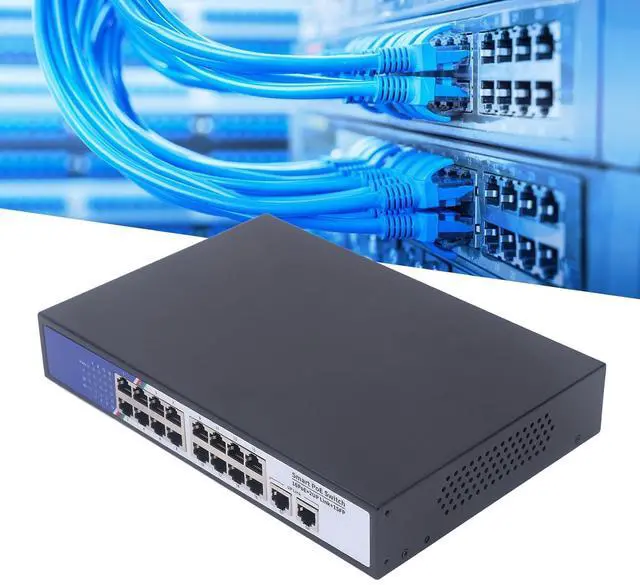

16 Port Ethernet Switch with High Switching Capacity Enhanced Protections Plug and Play Versatile Networking Solution Office Ethernet Splitter (US Plug 100240V)
- [Versatile Networking Solution] This Ethernet switch provides 16 x 10 100M ports and 2 x 10 100 1000M ports, allowing users to flexibly configure their network to meet various networking requirements.
- [Plug and Play] This switch is plug and play, requiring no configuration. Simply connect the power cord and Ethernet cables to your devices, and you can easily start using it without any hassle.
- [Enhanced ] This network switch offers 4KV and supports short circuit and overload for , also provides temperature and overvoltage for the power supply, ensuring and
- [High Switching Capacity] With a switching capacity of 7.2Gbps, this Ethernet network switch provides fast and efficient data transfer, allowing for seamless communication across your network.
- [Wide Applications] Suitable for use in homes, dormitories, hotels, offices, and more, this switch is compatible with various devices such as computers, printers, network cameras, and more.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Ethernet Switch
Material: ABS
Model: ZX G16F02GN
Voltage: 100-240V
Standard Protocol: IEEE 802.3af at 16 x 10 100M + 2 x 10 100 1000M Uplink
Chip Solution: RTL8367S + RTL8324E
Standards Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network Medium:
10BASE T: Unshielded Cat3, Cat4, Cat5 twisted pair (maximum 100m)
100BASE TX 100BASE T: Over unshielded Cat5, Cat5e twisted pair (maximum 100m)
1000BASE TX 1000BASE T: Over Cat6e twisted pair (maximum 100m)
Fixed Port: 16 x 10 100 Base TX Ethernet Port (Data/Power), 2 x 10 100 1000 Base T Ethernet Port (Data)
Forwarding Mode: Store and forward
Media Access Control Address Table: 4K
Switching Capacity: 7.2Gbps
Packet Forwarding Rate: 5.36Mpps
Port Lightnings Protections: ?4KV
Indicator Light:
Each Unit:
Power System (Power: Green light) is connected to the load, the indicator light status is always on
Each Port:
Link Activity (Link Act: Green light) is connected to the load, the indicator light status is flashing
Power Supply: 1-16 ports compatible with 802.3af at power supply (1/2)+, (3/6)-
Port Features:
OFF: Normal mode. All ports can communicate with each other and can be used as ordinary unmanaged switches
ON: Extended mode. The longest distance of the switch is 250 meters
Operating Temperature: -10? to 70? (32? to 127?)
Storage Temperature: -40? to 85? (-97? to 142?)
Operating Humidity: 10% to 90% non condensing
Storage Humidity: 5% to 95% non condensing
How to Use:
Just follow the instructions in the user manual to operate the product.

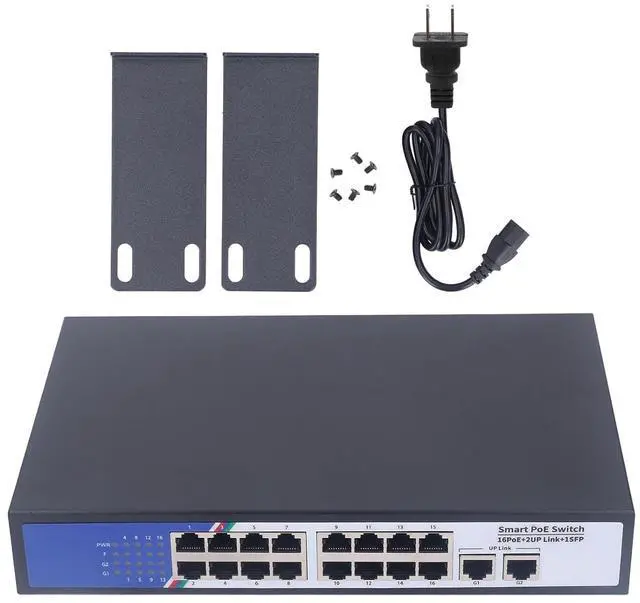

Package List:
1 x Ethernet Switch
1 x Power Adapter
1 x User Manual
6 x Screws
2 x Accessories
Item Type: Ethernet Switch
Material: ABS
Model: ZX G16F02GN
Voltage: 100-240V
Standard Protocol: IEEE 802.3af at 16 x 10 100M + 2 x 10 100 1000M Uplink
Chip Solution: RTL8367S + RTL8324E
Standards Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network Medium:
10BASE T: Unshielded Cat3, Cat4, Cat5 twisted pair (maximum 100m)
100BASE TX 100BASE T: Over unshielded Cat5, Cat5e twisted pair (maximum 100m)
1000BASE TX 1000BASE T: Over Cat6e twisted pair (maximum 100m)
Fixed Port: 16 x 10 100 Base TX Ethernet Port (Data/Power), 2 x 10 100 1000 Base T Ethernet Port (Data)
Forwarding Mode: Store and forward
Media Access Control Address Table: 4K
Switching Capacity: 7.2Gbps
Packet Forwarding Rate: 5.36Mpps
Port Lightnings Protections: ?4KV
Indicator Light:
Each Unit:
Power System (Power: Green light) is connected to the load, the indicator light status is always on
Each Port:
Link Activity (Link Act: Green light) is connected to the load, the indicator light status is flashing
Power Supply: 1-16 ports compatible with 802.3af at power supply (1/2)+, (3/6)-
Port Features:
OFF: Normal mode. All ports can communicate with each other and can be used as ordinary unmanaged switches
ON: Extended mode. The longest distance of the switch is 250 meters
Operating Temperature: -10? to 70? (32? to 127?)
Storage Temperature: -40? to 85? (-97? to 142?)
Operating Humidity: 10% to 90% non condensing
Storage Humidity: 5% to 95% non condensing
How to Use:
Just follow the instructions in the user manual to operate the product.
Package List:
1 x Ethernet Switch
1 x Power Adapter
1 x User Manual
6 x Screws
2 x Accessories
