ANNKE H.265+ 8CH 6MP NVR PoE Security Camera System, 4PCS 6MP Dual-Lens 180°IP Camera, Smart Motion Detection, Remote Access, Panoramic infrared sound and light alarm AI, Human & Vehicle Detection

Description:

NVR:

"· 6MP high definition Real-time live viewing, recording&playback

· Up to 8 channel IP camera connectable with built-in PoE inputs

· Advanced H.265+ compression effectively reduces the storage space by up to 75%

· Smart playback to improve the playback efficiency

· Supports iPhoneiPadAndroid mobile remote monitoring

· Annke vision for easy remote monitoring

Video & Audio:

Video Compression: H.265+/H.265/ H.264+/H.264

IP Video Input: 8CH POE

Video Output: HDMI & VGA Up to 1080P

Incoming bandwidth: 60M

Max Recording Resolution: Up to 6MP

Max Playback Resolution: Up to 6MP

Max Playback Channel: 8CH

Max Playback Capacity: 4-ch@1080P, 1-ch@6MP@25fps

Onvif Protocols: Support

Hard Drive:

HDD: 1 SATA interface

HDD Capacity: Up to 6TB capacity

General:

Operating Power: DC48V

Power Consumption: 10W(without HDD and POE)

POE: Max 25.5W for single port

Working Temperature: 14 °F ~ 131 °F /-10 °C ~+55 °C

Dimensions(W x H x D): 10.4" × 8.9" × 1.9" / 265 × 225 × 48mm

Weight (without hard disk): 2.2lb / 1KG

IP Camera:

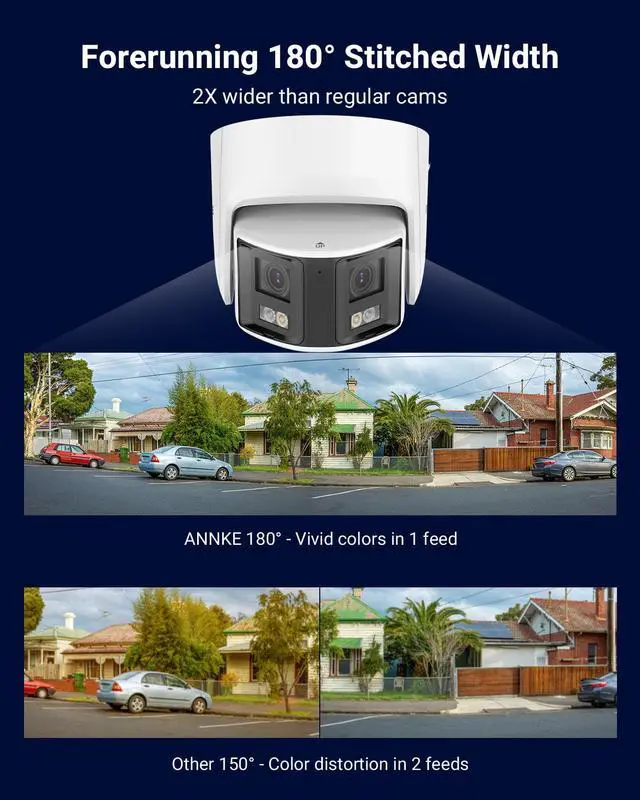

" 6 MP Panoramic 180°Fixed Turret Network Camera

One image that presents all the scenes covered by the camera

Efficient H.265+ compression technology

Clear imaging against strong back light due to 120 dB WDR technology

Focus on human and vehicle classification based on deep learning

Audio alarm to warn intruders off

White light up to 20 m, IR light up to 30m

Water and dust resistant (IP66)

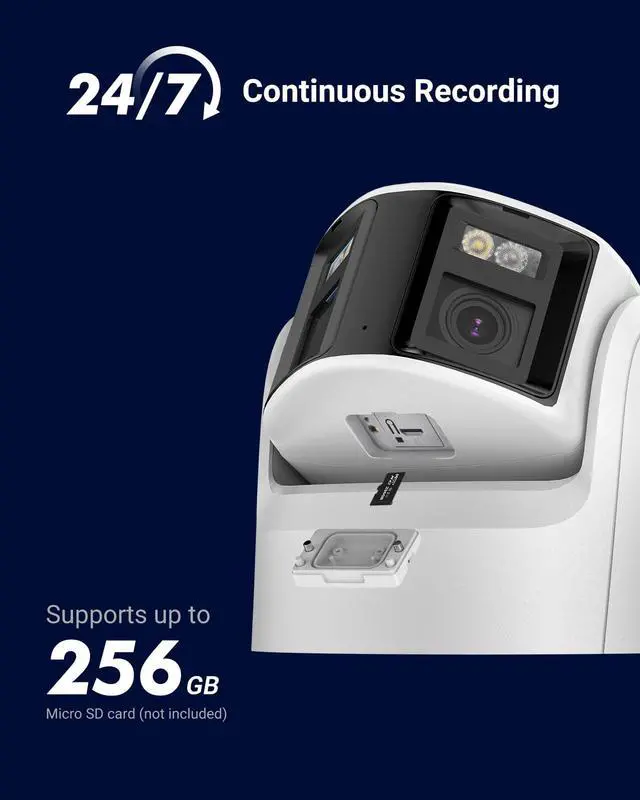

Support 256 GB TF storage space

Two way audio"

Camera:

Image sensor: 2×1/2.5" Progressive Scan CMOS

Main Stream: "50 Hz: 20 fps (3632 × 1632)

60 Hz: 20 fps (3632 × 1632) "

Sub Stream: "50 Hz:20 fps(1200 × 536,960 × 432)

60 Hz:20 fps(1200 × 536,960 × 432)"

Video compression: "Main Stream: H.265+/H.265/H.264+/H.264

Sub Stream: H.265/H.264/MJPEG"

Video Bit Rate: 32 Kbps to 16 Mbps

Built-in Microphone: Yes, support environment noise filtering

Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Built-in Speaker: Yes, max. sound pressure: 10 cm: 95 dB

Lens: Dual lens: 2.8 mm

Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR

Angle of View: Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10°

Supplement Light: White light + IR

Supplement Light Range: White light up to 20 m, IR light up to 30m

Image Parameters Switch: Yes

Image Enhancement: BLC, HLC, 3D DNR

Wide Dynamic Range: 120dB WDR

Network Protocols: TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket,Onvif

Basic Event: Motion detection (support human and vehicle detection), video tampering

Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection)

Audio Alarm: Support(Parameters adjustable,support custom audio, can be triggered from APP)

General:

Housing: Plastic, White color

Operating Power: PoE (802.3af),12 VDC ± 25%,Ø 5.5 mm coaxial power plug

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR

DC12V output: DC12 V,100 mA output

Hardware Reset: Yes

Operating Temperature: -22 °F 140 °F /-30 °C 60 °C

Indoor/Outdoor: Indoor/Outdoor

Weatherproof Rating: IP66

Dimension (L x W x H): 138.1 × 101.1 × 120.4 mm

Weight: Approx. 600 g (1.32 lb.)
