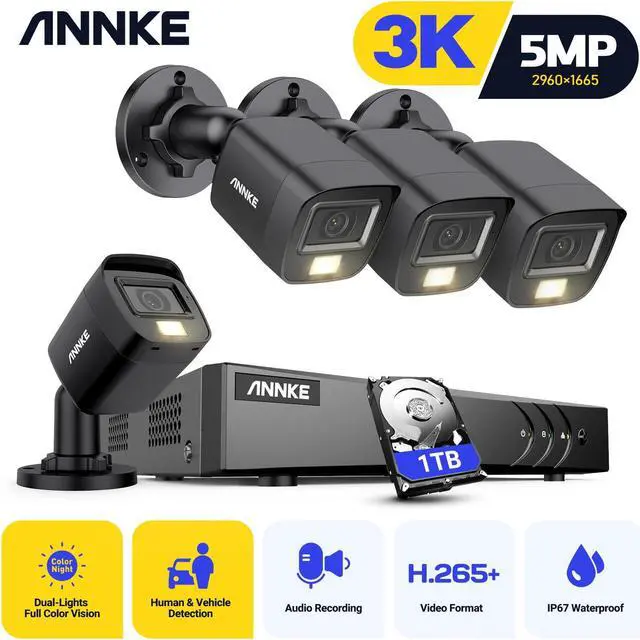

ANNKE 3K Security Camera System with Smart Dual Light, 8CH 3K Lite H.265+ Surveillance DVR with AI Human/Vehicle Detection, 4 x IP67 CCTV 3K 5MP Camera with Mic/Audio, Color Night Vision, 1TB HDD

Description:

DVR

""· Up to 3K high definition live viewing


· Up to 3K Lite recording & playback

· Advanced H.265 Pro+ Video Compression

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1

· Supports iPhoneiPadAndroid mobile remote monitoring

· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels

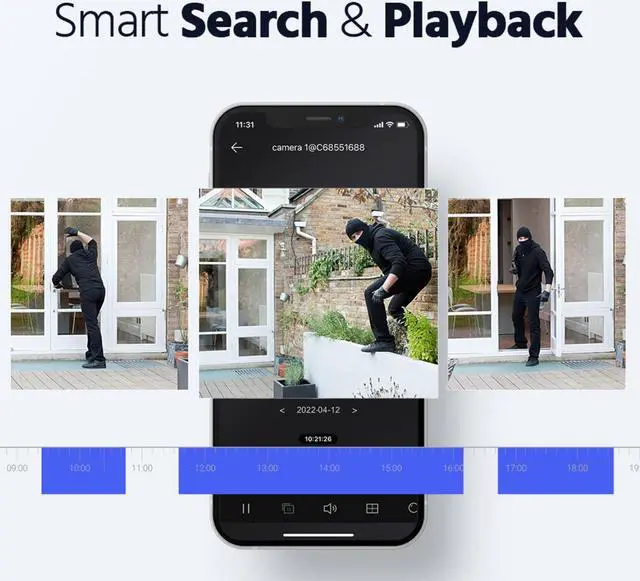

· Quick search by object or event type

· Audio via coaxial cable""

Video & Audio:

Video Compression: H.264+/H.264/H.265/H.265 Pro+

Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)

Video Output: HDMI and VGA Up to 1080P

Audio Input: 1-ch RCA,  8-ch via coaxial cable

Audio Output: 1-ch RCA

Supported Camera Types: ""Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;

Support AHD Input: 5MP(20FPS)4MP, 1080p, 720P;

Support CVI Input: 5MP(20FPS),4MP, 1080p, 720P;

Support CVBS Input;

Support IP Video Input:6MP/5MP/4MP/3MP/1080P/720P""

Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps

IPC Playback Resolution: Up to 6MP

Max Playback Channel: 8-ch

Network Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS

Total Bandwidth: 96Mbps

Remote Connection: 64

Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm

Hard Drive:

HDD: 1 SATA interface

HDD Capacity: Up to 10TB capacity

General:

Operating Power: DC12V, 12W (without HDD)

Working Temperature: -14 °F 131 °F /-10 °C 55 °C

Dimensions(W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight (without hard disk): 1 kg (2.2 lb)(without HDD)

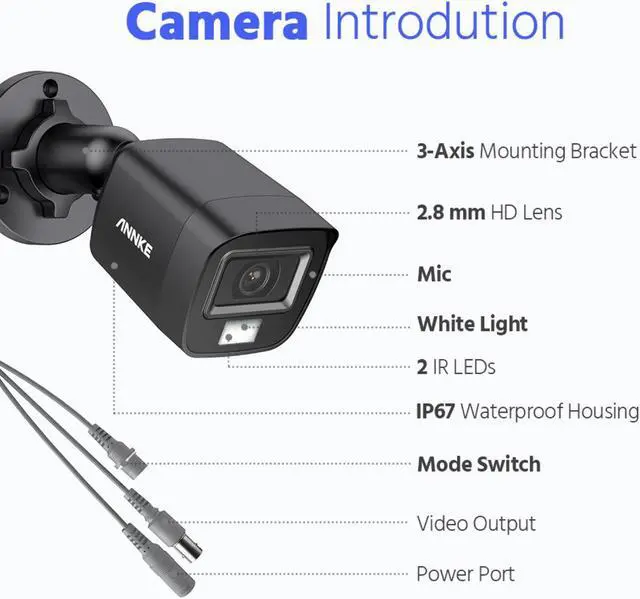

Analog HD Camera

""High quality imaging with 3K, 2960 × 1665 resolution

2.8 mm fixed focal [email protected]

High quality audio with audio over coaxial cable, built-in mic

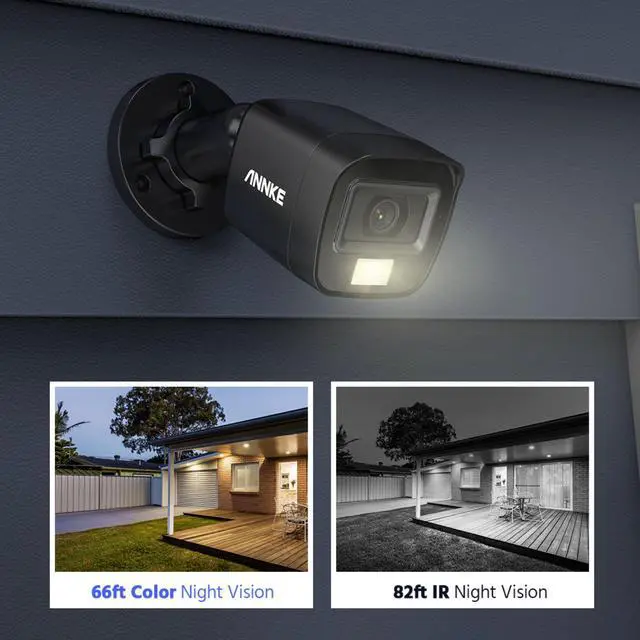

Up to 25 m IR distance for bright night imaging

Up to 20 m white light distance for bright night imaging

One port for four switchable signals (TVI/AHD/CVI/CVBS)

Water and dust resistant (IP67) ""

Camera:

Image sensor: 3K CMOS Image sensor

Video Resolution: 2960 (H) × 1665 (V)  (16:9)

Signal System: PAL/NTSC

Frame Rate: ""TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps

AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps

CVI: 4 MP@25 fps/30 fps

CVBS: PAL/NTSC""

Lens: 2.8mm

Min.Illumination: Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Angle of View: Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°

Supplement Light type: 1 white Light & 2 EXIR

Supplement Light Range: IR : Up to 25 m, white Light : Up to 20 m

Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.

Wide Dynamic Range: Digital WDR

Audio: Built-in mic

IR Cut Filter: Yes

Video Output: BNC, switchable TVI/AHD/CVI/CVBS

General:

Housing: Plastic

Color: Black

Operating Power: 12 VDC ± 25%

Consumption: Max. 2.9 W

Operating Temperature: -40 °F 140 °F /-40 °C 60 °C

Indoor/Outdoor: Indoor/Outdoor

Weatherproof Rating: IP67

Dimension (L x W x H): 138.8 mm × 60.9 mm × 57.9 mm (5.47"" × 2.4 "" × 2.3"")

Weight: Approx. 155 g (0.34 lb.)
