CCTV Camera Tester 7" IPS Touch Screen 6K 12mp IP Camera Tester 8mp CVI TVI AHD SDI CVBS Analog Camera Tester Built in WiFi with POE/RJ45 Cable TDR Test/PTZ Control/HDMI I/O IPC Teste

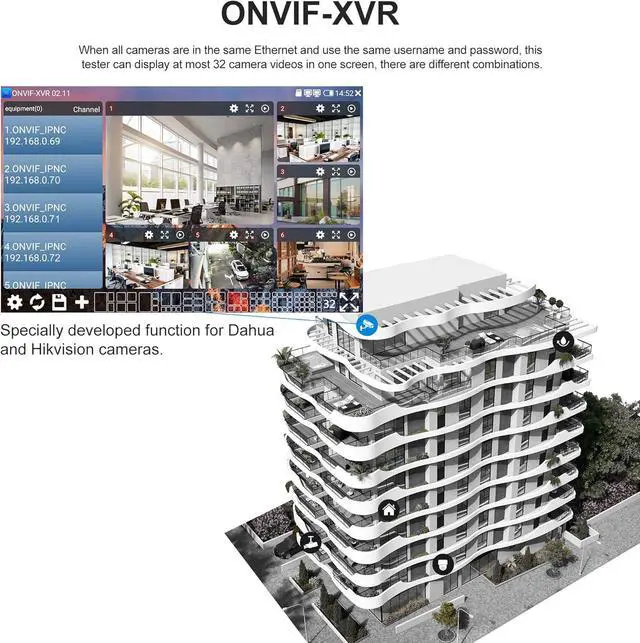

Network Camera Tester:RAINLEOTI IP camera tester supports up to 6K 32MP IP POE camera testing. IP detection, fast recording, RTSP playback, IPC testing, automatic video viewing, and test report generation. Powerful network tools to help you detect and set various network parameters. Supports UTP network cable test, POE test, RJ45 TDR network cable test. RAINLEOTI's portable and high-precision CCTV camera tester ensures the efficiency and convenience of your work.

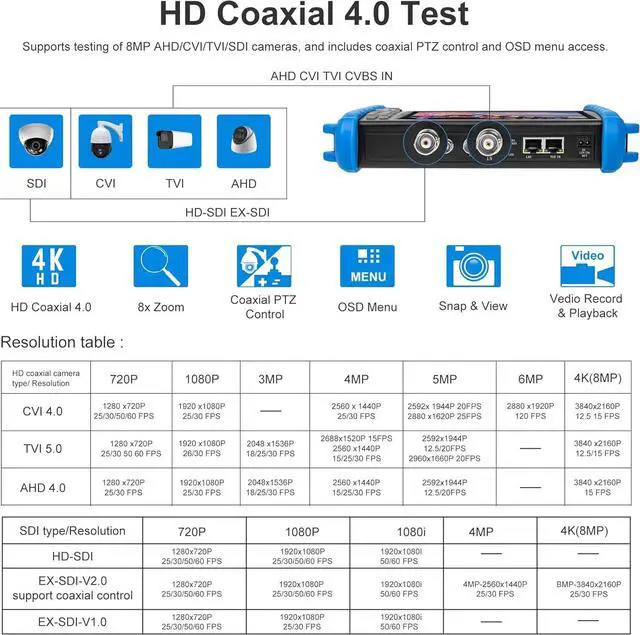

Coaxial Camera Tester: RAINLEOTI IPC tester with POE support, can support testing up to 8MP SDI/AHD/TVI/CVI/CVBS cameras. Support 1 channel BNC input, PAL/NTSC (adaptive).Support UTC PTZ control and call OSD menu, menu settings, screenshots, video recording, video playback, etc. RS485 control, compatible with 29 protocols such as PELCO-D/P.

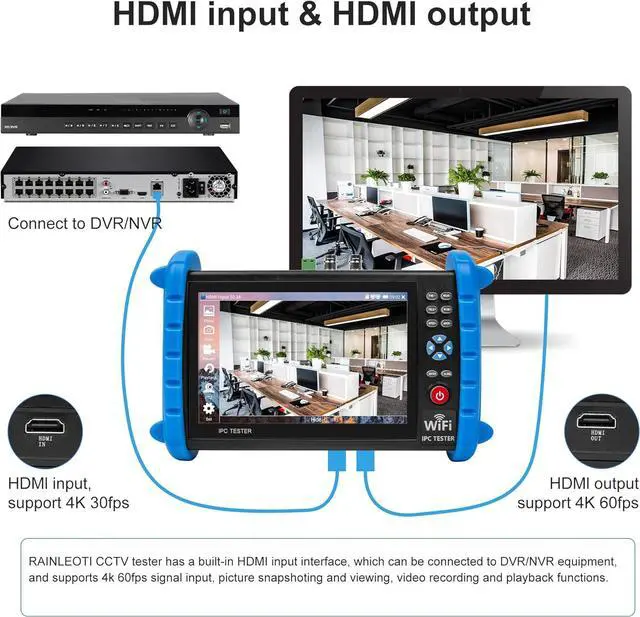

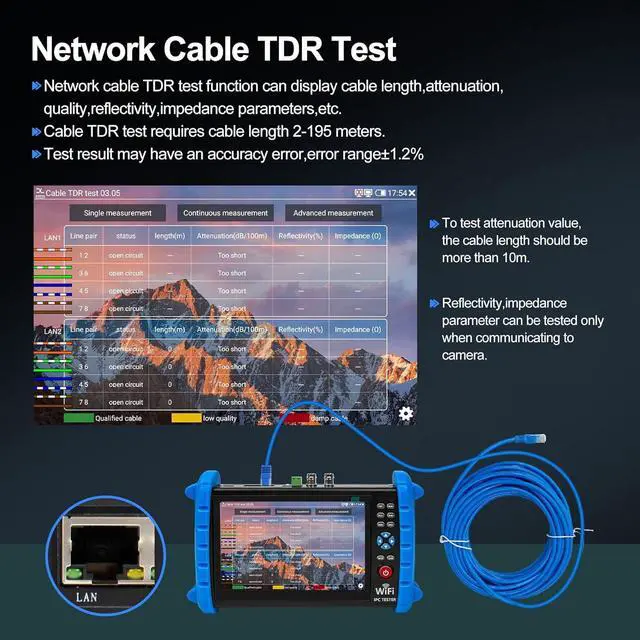

Professional testing tool:RAINLEOTI IPC Tester is a powerful network tool with full functions, supporting IP detection, PING test, network port flashing, one-click video, POE, UTP cable testing. RJ45 TDR cable The test can test network cable length, attenuation, quality, reflectivity, impedance, skew and other parameters, with a measurement range of 195 meters. Security IP Camera Tester is also equipped with HDMI input and output interfaces. 5 power management methods, POE48V output, 24V/1A output , 12V/3A output, USB 5V/2A output and DC12V/2A input.

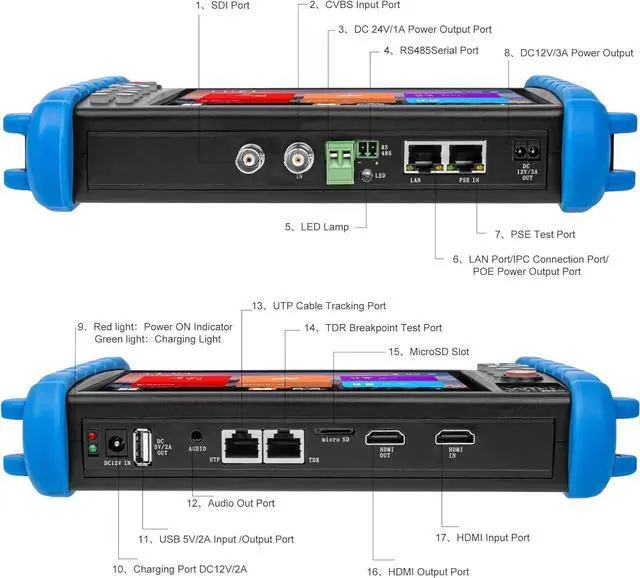

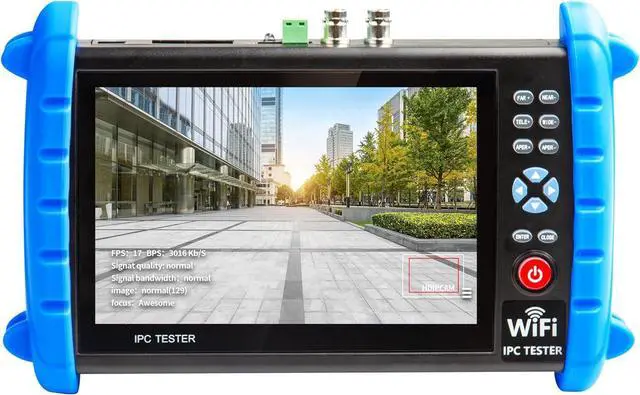

More parameters:IP camera tester is equipped with a 7-inch IPS touch screen, 1920*1200 resolution. Built-in 7.4V/7000mAh battery. Ethernet port 10/100/1000Mbps, support RS485; audio input test; HDMI Outpt; built-in wireless WiFi; DC output: 24V/1A, 12V/3A, 5V/2A; LED light; configuration upgrade center, you can do it here Manage, install and uninstall APP and other operations. CVBS Cemera Tester Dimensions/Net Weight 9.06x 5.51x 1.77 inches/0.9 kg (1.98 lbs).
Quality Service:RAINLEOTI cooperates with a manufacturer that specializes in R&D and production of IPC Tester to jointly launch this basic Security IP Camera Tester. We will continue to launch optimized and upgraded models in the future, so stay tuned! If this product has quality problems under normal use without manual damage, it will be guaranteed for free within one year. If you have any usage or technical questions about this product, please feel free to contact us, we will serve you wholeheartedly and guarantee that your problem will be solved within 24 hours!

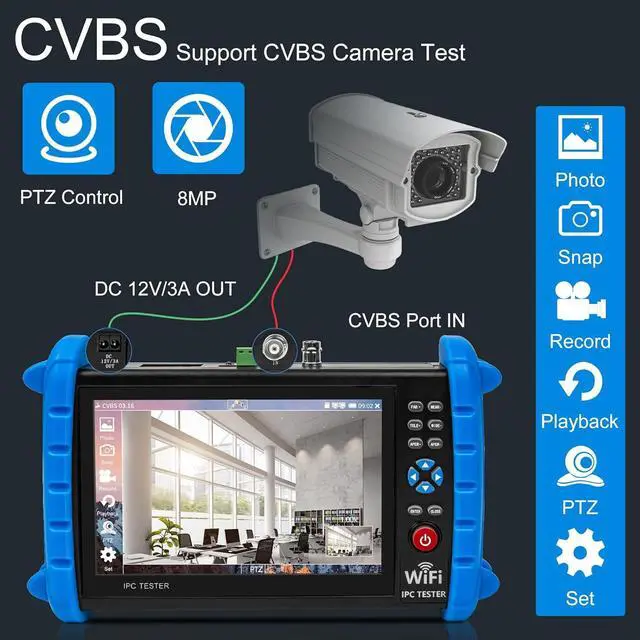

!!!!!!!NOTE!!!! The "IP+COAXIAL CAMERA TESTER" type cctv tester not only includes the basic CVBS function but also supports AHD/CVI/SDI coaxial HD capabilities, with a maximum resolution of 8MP.
