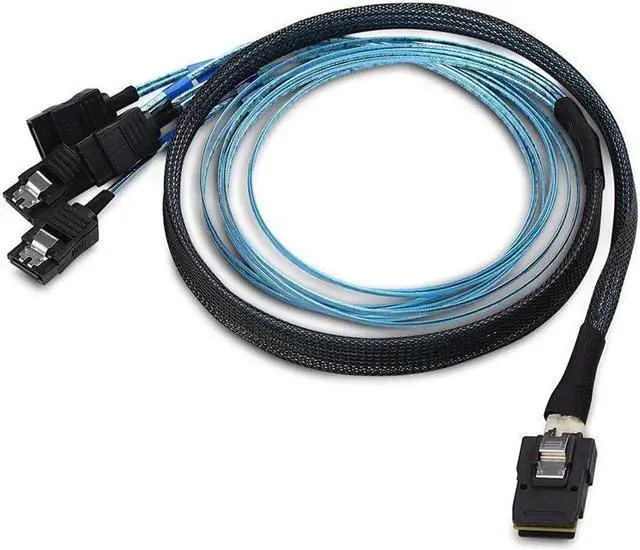

Aomoproing Internal Mini SAS to SATA Reverse Breakout Cable, SFF-8087 to SATA, 1.6 Feet Length

Internal Mini SAS to SATA Reverse Breakout Cable (SFF-8087 to SATA) 1.6

Feet Item Condition: New

Brand: cable matters

Manufacturer: Cable

Matters Item model number: 104027- 0.5 m

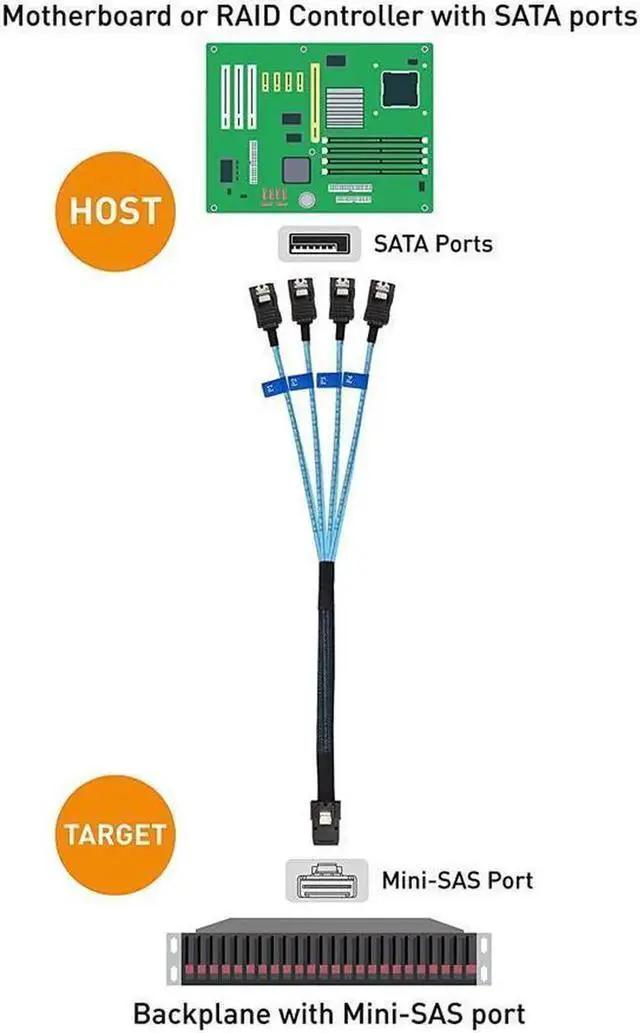

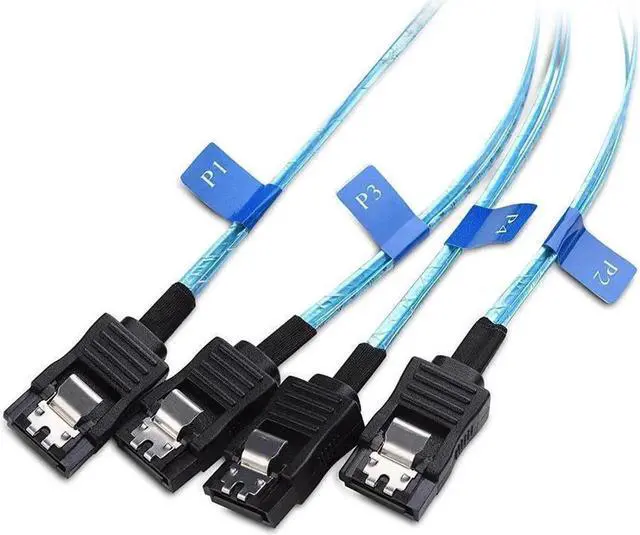

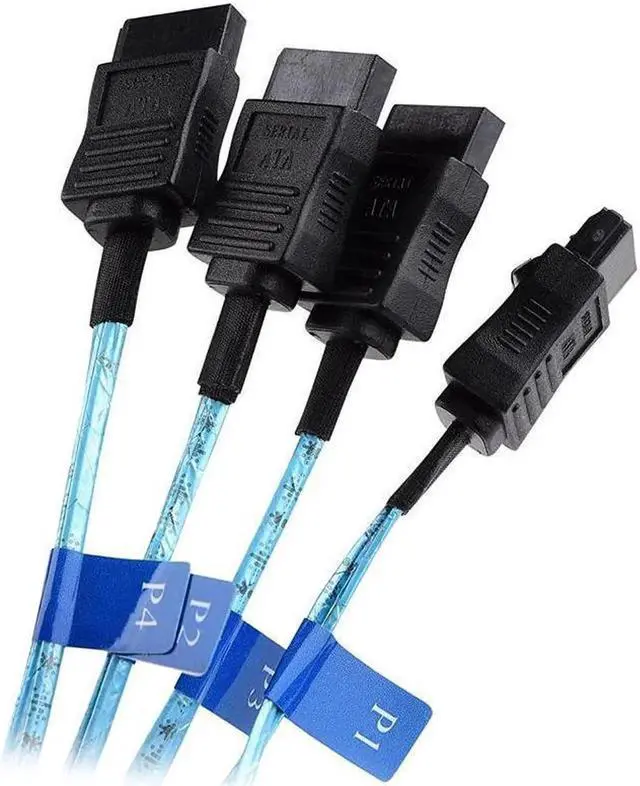

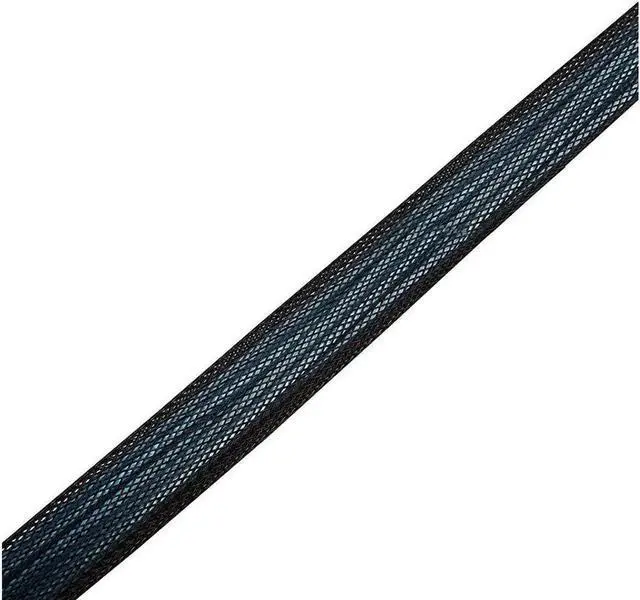

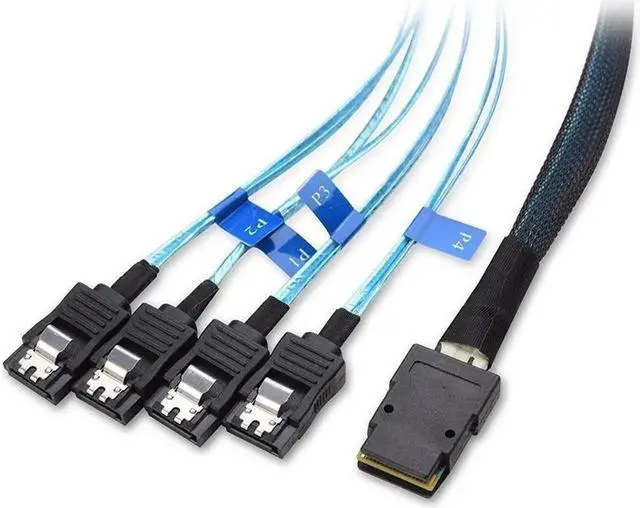

Size: 1.6 Feet Product Information - INTERNAL 4x SATA TO MINI SAS date cable connects a motherboard or RAID controller with 7 pin SATA ports to a SAS backplane or SAS expander with a Mini-SAS port; Reverse breakout cable provides reliable internal connectivity between a Mini-SAS drive cage and a SATA motherboard or RAID card - REVERSE FANOUT CABLE has an SFF-8087 (TARGET) Mini-SAS connector and 4 x SATA 7 pin (HOST) drive connectors; 4 x discrete SATA drive cables are of equal length with latches to provide a secure connection - LEVERAGE RAID CONTROLLER PERFORMANCE with this multi-lane cable that connects unused RAID controller SATA ports to a single SFF 8087 Mini SAS backplane port; Supports up to 6 Gbps data transfer rate per drive - FLEXIBLE DESIGN of SATA to SAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration disconnections - DIY OR PRO INSTALLERS both appreciate a multilane cable that provides high performance SATA controller to SAS backplane connectivity; Slim ribbon cables minimize airflow impact in a computer case Connect More with Cable Matters SAS & SATA Cabling Products Reverse Not Forward The Cable Matters Mini-SAS to 4x SATA Reverse Breakout Cable connects 4 discrete SATA ports on a RAID controller host to a Mini-SAS SFF-8087 multi-lane port on a backplane.

It should not to be confused with a forward cable that functions in the opposite direction. Multi-Lane Performance with a Lifetime Warranty Maximize the capacity of your unused RAID controller SATA ports with this robust but flexible cable that is built to withstand 24/7 use. The combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on the airflow in a computer case. A lifetime warranty is included with this cost-effective cable for peace of mind when purchasing. Important Notes - This is NOT a FORWARD breakout cable - Pair with a 4 port SATA to Power Splitter Cable to provide power to the drives - Data transfer speed is determined by the capabilities of your SAS controller and SATA drives Cable Specifications -

Host/Controller Connections: 4 x 7 pin SATA receptacle female with latch -

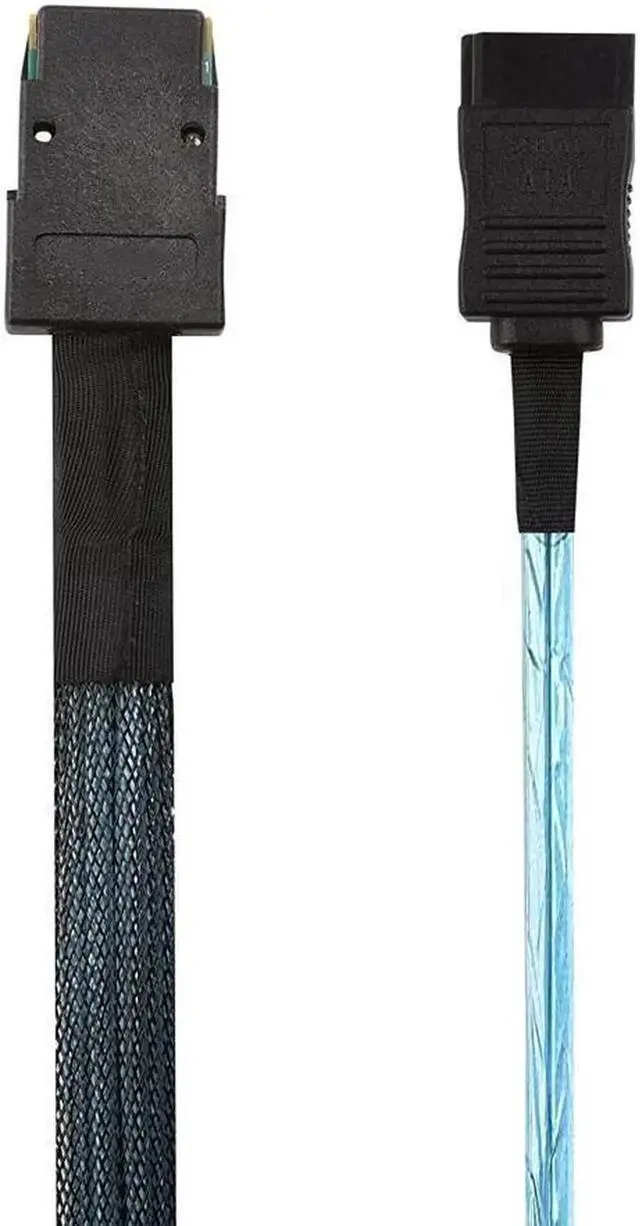

Target/Mini-SAS Backplane Connection: 1 x 36 pin Mini-SAS SFF-8087 male with latch - Wire 30 AWG - RoHS compliant
