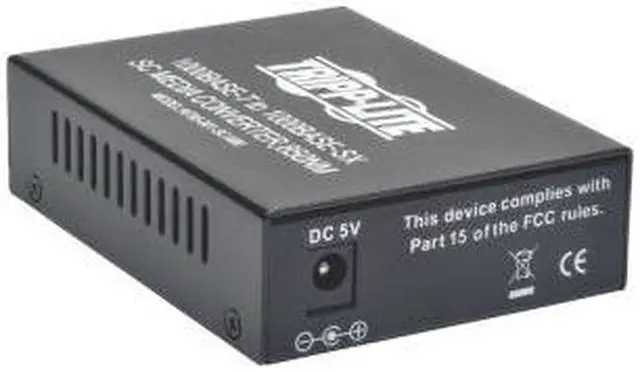

TRIPP LITE N785-001-SC-MM SC Multimode Fiber Media Converter Gigabit 10/100/1000 RJ45 550M 850nm - 1 x Network (RJ-45) - 10/100/1000Base-T, 1000Base-SX - Desktop

TRIPP LITE N785-001-SC-MM SC Multimode Fiber Media Converter Gigabit 10/100/1000 RJ45 550M 850nm - 1 x Network (RJ-45) - 10/100/1000Base-T, 1000Base-SX - Desktop
Manufacturer/Supplier: Tripp Lite

Marketing Information: Tripp Lites N785-001-SC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.

Package Contents:

10/100/1000 SC Multimode Media Converter, 550M, 850nm

AC Power Adapter

User Manual

Product Model: N785-001-SC-MM

Product Name: 10/100/1000 SC Multimode Media Converter, 550M, 850nm

Product Type: Transceiver/Media Converter

Interfaces/Ports

DVI: No

Digital Audio/Video: No

Digital Audio: No

Ethernet Technology: Gigabit Ethernet

Management Port: No

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

Number of SC Ports: 1

Parallel Port: No

Total Number of Ports: 2

USB: No

Media and Performance

Ethernet Technology: Gigabit Ethernet

Fiber Mode Supported: Multi-mode

Fiber Optic Wavelength: 850 nm

Maximum Distance Supported: 1804.46 ft

Media Type Supported: Optical Fiber

Media Type Supported: Twisted Pair

Network Technology: 10/100/1000Base-T

Network Technology: 1000Base-SX

Miscellaneous

Certifications and Standards:

FCC

CE

Form Factor: Desktop

Green Compliance Certificate/Authority: WEEE

Green Compliant: Yes

Limited Warranty: 1 Year

Package Contents:

10/100/1000 SC Multimode Media Converter, 550M, 850nm

AC Power Adapter

User Manual

USB: No

Network and Communication

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

Network Technology: 1000Base-SX

Network

Network Technology: 10/100/1000Base-T

Network Technology: 1000Base-SX

Physical Characteristics

Color: Black

Depth: 2.8"

Form Factor: Desktop

Height: 1"

Weight (Approximate): 1 lb

Width: 4.7"

Power Description

Input Voltage: 5 V DC

Product Information

Form Factor: Desktop

Width: 4.7"

Technical Information

Ethernet Technology: Gigabit Ethernet

Input Voltage: 5 V DC

USB: No

Warranty

Limited Warranty: 1 Year
MPN:N785-001-SC-MM
037332184146
