XSPC TX360 Crossflow Ultra Thin Triple Fan Radiator - 360mm

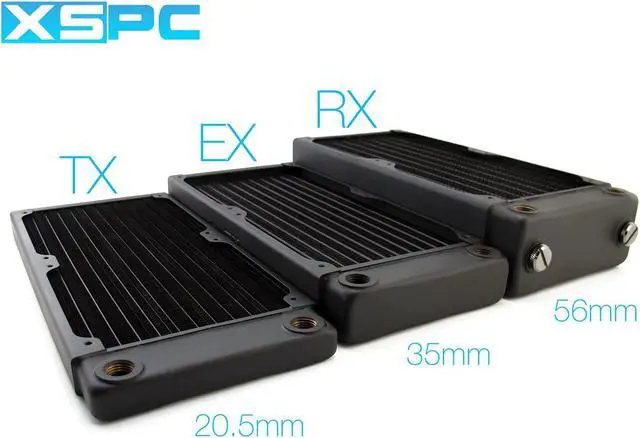

The XSPC TX is the worlds thinnest PC radiator. At just over 20mm thick, it's 20% thinner than a standard 120mm fan and over 40% thinner than our EX series radiators.
Despite its size, the TX series offers both excellent performance and low flow restriction. This comes from the high performance copper and brass core, which features welded seam tubes and high density splitter fins. We further enhansed performance by designing fins which protrude past the tubes. This allowed us to increase the cooling surface area without increasing the external dimensions. With 13 tubes and 22 fins per inch it's the highest density core XSPC have ever released, but due to the thinness of the core it still performs with low speed fans.
The TX series is ideal for any build where space is at a premium.
Crossflow radiators allow for easier tubing routing in some PC builds. Our selectable crossflow design allows you to choose the most suitable inlet and outlet positions for your build.
Copper and Brass Core
H90 Copper Tubes, Copper Fins, Brass End Tanks
Matte Black Paint Finish
RoHS Compliant

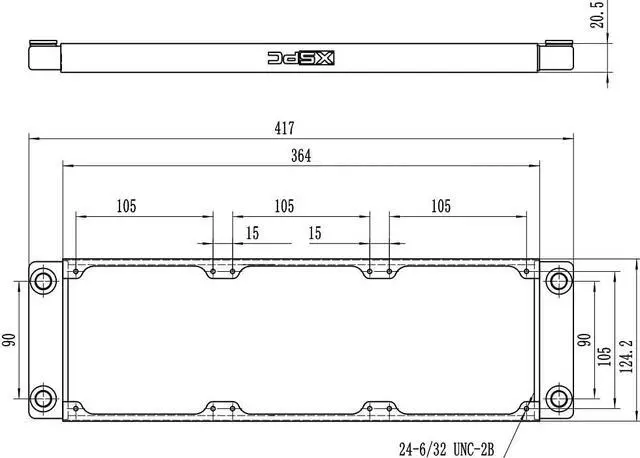

Dimensions: 125 x 20.5 x 417mm (WxDxH)+-0.5mm
16mm Core
22 FPI (fins per inch)
13 Tubes (13x1.5mm)
Weight: ~860g
Coolant Capacity: 150ml
Ports: G1/4″
Screws: 6-32 UNC
Fans: 3 x 120mm (6x with push/pull)
Supplied with two G1/4" plugs, 30mm and 6mm 6-32 UNC screws
Model: 5060596650619
