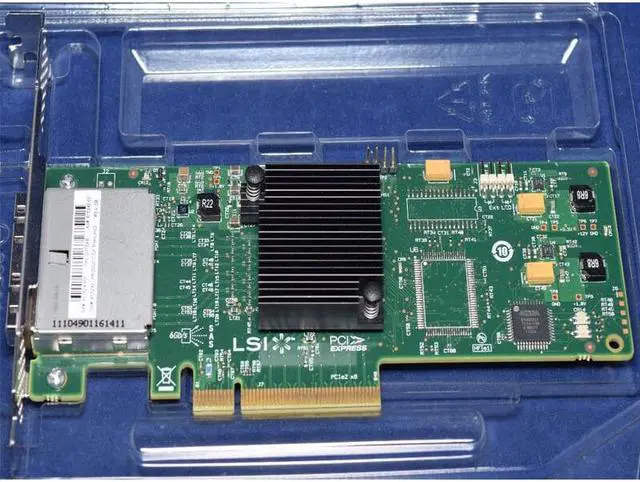

LSI SAS9200-8E Dual Port External SAS/SATA 6Gbps IT Mode ZFS FreeNAS unRAID
- Dell 6Gbps SAS HBA
- Specification 6Gbps SAS HBA
- SAS technology Yes
- Support for x8, or x8 Full-Size PCI Express Host Interface Yes
- Form Factor Half-Size, Half-Length PCI Adapter
- I/O controller (IOC) LSI SAS 2008
- Core Speed 533 MHz
- Operating voltage requirements +12V, +3.3V, +3.3Vaux
- Communication to the system PCI-E lanes
- Communication to end devices SAS Links
- Connectors 2x4 Mini-SAS
- Lead Free Yes
- Supported operating systems Microsoft Windows Server 2003 family, Microsoft Windows Server 2008 family, Windows Server 2008 R2, Red Hat Enterprise Linux version 4 Update 7 and later, version 5 Update 3 and later, SUSE Linux Enterprise Server version 10 Service Pack 2 and later (64-bit only), and version 11 Gold and later (64-bit only).
- Dell-compliant SAS and SATA compatibility Yes
- Dell-supported direct connected end devices Dell-supported external tape devices.
- Hot add or Hot remove of end devices Yes
- Support for external tape drive Yes
- Port activity or status LEDs Yes
- Hardware-based RAID No
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

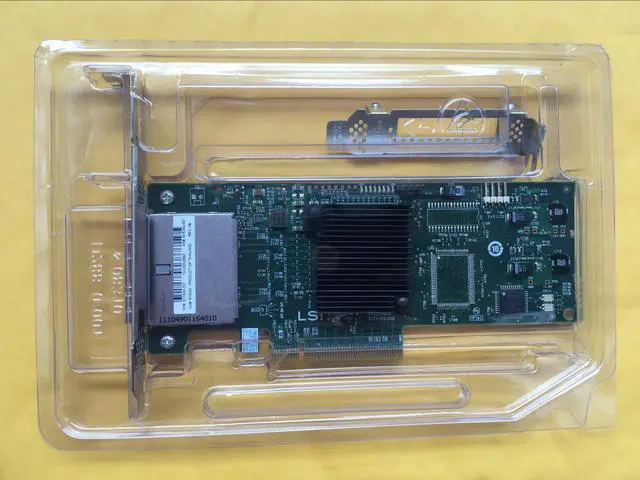

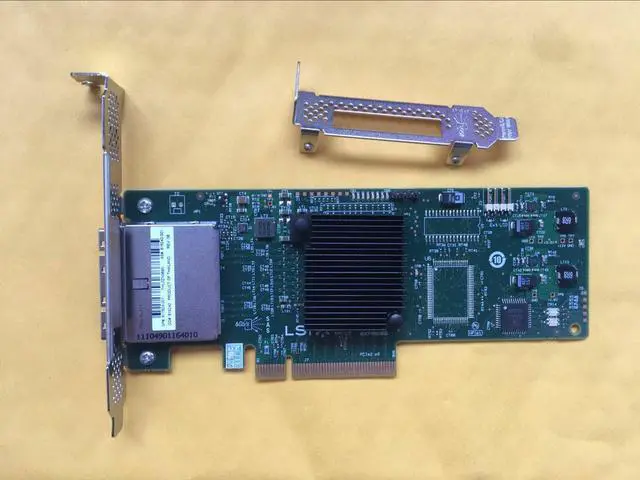

1pc * LSI 9200-8E Raid Controller Card 1pc * Low-Profile Bracket
