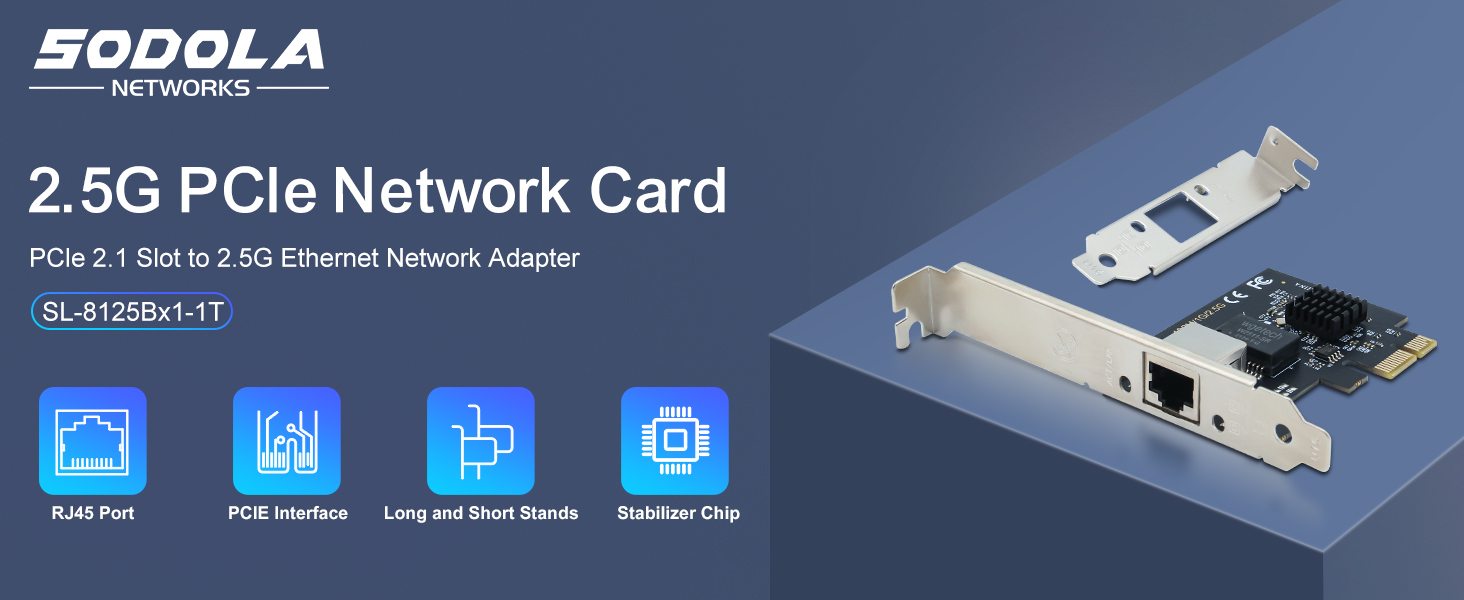

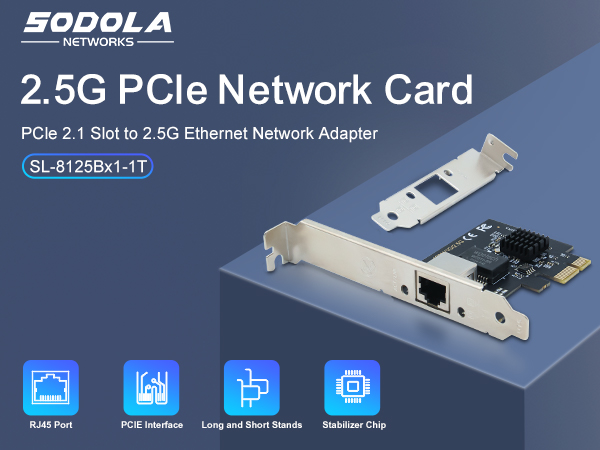

SODOLA 2.5gb Network Card, PCle 2.1 Slot to 2.5G Ethernet Network Card
PCI Express RTL8125B Single-Port 2.5G Ethernet NIC

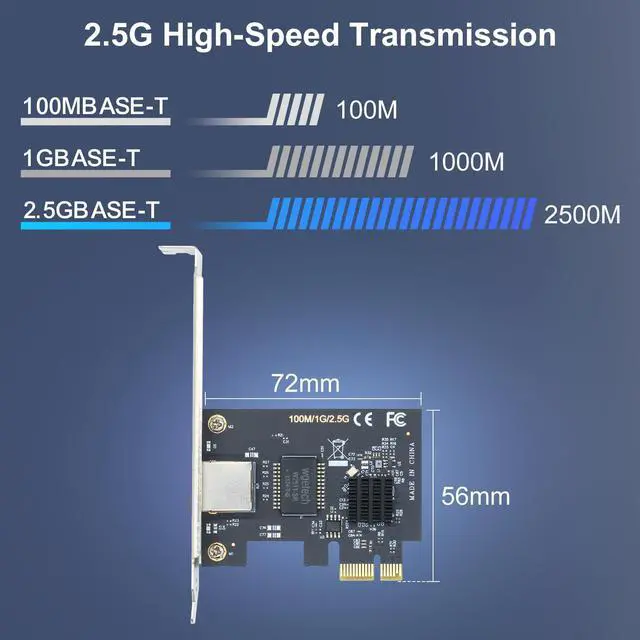

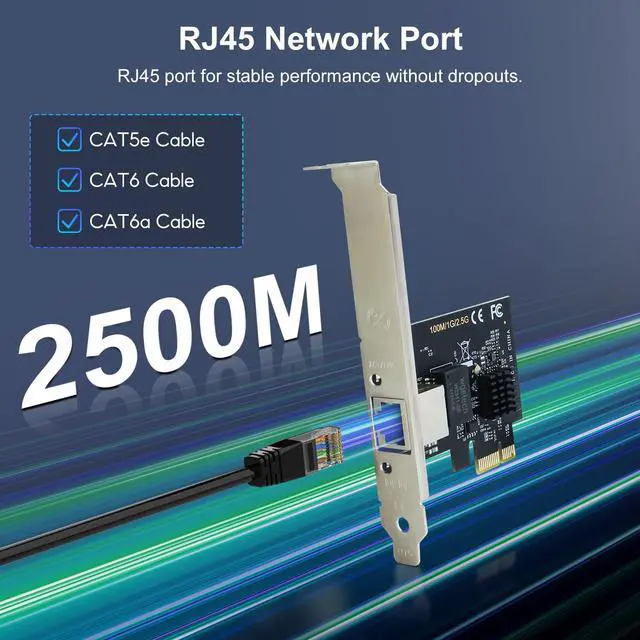

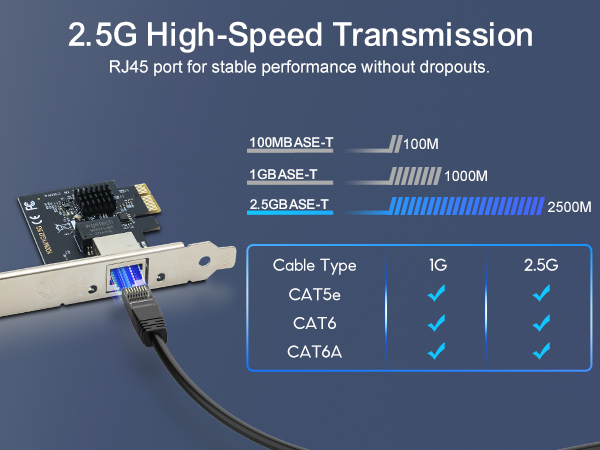

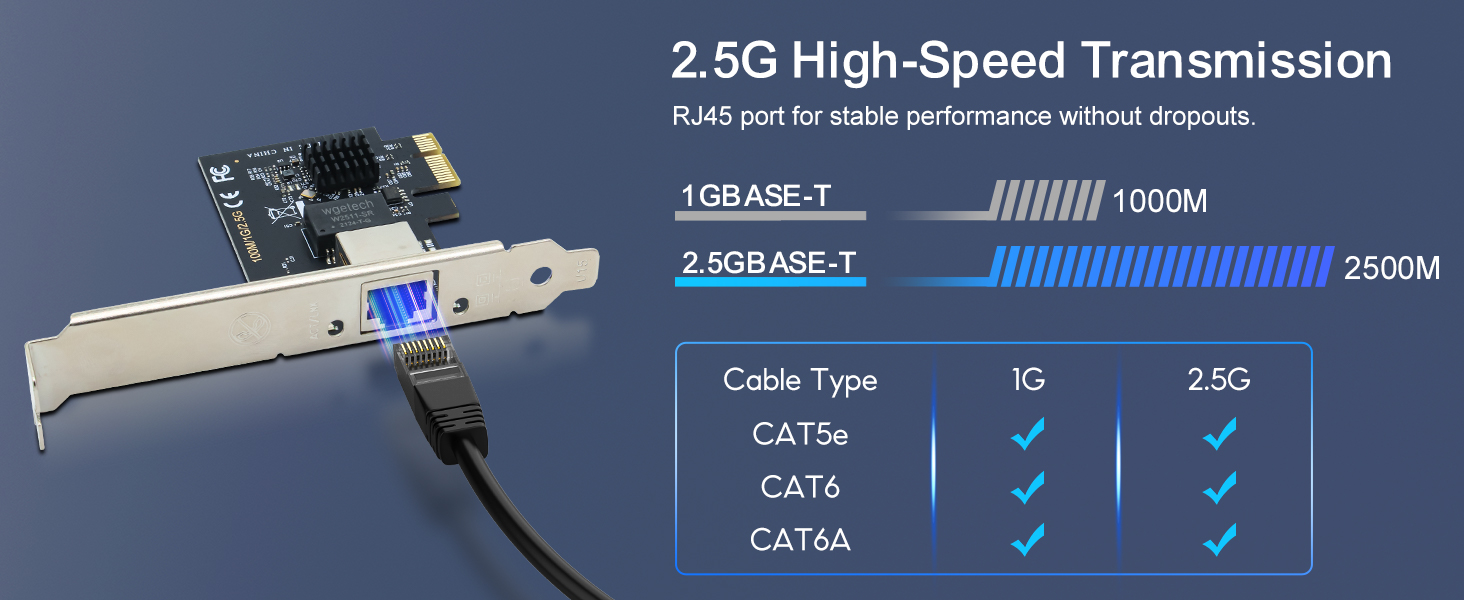

PCI Express RTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications
Specification
SODOLA 2.5gb Network Card, PCle 2.1 Slot to 2.5G Ethernet Network Card
PCI Express RTL8125B Single-Port 2.5G Ethernet NIC
PCI Express RTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications
Specification
| 1 | v.Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver. |
|---|---|
| 2 | vSupports 2.5G and 1G Lite mode. v Auto-Negotiation with Extended Next Page capability(XNP). |
| 3 | v Support PCI Express Specification Revision 2.1. v Supports pair swap/polarity/skew correction. |
| 4 | v Crossover Detection& Auto-Correction. vSupports 1-Lane 2.5/5Gbps PCI Express Bus. |
| 5 | vSupports hardware ECC(Error correction code)function. v Supports hardware CRC(Cyclic Redundancy Check)function. |
| 6 | v Supports PCI MSI (Message Signaled Interrupt)and MSI-X. v Transmit/Receive on-chip buffer support. |
| 7 | vSupports ECMA-393 ProxZzzy Standard for sleeping hosts. v Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports. |
| 8 | vCompatible with IEEE802.3,IEEE802.3u,IEEE802.3ab. vSupports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization. |
| 9 | vSupports IEEE802.1Qav credit-based shaper algorithm. v Supports IEEE802.1P Layer 2 Priority encoding. v Supports IEEE802.1Q VLAN tagging. |
| 10 | vSupports IEEE802.1ad Double VLAN. vSupports IEEE802.3az (Energy Efficient Ethernet). v Supports IEEE802.3bz(2.5GBase-T). |
| 11 | vSupports full duplex flow control(IEEE802.3x). v Supports jumbo frame to 16K bytes. v Supports Virtual Machine Queue(VMQ). vSupports quad core Receive –Side Scaling(RSS). |
| 12 | v Supports Protocol Offload (ARP&NS). v Drivers for Vista /Win7 / Sever2008/Win8/ Sever 2012 / Win10 /Win11 / Linux, DOS. |

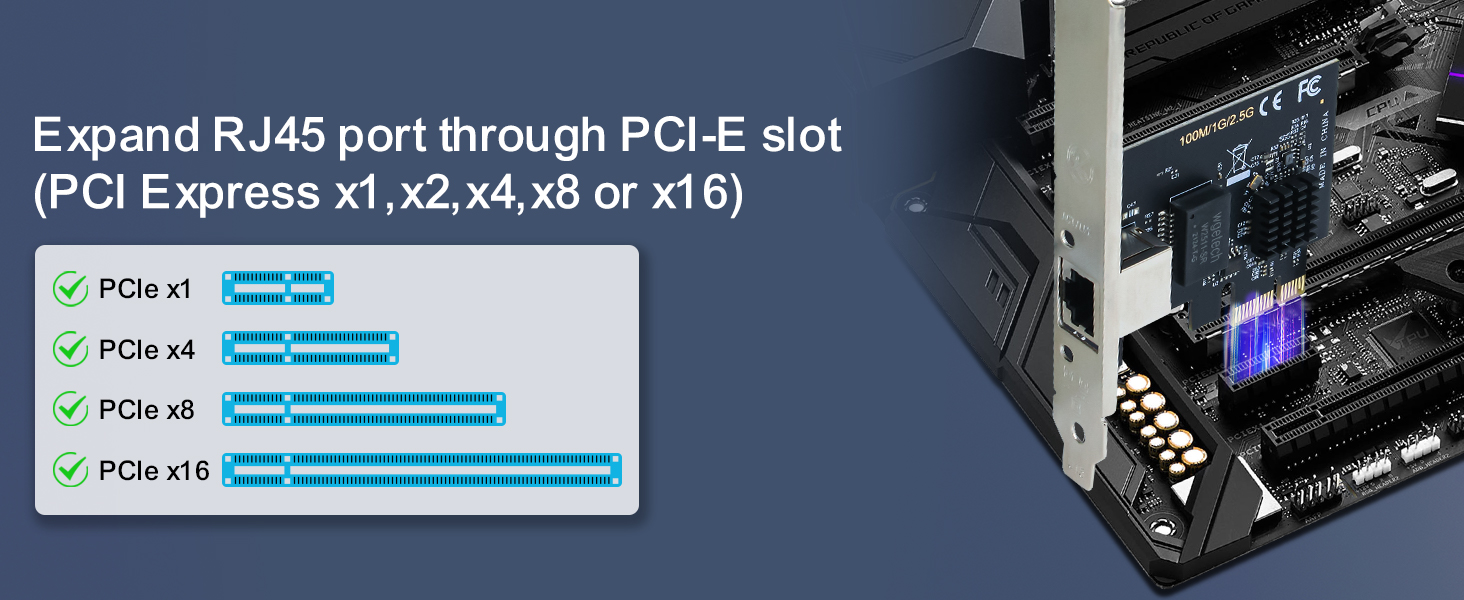

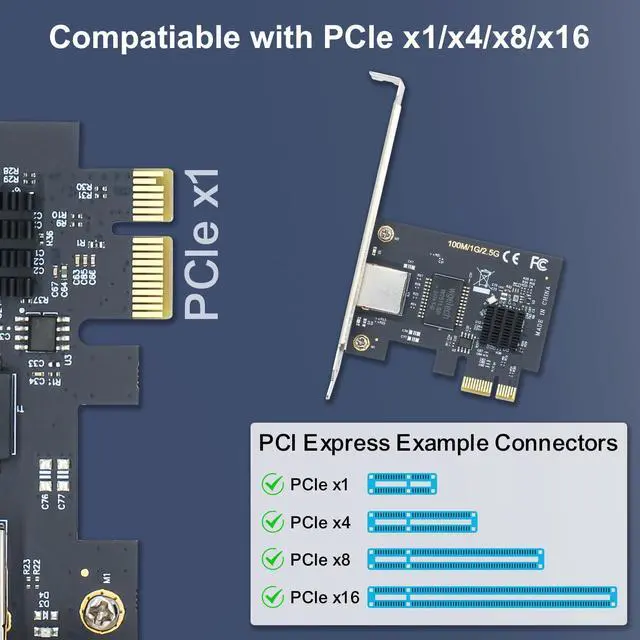

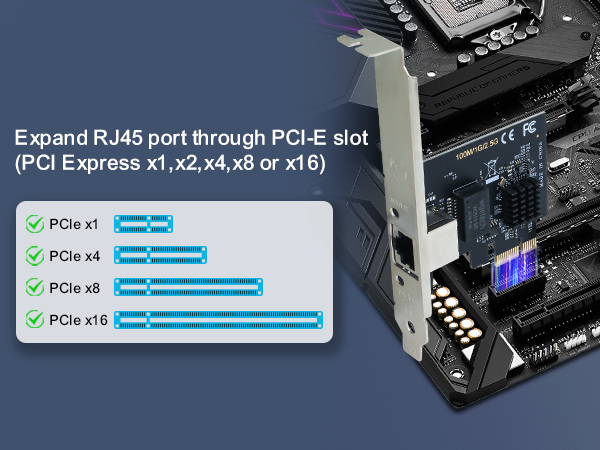

| System Requirements | v Linux ,Win7/Win8/Server2008/Win8.1/Server2012/Win10/Win11. v One available PCI Express x1/x4/x8/x16 slot. |
| Windows Operating Systems | 1. Please insert the CD driver bound into your CD-ROM Drive. 2. Double-click to open the CD-ROM drive and find the driver corresponding to the system. |

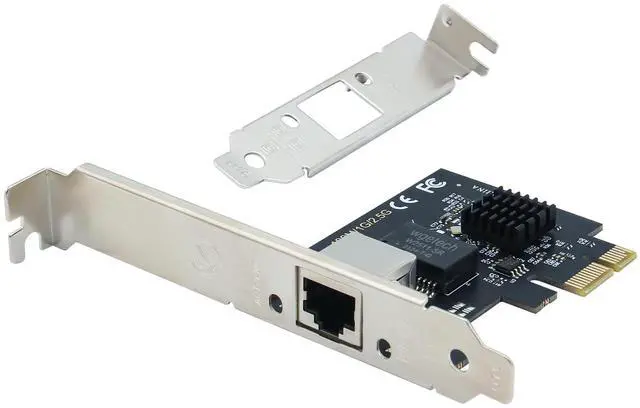

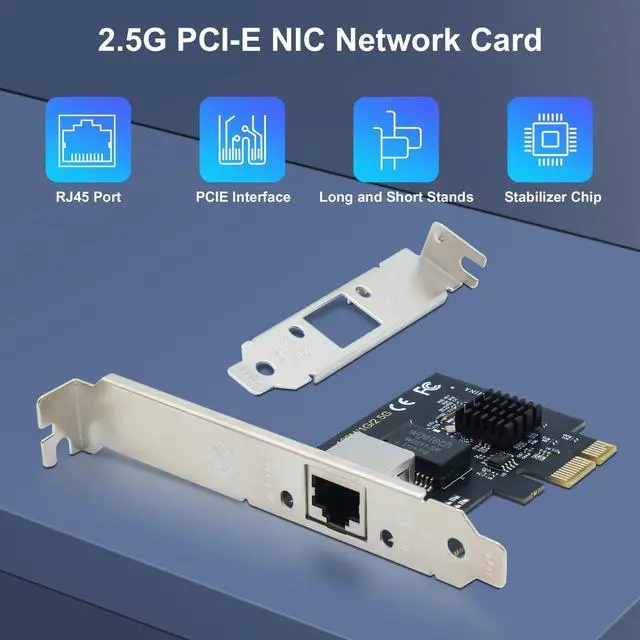

| Package content | v1 x PCI Express RTL8125B 2.5G network adapter; v1 x User’s Manual; v1 x CD; v1 x Low profile bracket |
| Hardware installation | 1.Turn off the computer and unplug the power cord. 2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter. 3.Insert the adapter edge connector into the slot and secure the bracket to the chassis. 4.Replace the computer cover ,then plug in the power cord. 5.Power on the computer. |
