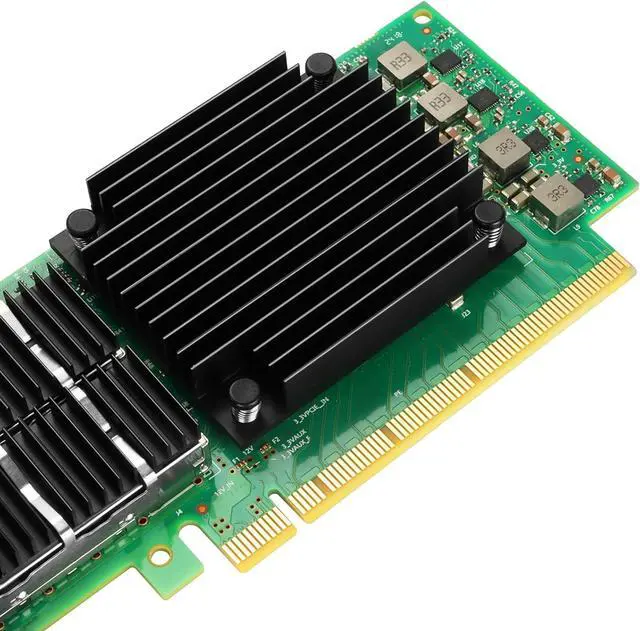

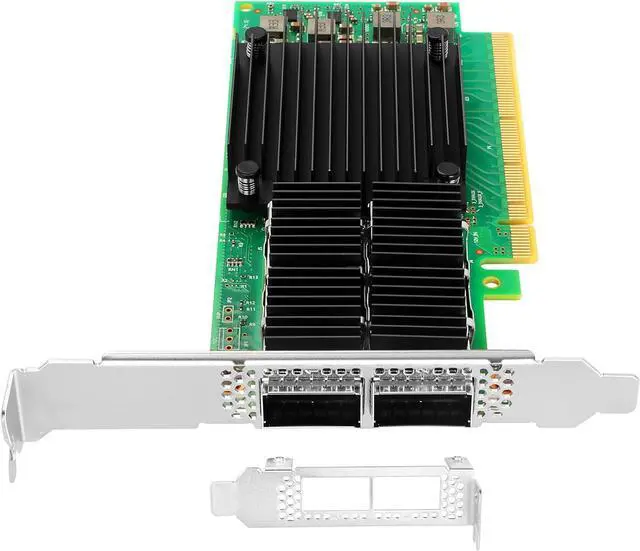

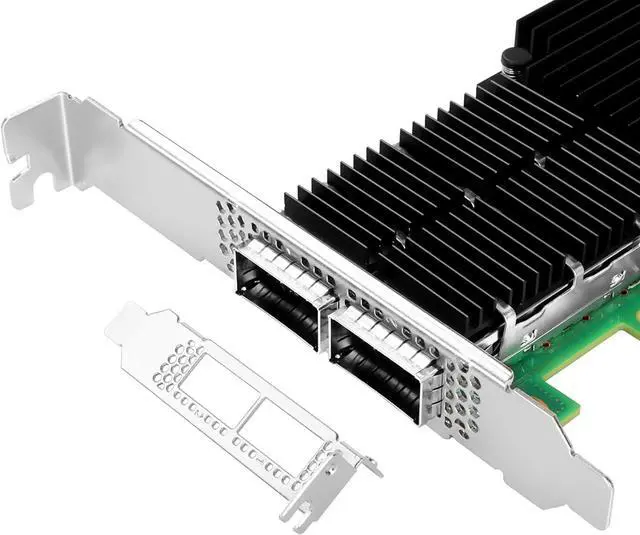

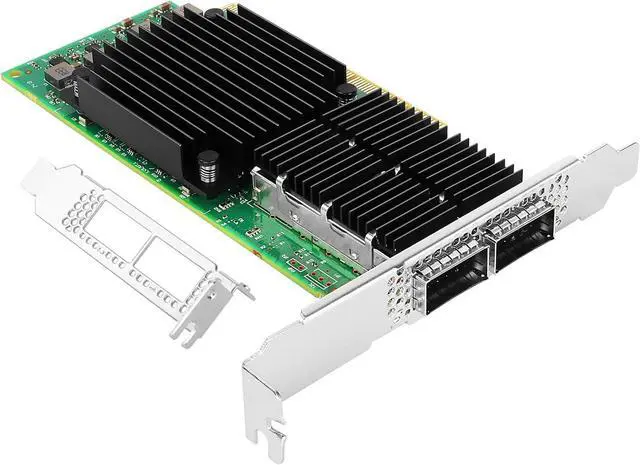

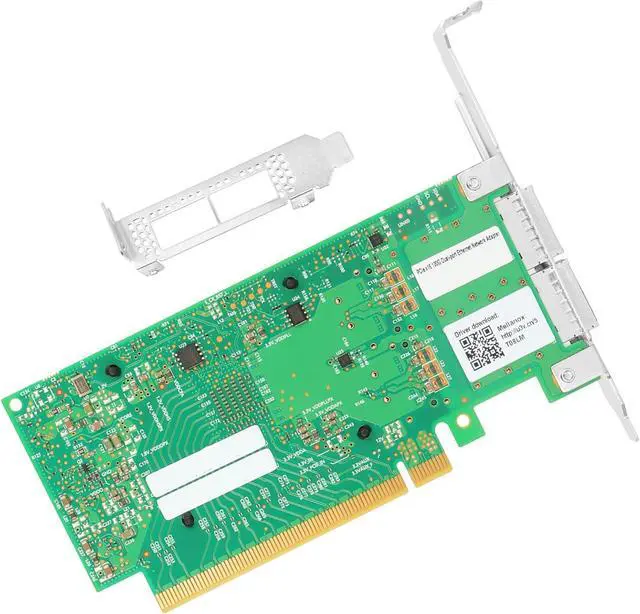

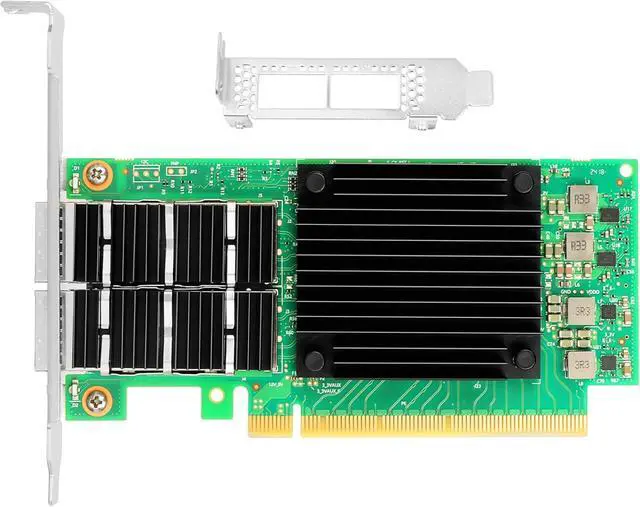

100GbE NIC Card for Mellanox MCX556A-EDAT, PCIe 4.0 x16 100Gb Ethernet NIC with Mellanox ConnectX-5 VPI Chipset, Dual QSFP28 EDR IB Network Card Support RDMA

Controller: 100GbE PCI-E NIC with Mellanox connectX-5 VPI controller,which provide high performance and flexible solutions with up to two ports of 100GbE connectivity, 750ns latency, up to 200 million messages per second (Mpps). and a record setting 197Mpps when running an open source Data Path Development Kit (DPDK) PCIe (Gen 4.0).
Data Rate:Dual QSFP28 Ports(10GbE/25GbE/40GbE/50GbE/100GbE) and EDR let you connect to network cable for meeting the demands of data center environments.PCIe v4.0 (16.0GT/s) x16(Compatible with 2.0/1.1/3.0); X16 Lane.
Technical Support:iPXE, DPDK, iSCSI, UEFI, TCP/IP, UDP/IP, Jumbo Frames, RDMARoCE v1, RoCE V2,ASAP², VMDq, SR-IOV, RSS, IPsec, IB, IEEE1588.
Supported Operating Systems:Windows; Windows Server; Linux Stable Kernel version; Ubuntu; Vmware ESXi; Citrix XenServer; Deepin; RHEL/CENTOS; Freebsd; OFED AND WINOF-2; Mikrotik; Debian; BCLINUX; ALIOS; Euler; KYLIN; etc.
I/O virtualization, multi-VM supportSR-IOV technology enables efficient management of I/O resources of virtual machines by sharing physical resources. And Infiniband technology fully meets the needs of high bandwidth and low latency in big data, its aggregation on virtual I/O and flat network architecture provide a huge pipeline that can be dynamically distributed on demand to improve availability and load balancing.
ASAP²: The groundbreaking NVI-DIA ASAP² technology delivers innovative SR-IOV and VirtIO acceleration by offloading Open vSwitch datapath from the hosts CPU to the adapter to enable extreme performance and scalability.
What you Get: 100GbE PCI-E X16 Network Card MCX556A-EDAT-100G (compare to Mellanox MCX556A-EDAT ) x1, Low-profile Bracket x1.
