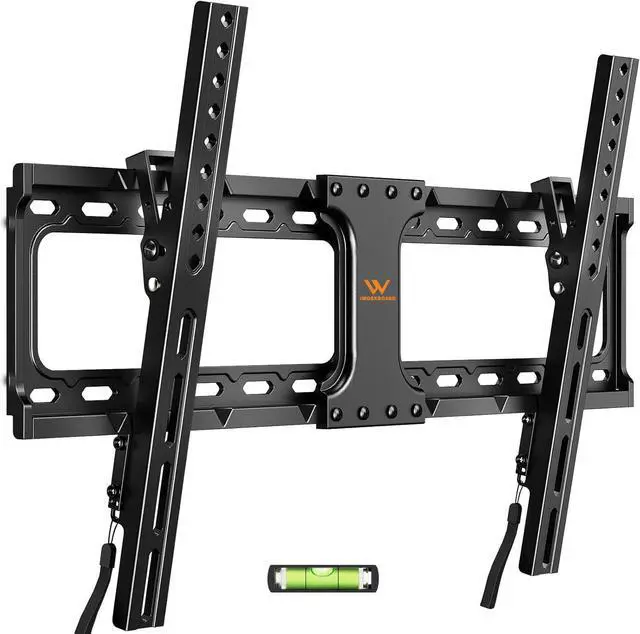

IWORKBOARD TV wall mount
Merchant Video
Is this mount compatible with my TV?
Check these 2 points + wall type!
1. The screw holes must align (VESA standard).
2. The mount must support your TV's weight.
3. Installation surface: Brick Walls/Solid Concrete/Wood studs only!

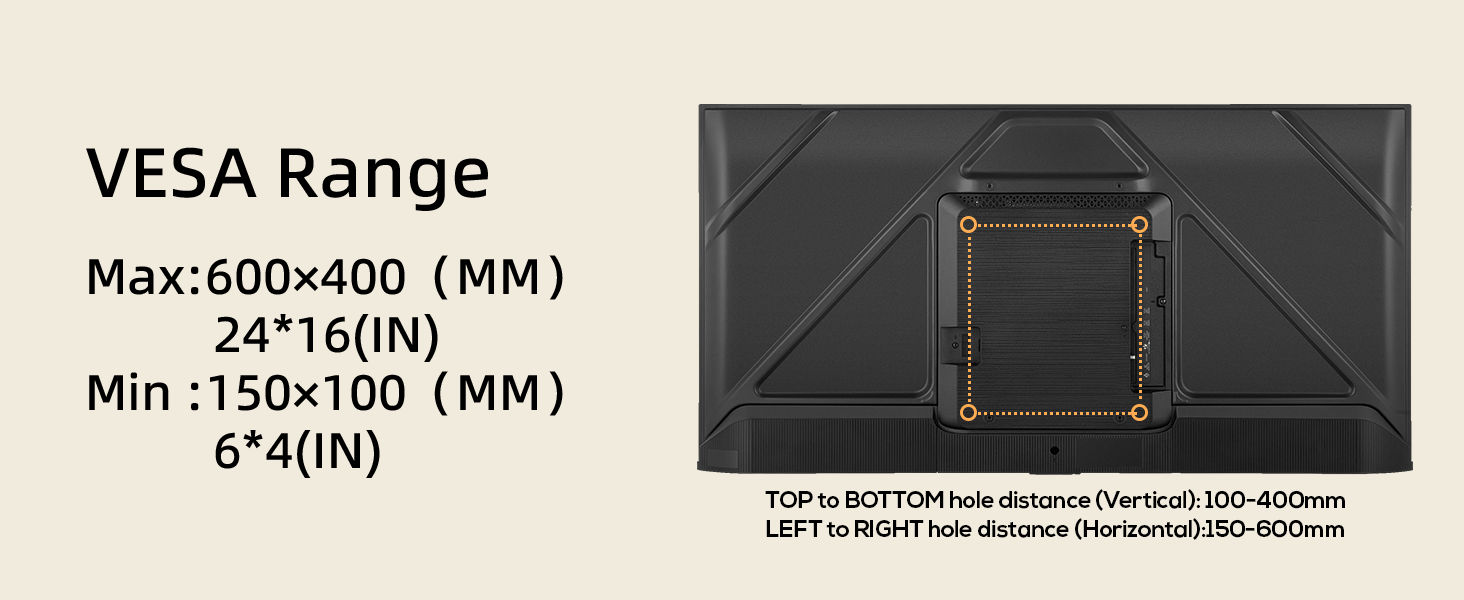

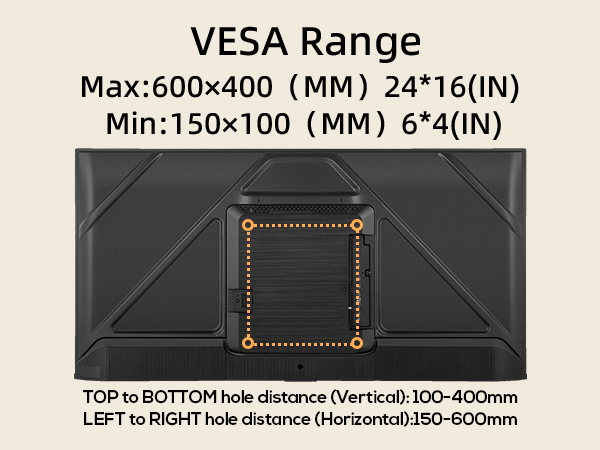

How to verify VESA compatibility?
Measure the horizontal and vertical distances (inches) between the four screw holes on the back of your TV.This mount supports sizes from 6×4 inches to 24×16 inches.

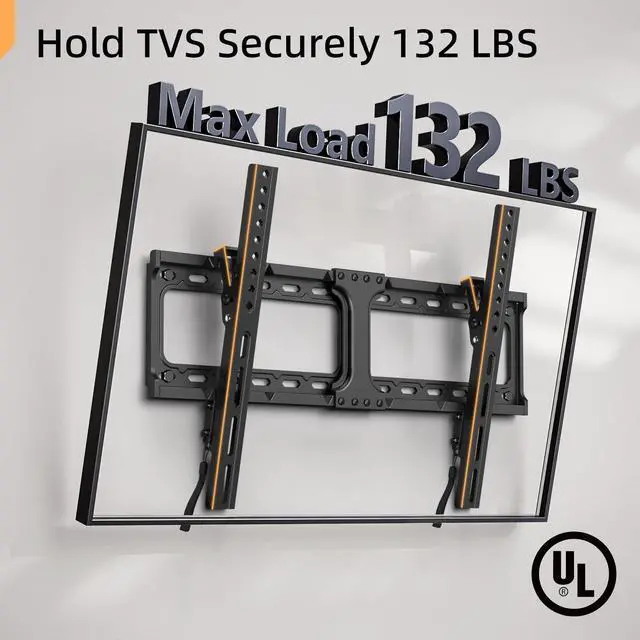

How to Check Weight Capacity??
Verify the mount's maximum load capacity?? – It ??must exceed?? your TV's weight.
This mount's max weight:?? ??132 lbs (60 kg).

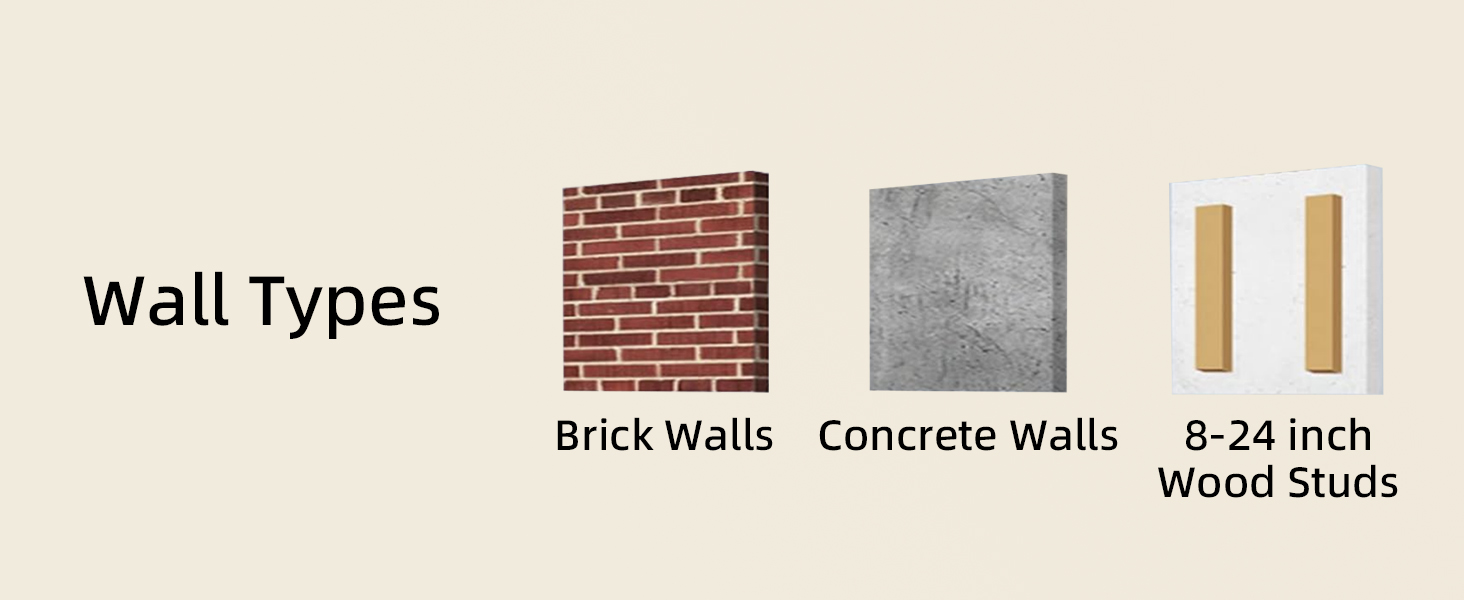

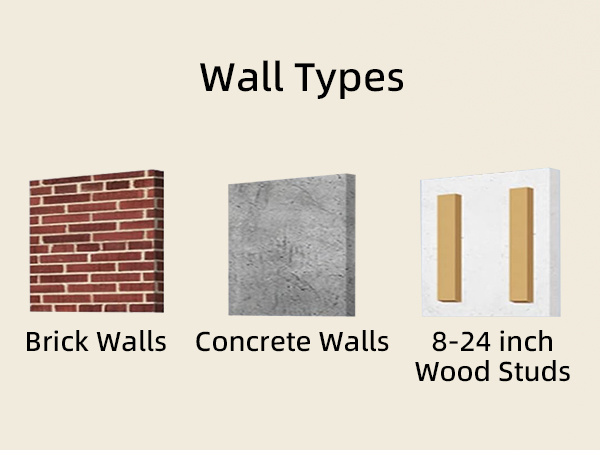

How to Determine Wall Type?(Concrete Anchors will be sent per requested)

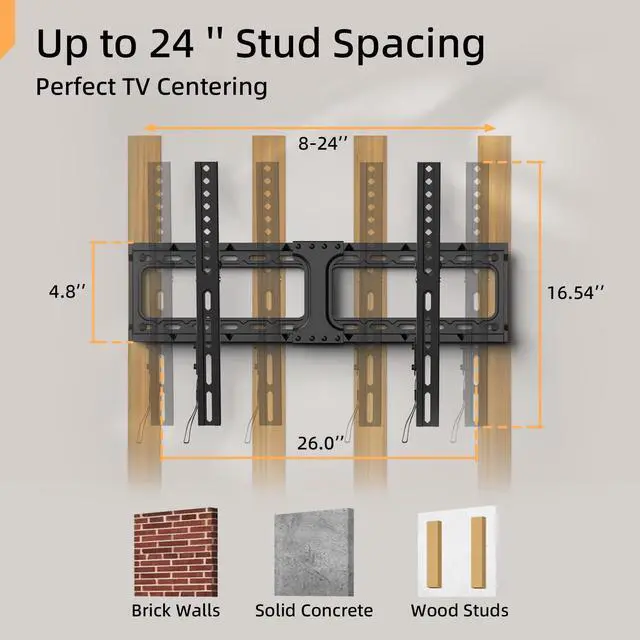

1. Drywall: You must locate the wood stud behind the wall up 8-24" wood studs(Anchors are not allowed)??.
Warning: Installing only into drywall or using anchors could cause the TV falling.
2. Solid Wall (Concrete Wall): Must use concrete anchors.
More for Your Choice
 Tilting |  Tilting |  Fixed |  Full Motion |  Full Motion |  Full Motion | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
Mount Type | Tilt TV Mount | Tilt TV Mount | Fixed TV Mount | Full Motion TV Mount | Full Motion TV Mount | Full Motion TV Mount |
TV Size | 32-90 Inch | 24-65 Inch | 14-43 Inch | 32-70 Inch | 40-86 Inch | 42-86 Inch |
Max VESA | 600×400mm | 400×400mm | 200×200mm | 400×400mm | 600×400mm | 600×400mm |
Max Load | 132lbs | 99lbs | 66lbs | 110lbs | 132lbs | 110lbs |
Tilt Angle | -10° | -9° | / | +5°/-15° | +5°/-15° | +5°/-15° |
Swivel Angle | / | / | / | +45°/-45° | +45°/-45° | +45°/-45° |
Fitting Studs Spacing | 8-24 Inch | 8-16 Inch | Single Wood Stud | 8-16 Inch | 8-16 Inch | 8-24 Inch |

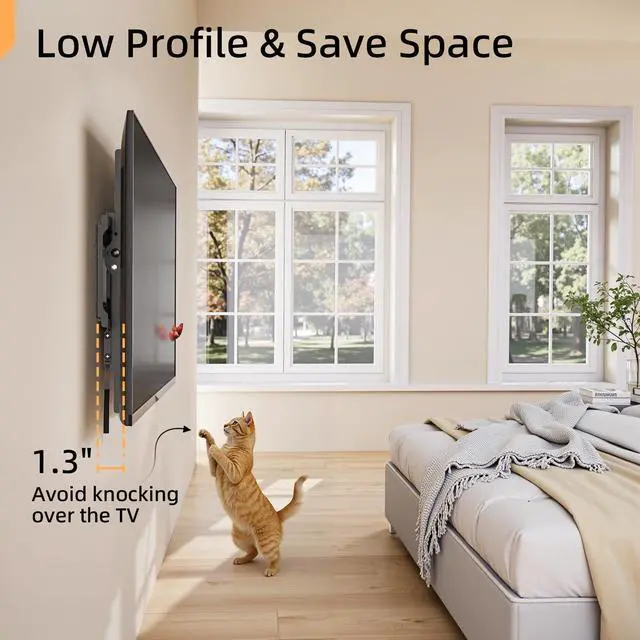

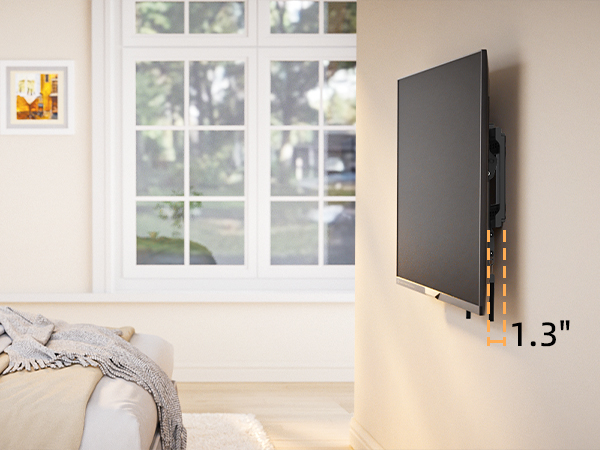

Distance to Wall | 1.3 Inch | 1.6 Inch | 0.6 Inch | 3.43-15.07 Inch | 2.56-16.65 Inch | 2.69-16.79 Inch |
