Camouflage Radio dualband UV-5R walkie talkie dual display 136-174/400-520MHz two way radio with free earpiece BF-UV5R

Camouflage Radio dualband UV-5R walkie talkie dual display 136-174/400-520MHz two way radio with free earpiece BF-UV5R
Features:
Frequency Range: 136-174 & 400-520MHz
Dual Band, Dual Display, Dual Frequency, Dual Standby
Output Power: 5/1Watt
128 Storage Channels
50 CTCSS and 104 CDCSS
Buit-in Vox Function
1750Hz Brust Tone
FM Radio( 65.0MH z- 108.0MH z)
LED Flashlight
Larger LCD Display
High/Low RF Power Switchable
25KHz/ 12.5KH z Switchtable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step: 2.5 /5/ 6.25 /10/ 12.5 /25KHz
PC Programming

Specifications

:
Dual band, dual displayA/B band independent operation
128 groups channels storageShortcut menu operation mode
VFO & Memory channels scanEmergency Alarm
Tri-color background light selectable0~9 grades VOX selectable
PTT & ANI IDFM radio and 25 stations storage
1750Hz Brust ToneTime-out Timer
Channel Monitor Battery Saver
Keypad LockChannel Step: 2.5 /5/ 6.25 /10/ 12.5 /25KHz
Low Battery AlertROGER SET
Emergency Alert25KHz/ 12.5KH z Switchable
FM Radio ( 65.0MH z- 108.0MH z)Large LCD Display
LED FlashlightHight /Low RF Power Switchable
Voice companding50 CTCSS/ 104DCS coder & tone searching
dual standbyPC programmable
Wide/Narrow Band(25kHz/ 12.5 kHz)Transmitter time-out timer (TOT)
High/Low TX power selectableBusy channel lock-out (BCLO)

Specifications

General
Frequency Range65-108MHz (FM Receive only)
136-174MHZ and 400-520MHZ (TX/RX)
Channel No. 128
Frequency Stability 2.5 ppm
AntennaHigh gain DualBand antenna
Antenna Impedance50
Operating VoltageDC 7.4V
Mode of operation Simple or semi-duplex
Dimension (W x H x D) 100 x 52 x 32 mm
Weight250g(including battery, antenna)
Antenna: SMA -Female
Earpiece / mic type: Kenwood Plug type
Transmitter
Output power5W / 1W (Max 5W)
Modulation Mode16kF3E / 11kF3E
Maximum deviation 5kHz (Wide) / 2.5 kHz (Narrow)
Spurious Radiation 7W
Adjacent Ch. power-65dB (Wide) / -60dB (Narrow)
Pre-emphasis characteristics6dB
Current 1.6A (5W)
CTCSS/DCS deviation 0.50. 1kHz (Wide) / 0.30. 1kHz (Narrow)
Intermediation sensitivity8-12mv
Intermediation distortion10%
Package Contain:
1 UV-5R Camouflage (VHF136-174 & UHF 400-520Mhz)
1 7.4V 1800mah Li-ion Battery Pack
1 Dual Band Antenna
1 Belt Clip
1 ENG Manual
1 Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country
1 Earpiece
1 Handstrap

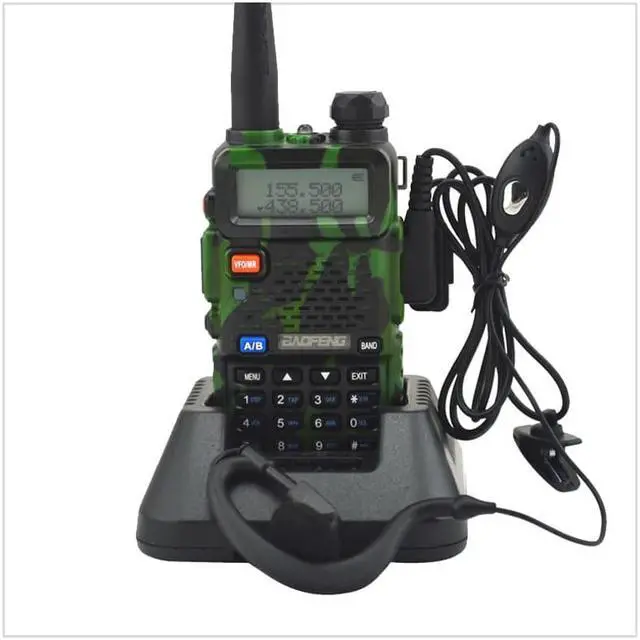

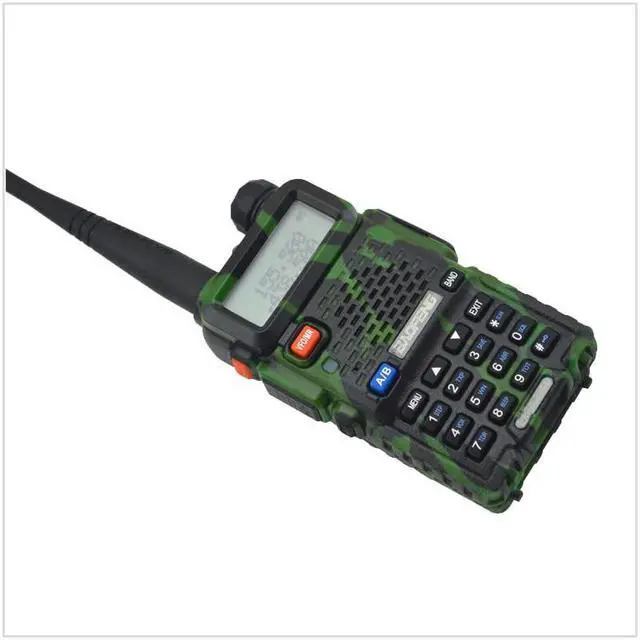

Item Picture:
