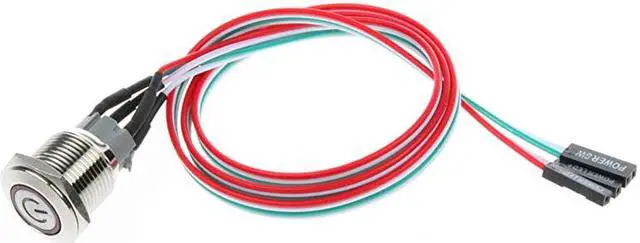

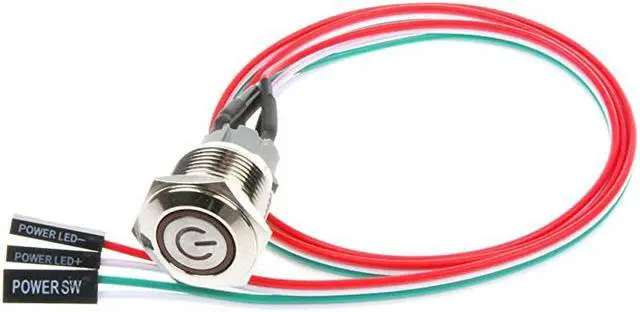

12mm Chassis Switch Metal Button Switch with 22inchs Extension Cable Red Yellow Blue Green Switch Symbol Suitable for Computer DIY Switch 12mm Blue Symbol
- *****
- **********

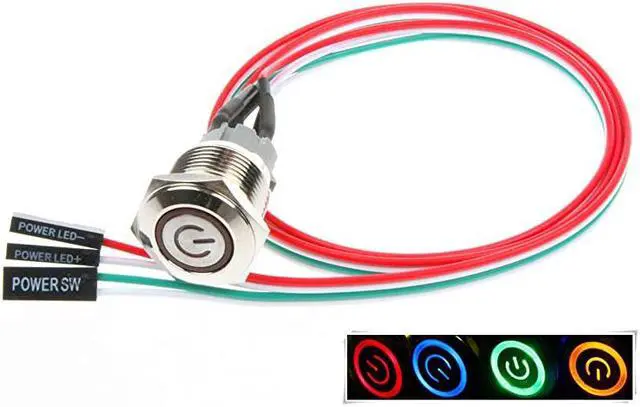

- ***** 12mm 16mm Chassis Switch Metal Button Switch With 22inchs Extension Cable Red Yellow Blue Green LED Ring Switch Symbol Four colors are available for you to choose from. *****

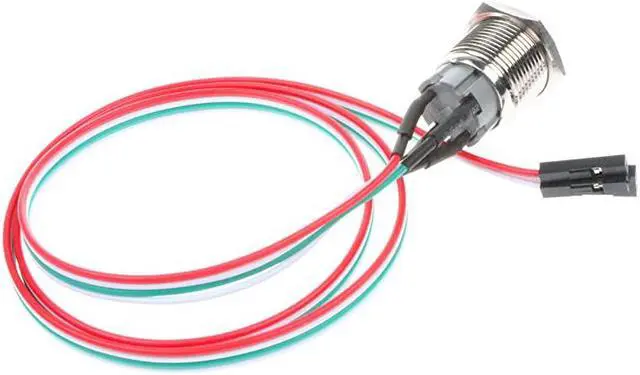

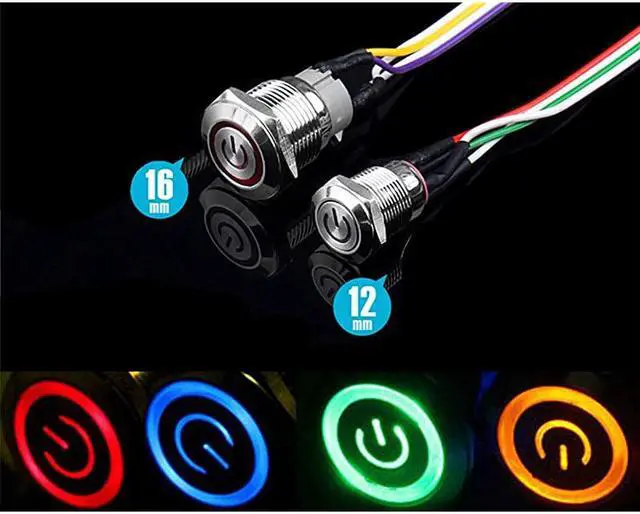

- *****There are two types of switches: 12mm and 16mm. Both types of switches have wires with wires length of approximately 60cm / 23 inchs (Please see the third picture on the left for the dimension of the switch).*****

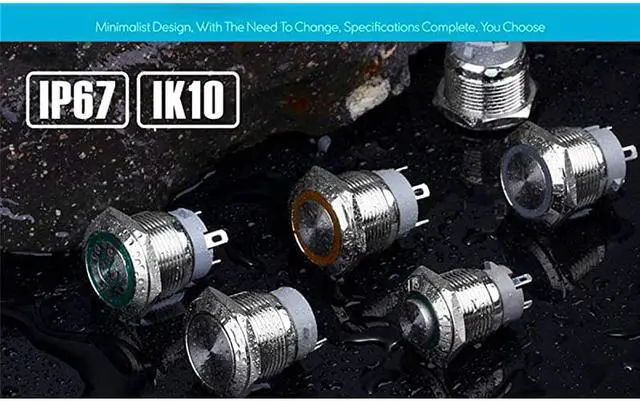

- *****Switch type: Fast moving single contact. Push & Hold - ON ; Release - OFF . Waterproof grade IP67 , Explosion grade IK10(for metal material)*****
- *****The rated voltage and current of the LED of the switch: rated voltage 3-6V, rated current 20mA. Switch rated load: 12mm switch - AC/DC 0 -220V 3A Max; 16mm switch - AC / DC 220V 5A Max.*****
- *****Suitable For DIY Computer Switch and Restart Button .
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Size:
12mm|Color: Blue Symbol 12mm 16mm Chassis Switch Metal Button Switch With 23inchs Extension Cable User
Manual Download Link:
https: //www.
/clouddrive/share/ihr3q5NzJNO0ETlWOVoiNWxTuexbI7IC5iCPxunaNeI: This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Red Yellow Blue Green LED ring With switch symbol. Suitable for DIY Computer Switch and Restart Button. Metal Button Technical Parameters LED Parameters: LED
Type: High brightness LED lamp, Cool.
Rated Voltage: 3-6V.
Rated Current: 20mA.
Switch rated load: 12mm switch - AC/DC 220V 3A Max; 16mm switch - AC / DC 220V 5A Max.
Switch Type: Fast moving single contact.
Contact resistance: 50m.
Insulation resistanace: 1000M.
Insulation strength: 2000VAC.
Ambient temperature: -20C - +55C. Waterproof grade IP67, Explosion grade IK10 (for metal material)
Operating pressure: 2.5 - 4.5 N.
Outer Shell: Stainless steel.
Press key: Stainless steel.
Base seat: Engineering plastic.
Touchpoint: Silver alloy. [About after-sales service] Our aim is to provide the best products and services for every customer. So if you need any help when using our products, you can contact us. We are also looking forward to your feedback on the use of the product., which will be valuable for us to develop new products.
Package Included: Chassis Switch Host Metal Button Switch With 22inchs Extension Cable
12mm|Color: Blue Symbol 12mm 16mm Chassis Switch Metal Button Switch With 23inchs Extension Cable User
Manual Download Link:
https: //www.
/clouddrive/share/ihr3q5NzJNO0ETlWOVoiNWxTuexbI7IC5iCPxunaNeI: This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Red Yellow Blue Green LED ring With switch symbol. Suitable for DIY Computer Switch and Restart Button. Metal Button Technical Parameters LED Parameters: LED
Type: High brightness LED lamp, Cool.
Rated Voltage: 3-6V.
Rated Current: 20mA.
Switch rated load: 12mm switch - AC/DC 220V 3A Max; 16mm switch - AC / DC 220V 5A Max.
Switch Type: Fast moving single contact.
Contact resistance: 50m.
Insulation resistanace: 1000M.
Insulation strength: 2000VAC.
Ambient temperature: -20C - +55C. Waterproof grade IP67, Explosion grade IK10 (for metal material)
Operating pressure: 2.5 - 4.5 N.
Outer Shell: Stainless steel.
Press key: Stainless steel.
Base seat: Engineering plastic.
Touchpoint: Silver alloy. [About after-sales service] Our aim is to provide the best products and services for every customer. So if you need any help when using our products, you can contact us. We are also looking forward to your feedback on the use of the product., which will be valuable for us to develop new products.
Package Included: Chassis Switch Host Metal Button Switch With 22inchs Extension Cable
