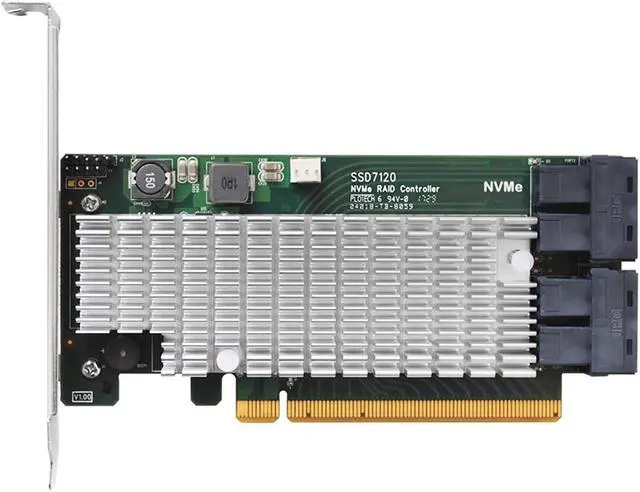

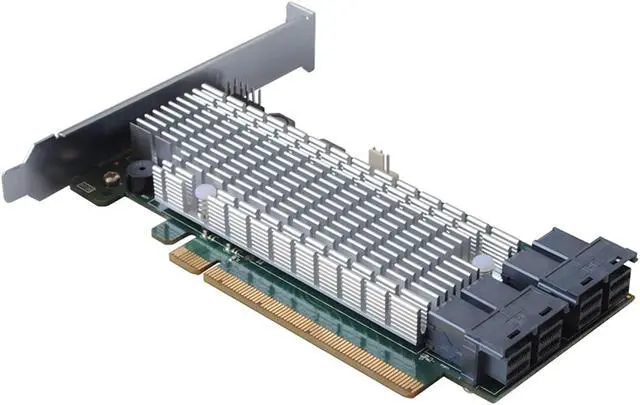

High Point SSD7120 4X Dedicated 32Gbps U.2 Ports to PCIe 3.0 x16 RAID Controller

High Point SSD7120 4X Dedicated 32Gbps U. 2 Ports to PCIe 3.0 x16 RAID Controller


Item Condition: New

Brand: high point
Item model number: SSD7120

Product Information

- Dedicated PCIe 3. 0 x16 bus bandwidth: Over 8X faster than NVMe storage locked behind Intel DMI 3. 0
- Four Flexible U. 2 Ports with Dedicated PCIe 3. 0 x4 bandwidth for each NVMe SSD
- Independent, Stand-Alone, NVMe SSD RAID Solution Supports Single Drives & RAID 0, 1, 1/0
- Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3. 3 & later
- Certified HighPoint Cable Accessories: 8643-8639-50, OLX4-8643-061 & 8643-8643-0350

Ultra-High Performance, Flexible NVMe U. 2 RAID Controller - Designed for high-end desktop & workstation platforms, the SSD7120 is capable of delivering transfer performance up to 8x faster than onboard NVMe solutions and up to 44x faster than SATA SSDs. The SSD7120s unique hardware architecture provides dedicated PCIe 3. 0 x4 (32Gb/s) bus bandwidth for each SSD, and unlocks the true performance potential of NVMe based storage configurations. The U. 2 ports are compatible a wide range of 2. 5" rackmount chassis in todays marketplace and simplify upgrade and maintenance procedures. Dedicated PCIe 3. 0 x16 Shatters the DMI Performance Bottleneck - Unlike onboard DMI 3. 0 based NVMe solutions, which are forced to share a single PCIe 3. 0 x4 lane with the motherboards SATA & USB ports, the SSD7120 features dedicated PCIe 3. 0 x16 bus bandwidth, which allows each SSD to interface directly with the platforms CPU. Independent, Stand-Alone NVMe SSD Solution - All SSD7100 Series RAID controllers are fully independent NVMe RAID solutions, and are not tethered to specific motherboards or chipset families; any system sporting a free PCIe 3.

0 x16 slot with direct access to the CPU is fair game. NVMe RAID Management with Integrated TRIM & S. M. A. R. T. Monitoring & TBW Tracking - The NVMe Manager portion of the RAID Management interface features TRIM support, and S. M. A. R. T. monitoring with total Terabyte Written (TBW) tracking. TRIM support promotes the longevity and endurance of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write speed degradation. S. M. A. R. T. monitoring allows you to check a variety of attributes for each NVMe SSD, including temperature, voltage & TBW. Scalable Performance Across Multiple RAID Controllers - Multiple SSD7120 NVMe RAID controllers can be linked and installed into a single system, and deliver up to 256Gb/s of performance - 8x faster than NVMe drives locked behind Intel DMI 3. 0.
