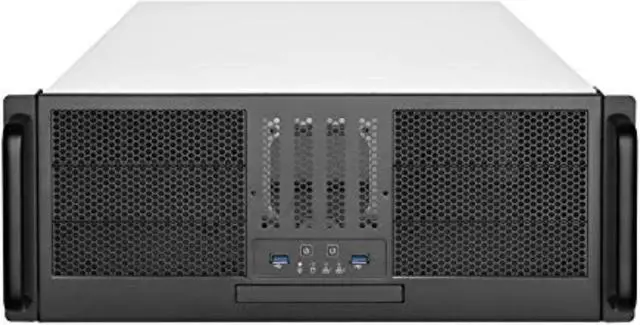

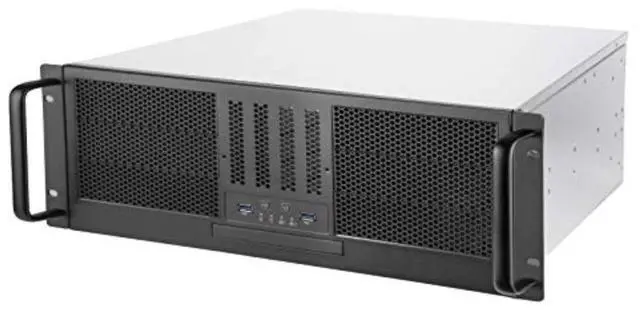

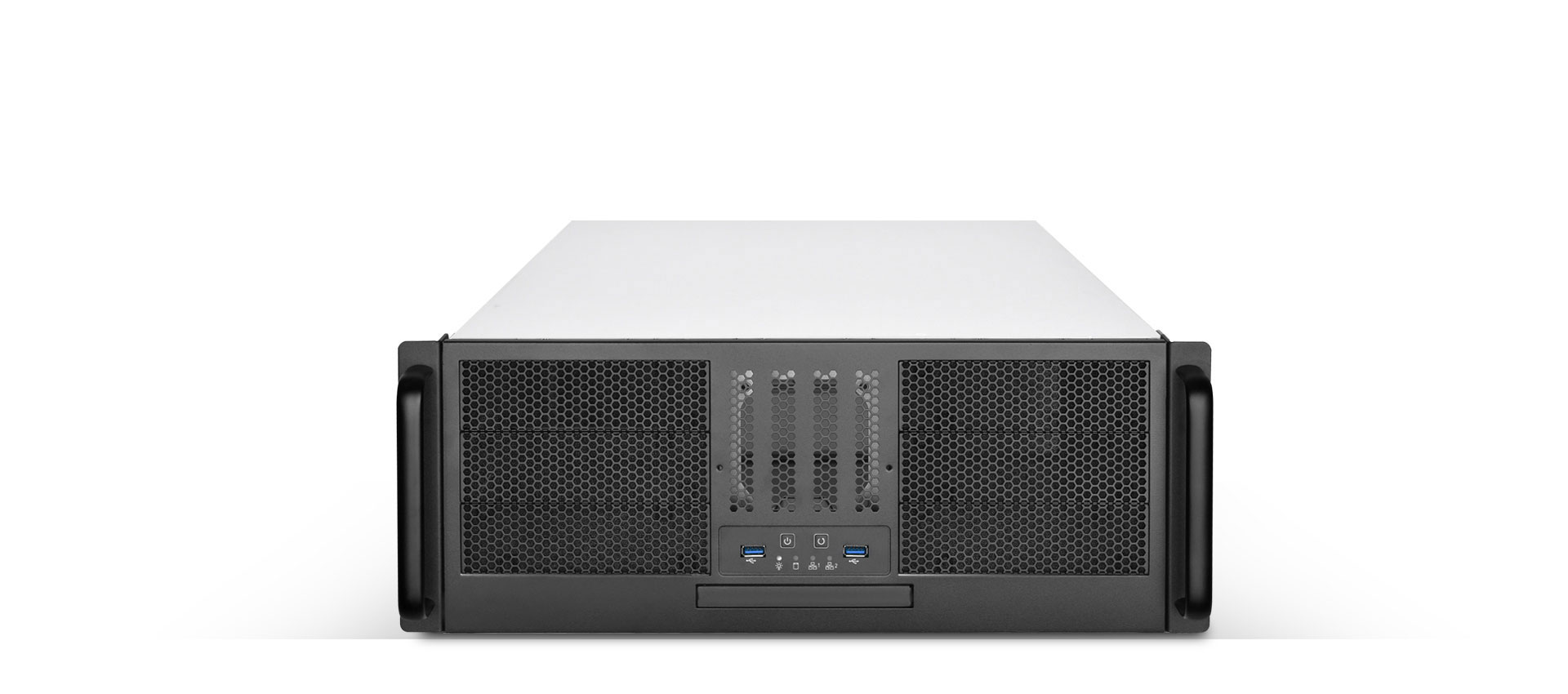

RM41-506
4U 6-bay 5.25" rackmount server chassis
- Supports up to SSI-CEB motherboard
- Supports Standard profile PCI / PCIe x 7 slots

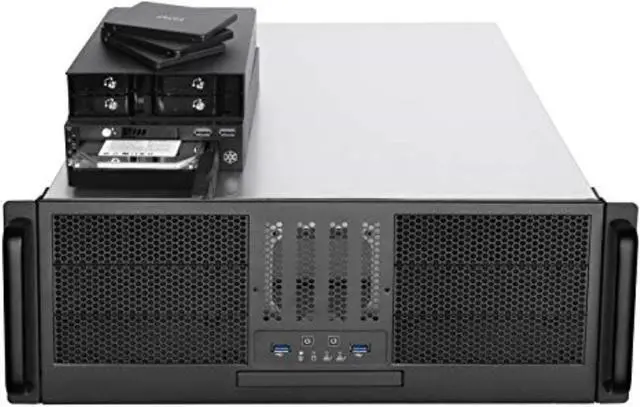

- Six 5.25" drive bays for flexible 5.25" device installation
- 5Gbps Super Speed USB 3.1 Gen 1 interface, backward compatible with USB 2.0 / 1.1

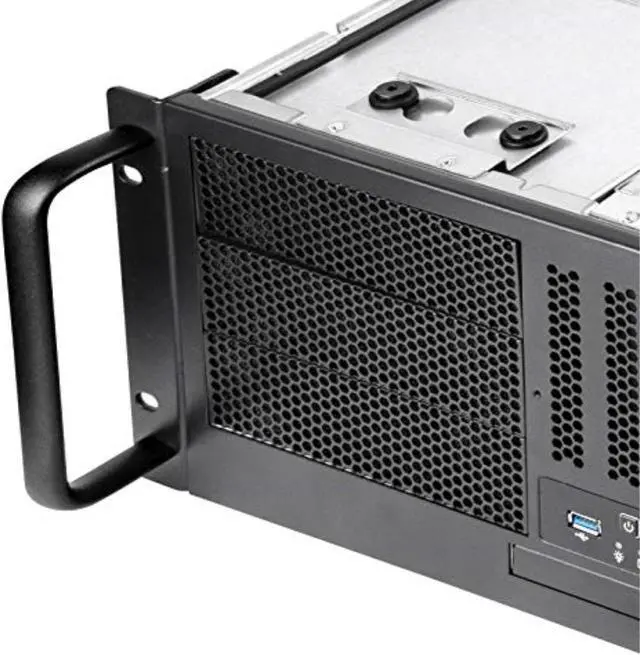

- Mounting holes ready for quick rail slide installation (rail slide sold separately)
Product Specifications
| Model No. | SST-RM41-506 |
|---|---|
| Motherboard | CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |
| Main metal thickness | 1.2mm |

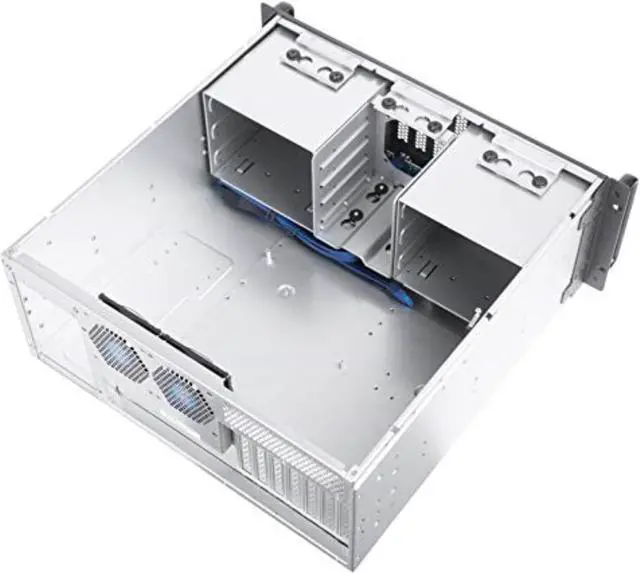

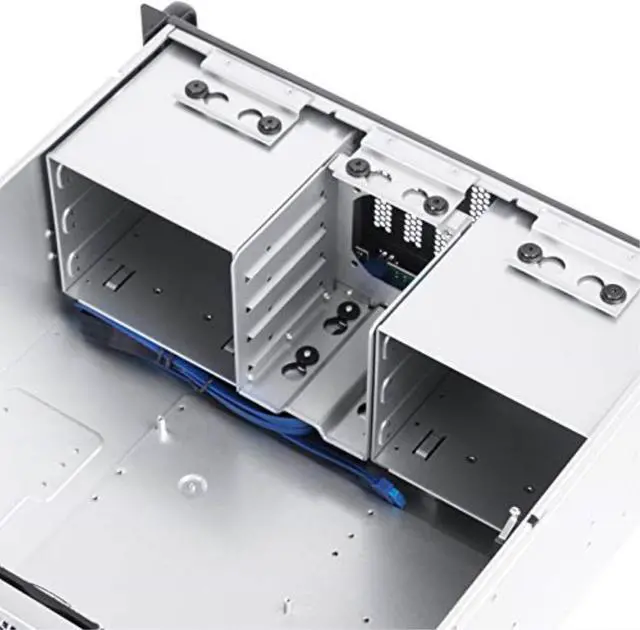

| Drive Bay Internal | 4 x 3.5",2 x 2.5" (up to 15mm), 1 x 2.5" (up to 15mm) or slim optical (12.7mm) |
| Cooling system | Front - 80 x 25mm fan x 1(fan not included),Rear - 80 x 25mm fan x 2 |
| Expansion card | Length w/ 5.25" drive cage: 278mm, Length w/o 5.25" drive cage: 426mm |
| Front I/O Port | USB 3.1 Gen1 Type-A x 2 |
| Indicators | Power status x 1, HDD activity x 1, LAN activity x 2 |
| Chassis form factor | 4U |
|---|---|
| Material | SGCC |
| Drive Bay External | 5.25" drive bay x 6 |
| Power Supply | PS2 / ATX / Mini Redundant (supports up to 200mm) |
| Limitation of CPU cooler | Limitation of CPU cooler |
| Expansion Slot | Standard profile PCI / PCIe x 7 |
| Front buttons | Power On / Off, system reset |

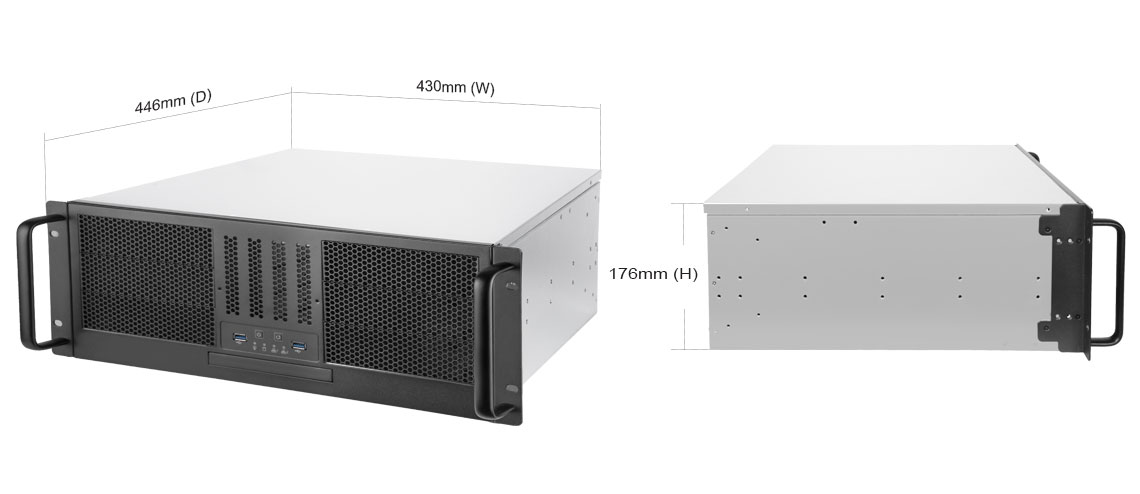

| Dimension | 430mm (W) x 176mm (H) x 446mm (D) |
* The RM41-506 has two rows of mounting holes for sliding rails. If you wish to align RM41-506 in one whole U position as opposed to leaving half U height top and bottom, please secure rails to the bottom row of mounting holes.
