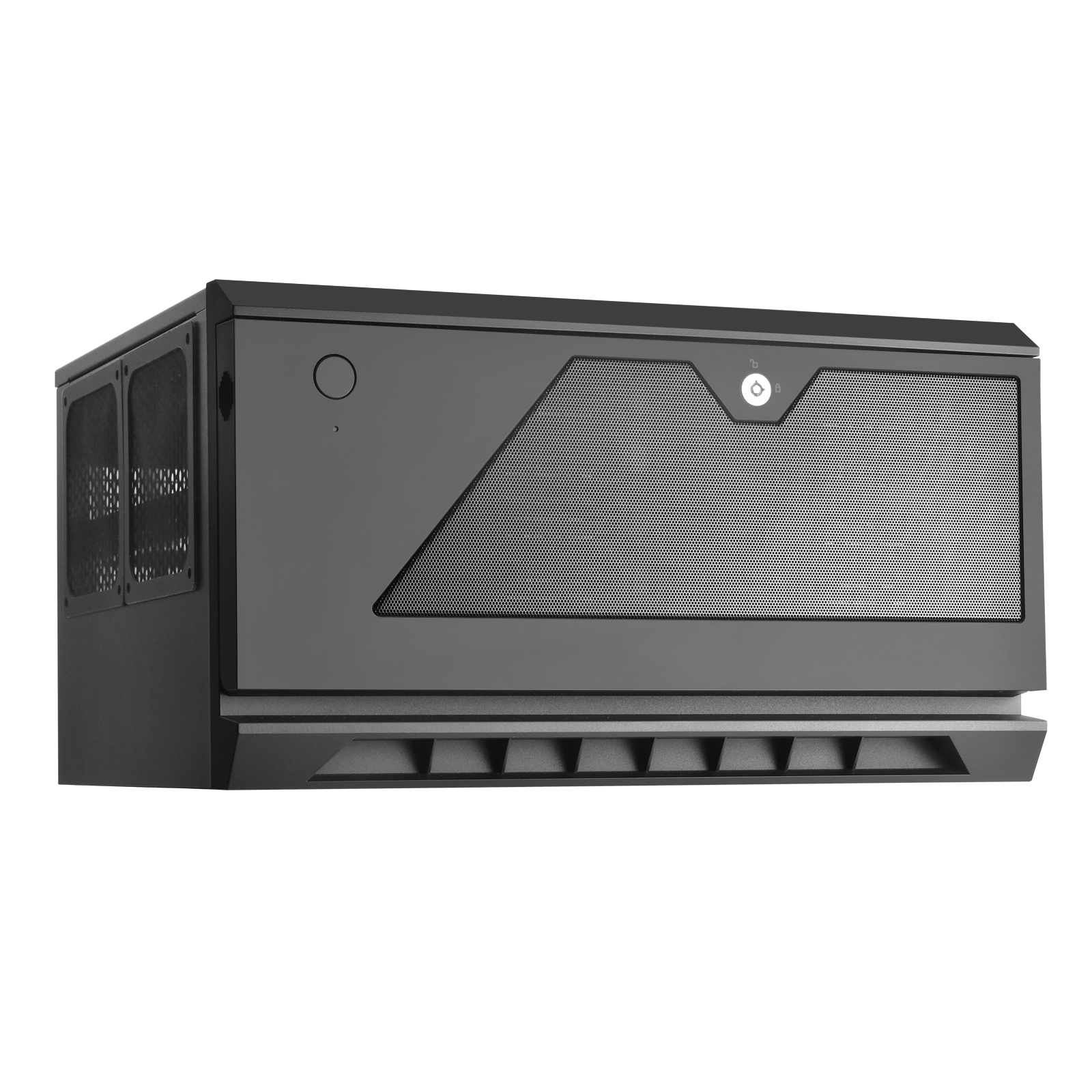

SilverStone CS381
- Support up to 12 drives in unprecedented 30 liter Micro-ATX chassis size
- Designed for vertical or horizontal position, allow users to freely place CS381 anywhere
- Includes two long-life (L10, 70,000 hours) dual ball bearing 120mm fans

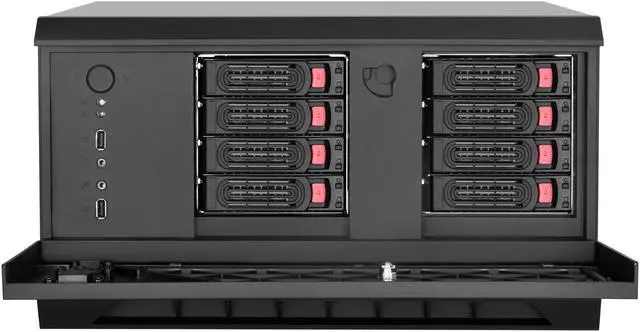

- Hot-swap drive trays support up to eight 3.5" or 2.5" SAS-12G / SATA-6G drives with two LED indicators for displaying drive status
- Accommodates SFX or SFX-L power supply

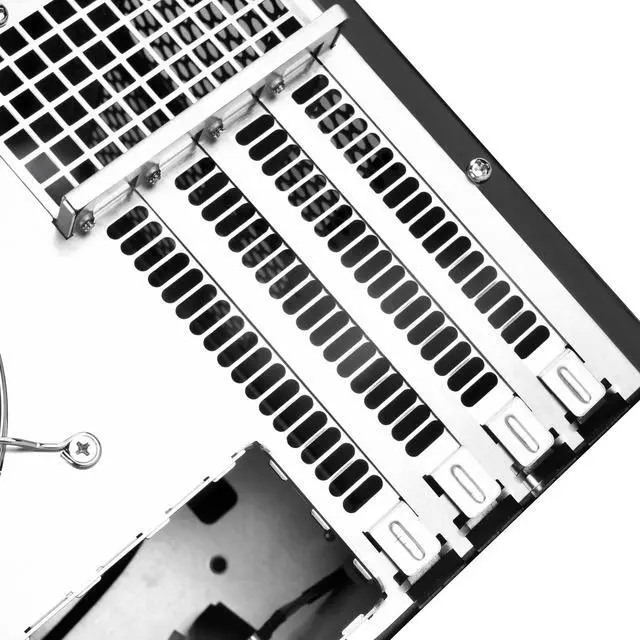

- Support normal height expansion slots for installation of cards up to 267mm long
- Kensington lock on front panel for additional security
Product Specifications
| Model No. | SST-CS381 |
|---|---|
| Drive Bay: External | 3.5" / 2.5" SAS / SATA external hot-swapping x 8 |
| HDD backplane | Mini-SAS HD SFF-8643 36 pin connector x 2*/** |
| Power Supply | SFX / SFX-L PSU (sold separately) |

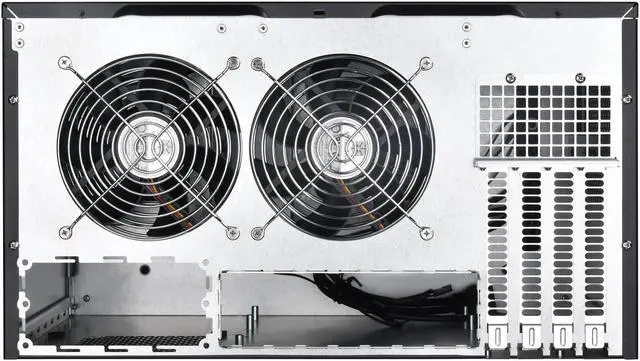

| Cooling system: Rear | 2 x 120mm 1300rpm 28dBA dual ball bearing fan Life time 70000hr (L10) |
| Radiator support | Rear: 1 x 120mm or 1 x 240mm |
| Expansion card | Up to 10.5" (266.7mm), please refer to manual for more details |
| LED indicator | Power ON: Blue, Accessing: Red blinking, HDD Power LED : Red, HDD Access : Blue blinking |
| Motherboard | Micro-ATX, Mini-DTX, Mini-ITX |
|---|---|

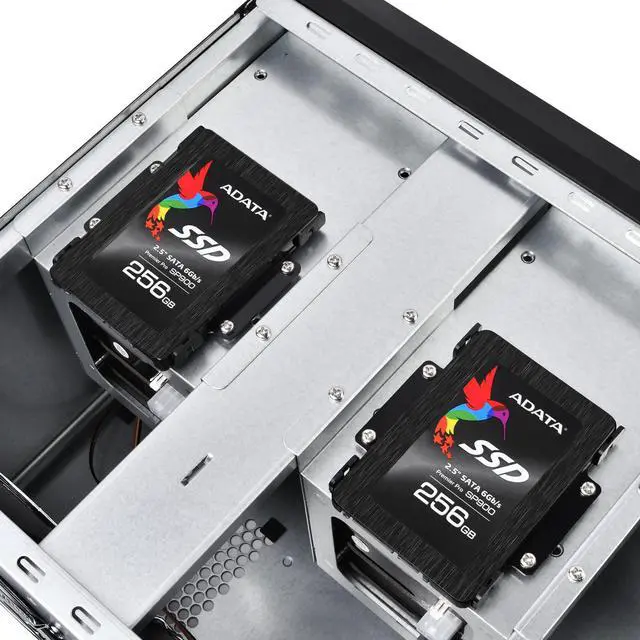

| Drive Bay: Internal | 2.5" (5mm ~ 15mm) x 4 (2 on left racks) |
| HDD Interface | SATA drive upto 6 Gbit/s (depends on drive speed), SAS drive upto 12 Gbit/s (depends on drive speed) |
| Limitation of PSU | 130mm |
| Cooling system: Side | 2 x 120mm or 3 x 80mm fan slot (optional) |
| Limitation of CPU cooler | 57mm*** |
| Front I/O Port | USB 3.1 Gen 1 x 2 , audio x 1, MIC x 1 |

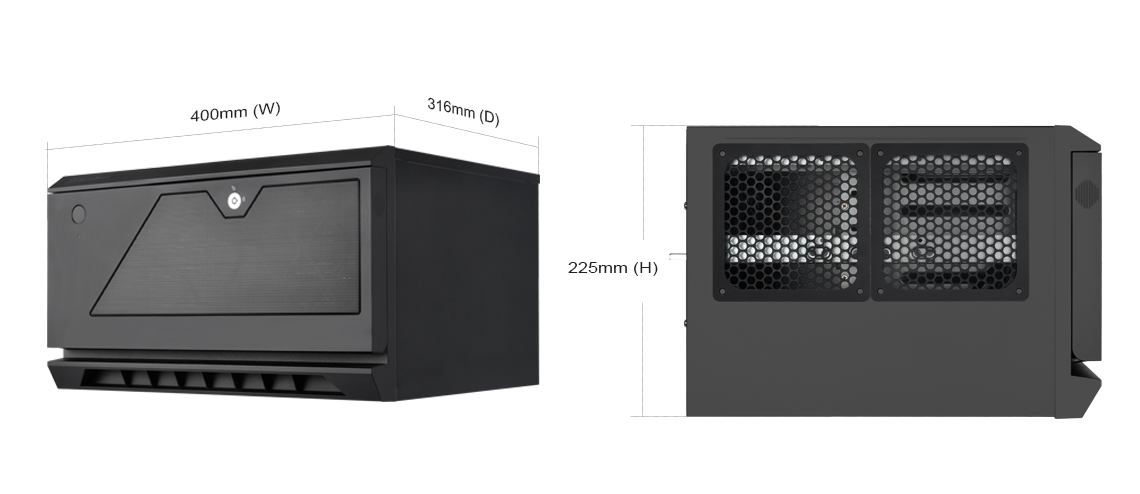

| Dimension | 15.75" (W) x 8.86" (H) x 12.44" (D) , 28 Liters |
* Please note the directionality of MINI SAS cables used, cables such as CPS05-RE is recommended for use with SATA ports on motherboard.
** MINI-SAS HD ports on backplane are not compatible with U.2 ports on motherboards.
*** If CPU cooler used has top-down airflow direction, please make sure there is at least 10mm of clearance above the fan for sufficient air intake.
