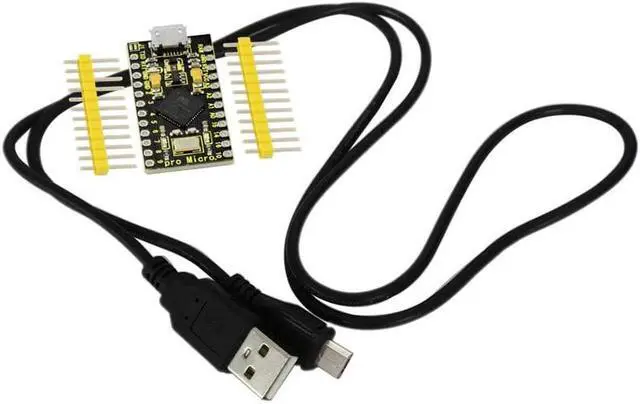

KEYESTUDIO Pro Micro Atmega32U4 with USB Cable for Arduino Projects
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
WHY CHOOSE KEYESTUDIO!
1. EXCELLENT QUALITY
solder is very clean, everything is aligned nicely, all boards are well packed after function, voltage, current testing
2. COOL YELLOW BLACK DESIGN
The yellow trim is definitely a departure from the standard, dull, black boards, and the yellow silk screen on black mask really pops, making it easy to read the pin labels
3. REALLY SAFE
This board made from environmentally friendly components and materials, as well as environmentally friendly production technology
Specification

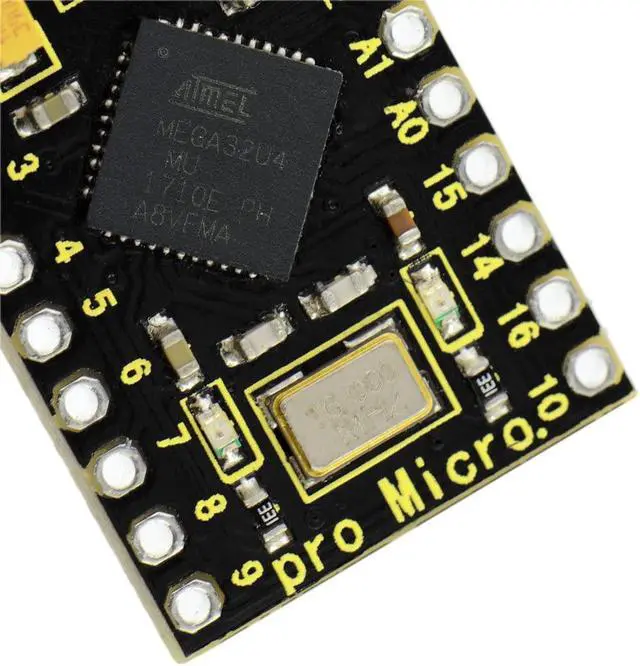

Microcontroller: ATMEGA32U4
RAW: 7V-9V
VCC: 3.3V at 500mA
Digital I/O Pins: 12 (of which 5 provide PWM output)
Analog Input Pins: 4
Maximum current for chip: 200mA
Maximum current per pin: 40mA
Recommended current per pin: 20mA
8-bit Atmel AVR
Flash Program Memory: 32kB
EEPROM: 1kB
Internal SRAM 2.5 kB
ADC: 10-bit
PWM: 8bit
High Speed PWM with programmable resolution from 2-11 bits
1. EXCELLENT QUALITY
solder is very clean, everything is aligned nicely, all boards are well packed after function, voltage, current testing
2. COOL YELLOW BLACK DESIGN
The yellow trim is definitely a departure from the standard, dull, black boards, and the yellow silk screen on black mask really pops, making it easy to read the pin labels
3. REALLY SAFE
This board made from environmentally friendly components and materials, as well as environmentally friendly production technology
Specification
Microcontroller: ATMEGA32U4
RAW: 7V-9V
VCC: 3.3V at 500mA
Digital I/O Pins: 12 (of which 5 provide PWM output)
Analog Input Pins: 4
Maximum current for chip: 200mA
Maximum current per pin: 40mA
Recommended current per pin: 20mA
8-bit Atmel AVR
Flash Program Memory: 32kB
EEPROM: 1kB
Internal SRAM 2.5 kB
ADC: 10-bit
PWM: 8bit
High Speed PWM with programmable resolution from 2-11 bits
