Arducam 1080P Low Light WDR USB Camera Module for Computer, 2MP 1/2.8” CMOS IMX291 100 Degree Wide Angle Mini UVC Webcam Board with Microphone, 3.3ft/1m Cable for Windows Linux Mac OS

The B0200 is a new member of the Arducam\u2019s USB camera family. It\u2019s a 2MP, UVC compliant, wide angle, low light, based on the 1/ 2.8 \u201d IMX291 image sensor high speed USB 2.0 camera.

SPECIFICATIONS

Camera
- Sensor: 1/ 2.8 \u201d IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H. 264
- Frame Rate: H. 264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
- Dynamic Range: 80DB

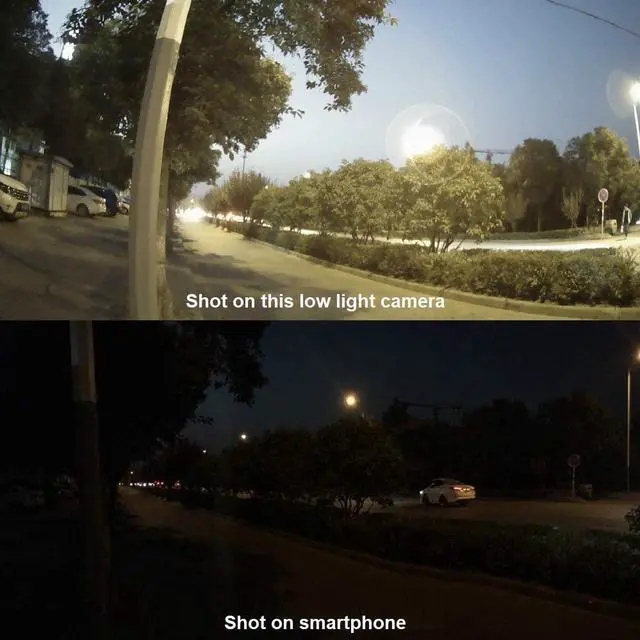

- Minimum Illumination: 0.001L ux

Lens
- Field of View (FOV) :D= 100°
- Lens Mount: M12
- Focusing Range: 3.3 ft (1M) to infinity
- IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Dual microphones
- System Compatibility: Windows, Linux, and
Mac with UVC (Android compatibility: contact us for support. )

Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA

Physical
- Operating Temp.: -4°F~167°F (-20°C~+75°C).

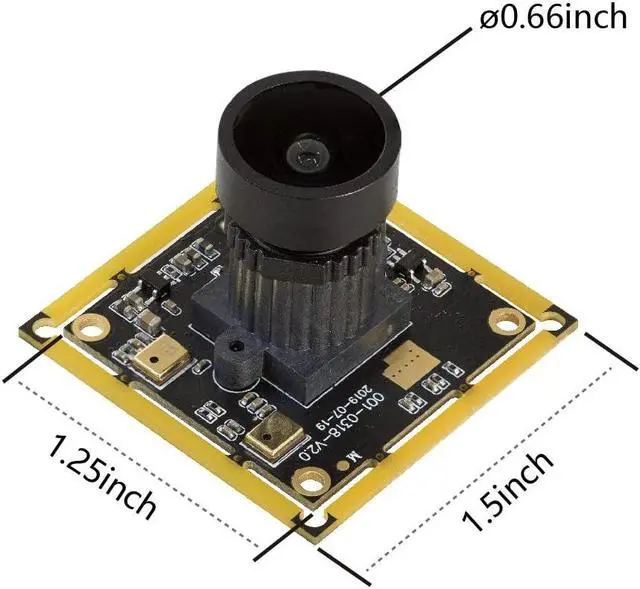

- Dimension: 36mmx36mm (Mount compatible with 28x28mm)
- Cable Length: 3.3 ft (1M)
