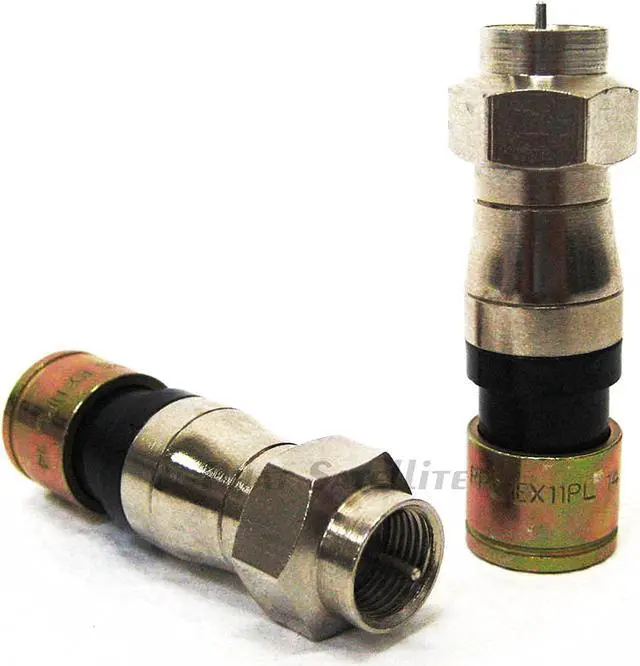

100 Pieces PPC Belden RG11 Plenum EX11PL Universal Compression Connectors
- Plenum Compression Connector for RG11 Plenum Coaxial Cables
- Two Piece Design. Anti- Corrosion Compression Connector
- EX11PL - RG11 60% Quad Shield Plenum
- Usage: HD Over the Air Antenna - DirecTV / Dish Network, and Other Satellite Usage Approve - Ham Radio, Short Wave Antenna Usage - Cable Modem Internet - HD Digital Cable TV - Cellular Boost Antenna - Speed Sensor
- Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
BELDEN PPC EX11PL Compression Connector for RG11 PLENUM Cable. FeaturesScrew Post design allows for easy installation of cable (RG11 Connectors)Large tapered compression area creates a redundant moisture-tight interface, keeping moisture outEPDM o-ring sealPrecision stamped four finger spring contactGeneral SpecificationBandwidth:
0 MHz to 3 GHzImpedance (nominal):
75 OhmsCable Retention:
45 lbs (20.41kg) minimumReturn Loss:
Minimum -30 dB to 3 GHz Insertion Loss:
Less than .10 dB to 3 GHzOperating Voltage:
90 V (at 60 Hz continuous ACOperating Temperature:
-40°F to +140°FCable Range:
RG11 60% through Quad-Shield PlenumPlease See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
0 MHz to 3 GHzImpedance (nominal):
75 OhmsCable Retention:
45 lbs (20.41kg) minimumReturn Loss:
Minimum -30 dB to 3 GHz Insertion Loss:
Less than .10 dB to 3 GHzOperating Voltage:
90 V (at 60 Hz continuous ACOperating Temperature:
-40°F to +140°FCable Range:
RG11 60% through Quad-Shield PlenumPlease See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
