10PCS 3.5mm Replacement Repair Plug Jack, Wire bonding, Stereo Channel, Audio Plug, Stereo Plug 3.5mm Solder Type DIY Audio Cable Connector for Headphone Headset Earphone Cable Repair
- 1/8 inch 3.5 mm stereo male plug audio connector, soldering type.
- It is very suitable for replacing worn earphone plugs or making cables of the required length or replacing damaged connectors.

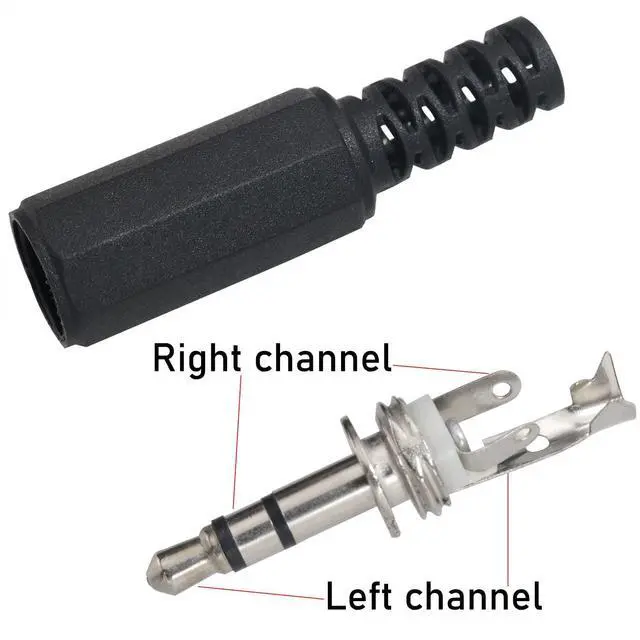

- Wiring diagram: pin 1, tip left channel; Pin 2, ring ring right channel; Pin 3, sleeve connected.
- Easy to handle: insert the cable into the sleeve, weld the bare wire and plug together, then twist and lock in place.

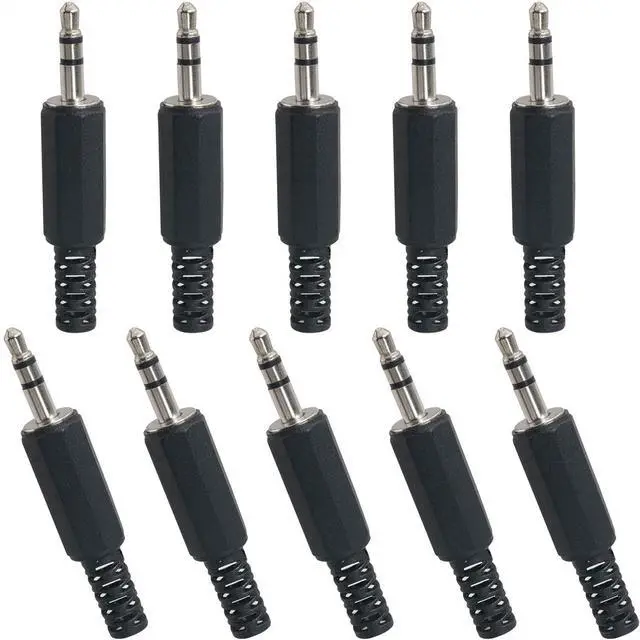

- Package content: 10 pieces of 3.5mm replacement plug jack, welded stereo 3-pole male plug.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product name: Two-channel plug
Working temperature: -40 degrees Celsius+85 degrees Celsius
Product model: 3.5-3 section headphone plug
Shell material: plastic shell
Rated voltage: 30V
Accessories: main body + shell
Rated current: 1A
Connection method: welding
Contact resistance: no more than 30mS
Connector type: 2.5mm-3 section
Connector material: nickel plated
Insulation resistance: not less than 100m
Withstand voltage: 50-60Hz
Function: 3 sections with stereo
Wiring diagram: PIN 1, Tip-left audio; PIN 2, Ring-Ring audio; PIN 3, casing ground
