8K@60Hz KVM Switch 3 Monitors 2 Computers 4K@144Hz, DP 1.4 8K Displayport Triple Monitor KVM Switch for 2 Computer Share 3 Monitor, Audio Mic Port and 3 USB3.0 Devices, Wired Remote, 5V Adapter

Note: Each PC needs 3*DP+1*USB 3.0 cable be connected to get triple screens display properly. Adapters will be needed if your PC does not have 3*DP ports. This 2 computers 3 monitors KVM switch support the use of a variety of converters and docking station.

Features:

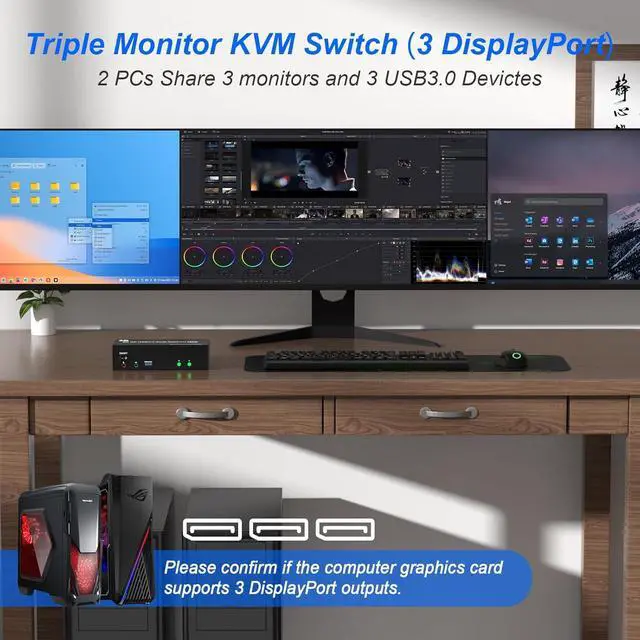

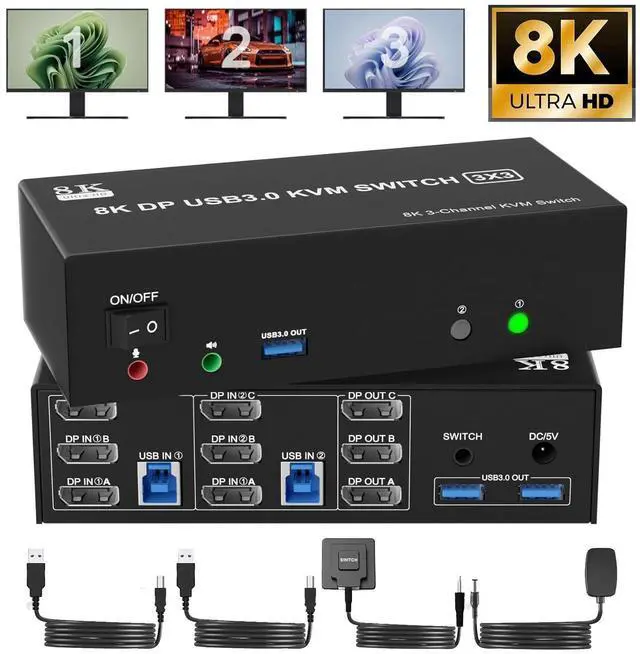

1. 8K Triple Monitor KVM Switch allows 2 computers/laptops to share one set of keyboard, mouse, and 3 monitors (3 DisplayPort)

2. Support DP 1.4 standards and downward compatibility. 3 monitors output support up to 8K@60Hz for extended, mirrored or spliced display(Depends on your computer's graphics card. );

3. 2

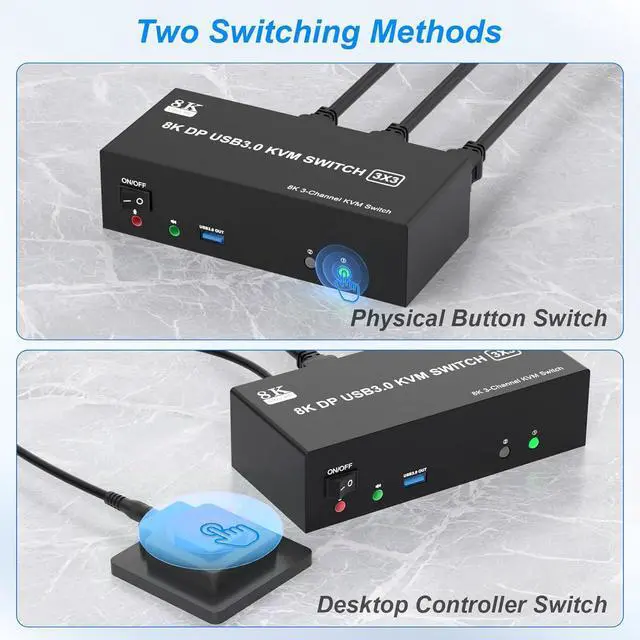

Switching modes: Button switch and wired remote.

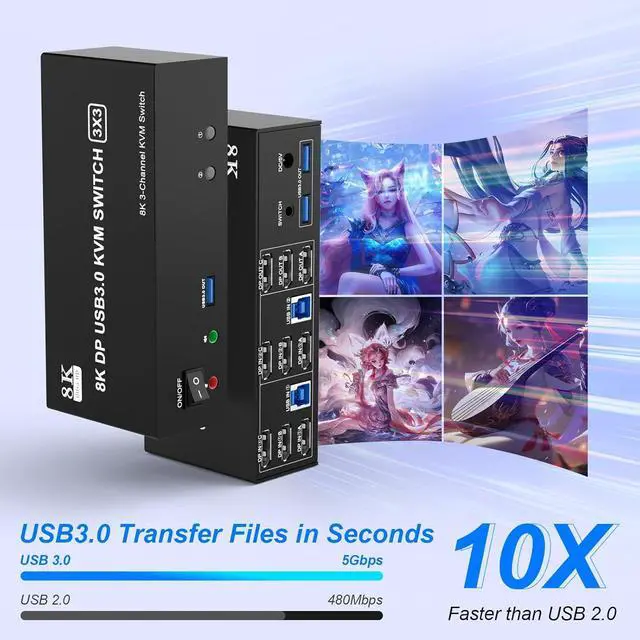

4. KVM switch equipped with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output

5. Equipped with a 5V power supply, ensuring stable operation even when high-power devices are connected.

6. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS

7. The ports that need to plug in DisplayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean workspace.

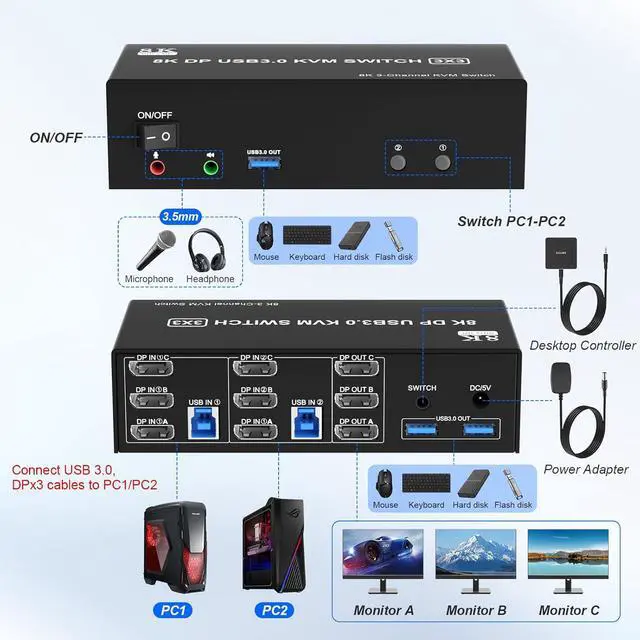

installation steps:

1. Insert the DC/5V adapter into the KVM;

2. Plug the 3*DisplayPort cable into the KVM switch and monitor; (Output)

3. Plug the DisplayPort cable and USB cable into the KVM switch and your computer/laptop (DP cables are not included) (Input)

DP IN 1A +DP IN 1B + DP IN 1C + USB IN 1=PC1

DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2

Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port
