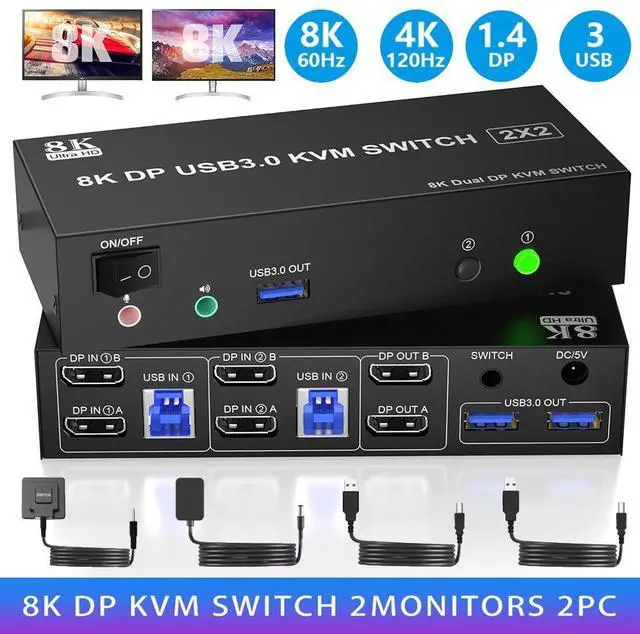

2 Port Displayport Dual Monitor KVM Switch, 8K@60Hz/4K@144Hz DP 1.4 USB 3.0 KVM Switcher for 2 Computers Share 2 Monitors and 3 USB Devices with Audio Microphone, Support Extended & Mirror Mode

2 Ports Dual Monitor DP KVM Switch for 2 computers share 2 monitors and 3 USB 3.0 devices and Audio & Microphone Output

Advantages:

2 computers share one set of wired/wireless keyboard, mouse and 2 monitors.

Support 8K@60Hz/4K120Hz.

Support extended and mirror display.

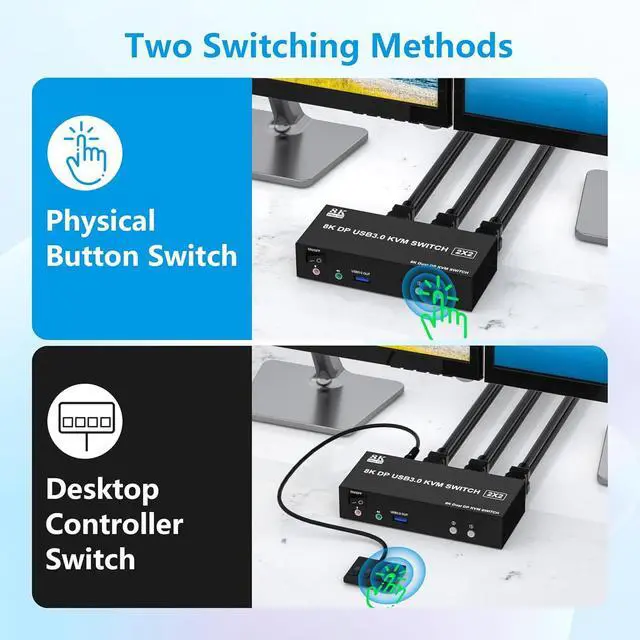

Switching modes: Button switch and wired remote, switch between 2 computers just need 2-4 seconds, fast and convenient.

Cross support most major OS including Windows, Linux, Mac OS.

Dual displayport KVM switch with 3 USB 3.0 ports for USB devices.

Support DP 1.4 standard, transfer rates up to 32.4G bps, backwards compatible with DP 1.2 standard.

With this 8K displayport KVM, the screens of the two monitors come from the same computer, and you can watch movies for entertainment while working.

Important tips:

1)If the DP source is input from DP IN A, it needs to be output from the DP OUT A. If the DP source is input from DP IN B, then it needs to be output from the DP OUT B.

2) If you want to output 2 monitors simultaneously, 2 DP ports of one DP source computer must be connected. Specifically, DP IN A and DP IN B of PC1 should be connected at the same time, and DP OUT A and DP OUT B of the output ends should also be connected simultaneously. DP OUT A display the video from DP IN A, and DP OUT B will display the video from DP IN B.

Installation Guide Tips (incorrect connection will cause malfunction):

Each computer must connection 2 DP cables and 1 USB cable to ensure keyboard, mouse and monitors to work correctly.

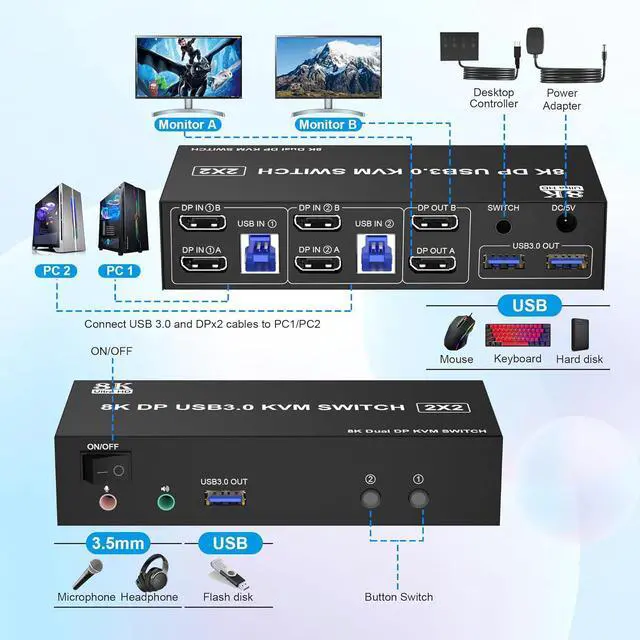

Connection steps:

1. Insert the adapter into the KVM;.

2. Connect 2*DP cables+1*USB-A cable between PC 1 and KVM (USB IN 1, DP IN 1 A, DP IN 1B).

3. Connect 2*DP cables+1*USB-A cable between PC 2 and KVM (USB IN 2, DP IN 2A, DP IN 2B).

4. Connect 2*DP cables between the KVM (DP IN 1 A, DP IN 1 B) and your 2 monitors.

5. Insert your USB devices (keyboard mouse and U disk) into the USB port on the KVM.

6. Insert the Wired Remote into the "SWITCH" port to remotely switch between PC1 and PC2.
