Mini Industrial 2 Ports Gigabit PoE Media Converter 12~48V DC Input Hardened 10/100/1000M 48V 30W PoE Ethernet to Fiber Optic Converter 802.3af/at Support 100/1000M SFP Module Auto Sensing

Be the first to review this product...

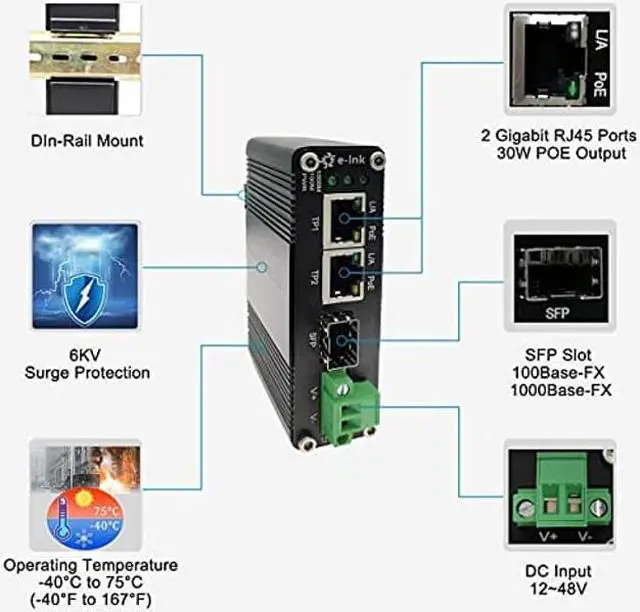

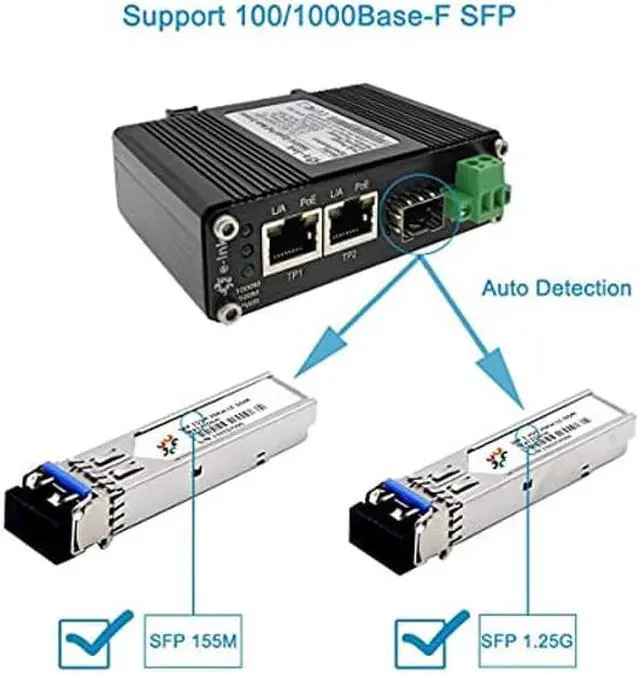

  • Auto Sensing 100/1000Base-FX - The SFP port Support both 155Mbps and 1.25G SFP module, it means you can use other device with 100M or 1000M fiber port on the other side.

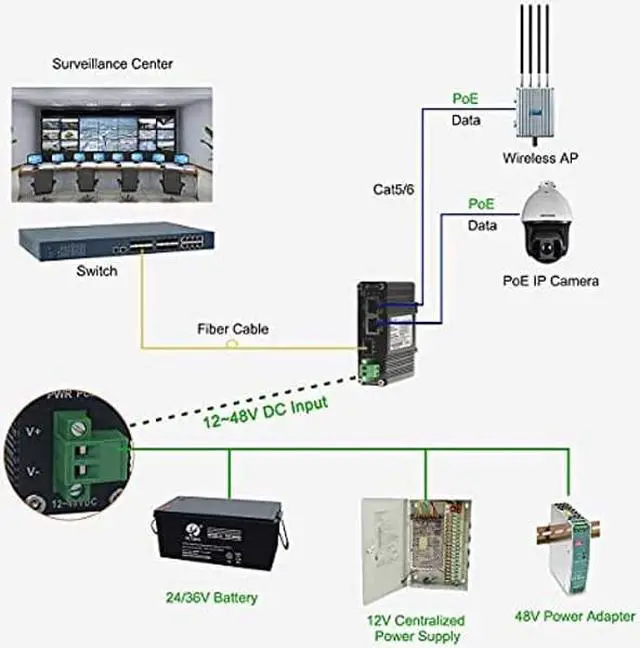

  • 12~48V DC Input - The PoE media converter support 12~48V DC Input and boost to 48V PoE output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply.
  • Industrial Grade Quality - Use industrial grade components and aluminum housing, it can work at wide range temperature -40degC to 75degC (-40degF to 167degF). You can use it in outdoor harsh environment.
  • Din-Rail & Wall Mount -The media converter come with 35mm Din-rail Clip and Wall mount accessories.

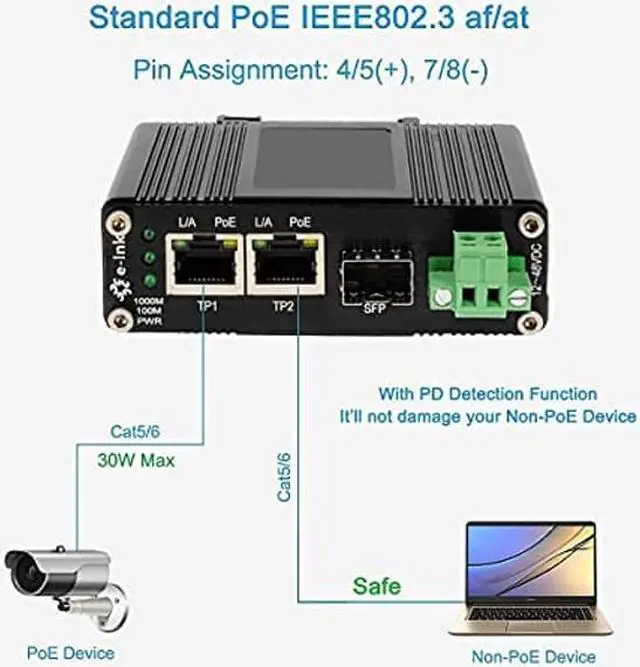

  • 10/100/1000M PoE Ethernet - This 2 Ports PoE switch support IEEE802.3af PoE (15.4W) and IEEE802.3at PoE+(30W), Fast Ethernet or Gigabit Ethernet Auto-negotiation
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Features:
2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
12~48VDC Terminal Block Power Input
Supports IEEE 802.3 af PoE ( 15.4W ) or IEEE 802.3 at PoE+ (30W)
Supports Link Fault Pass Through
9K Bytes Jumbo Frame
Supports DIN-Rail & Wall-mount installation
Environmentally hardened -40degC to 75degC (-40degF to 167degF) operating temperature
Non-standard PoE Fiber Media Converter customize accept



Specifications

:
Processing Type: Store-and-Forward
Standard: IEEE 802.3 10Base-T Ethernet, IEEE 802.3 u 100Base-TX/FX Fast Ethernet, IEEE 802.3 ab 1000Base-T, IEEE 802.3 z 1000Base-SX/LX Gigabit Ethernet
Packet Buffer Memory: 1Mbit
Max Packet Length: 9K Bytes.
Address Table Size: 2048K MAC Addresses
Ethernet Port: RJ45 10/100/1000Mbps Gigabit Ethernet
Optical Port: SFP - 100/1000M adaptive
Transmission distance: Depends on SFP module used
Input Power: 12~48VDC
Casing Material: Aluminum Case
Power consumption: <70W
Mini Size (WxDxH): 3.74 x 2.76 x 1.18 in (95 x 70 x 30 mm)

Note: SFP Module not included. If you have any questions or find the PoE media converter don't work, please contact us. Our professional technical staff will teach you how to use or help you find the problem and solve it.

Package:
LNK-IMC1200GP-SFP Mini Industrial PoE Media Converter x1
PoE Fiber Media Converter User's Manual
