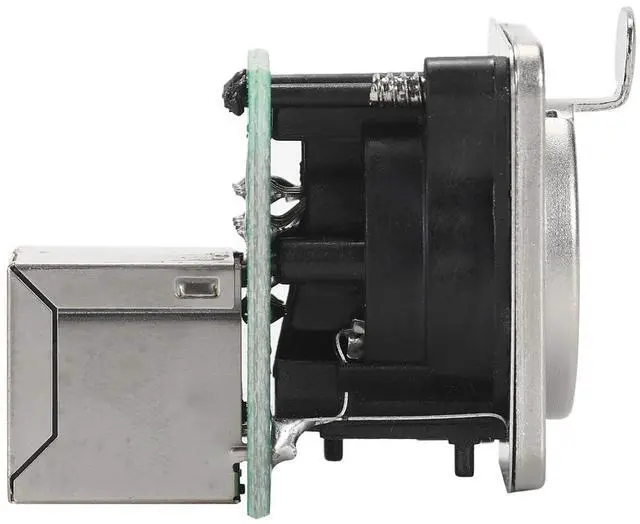

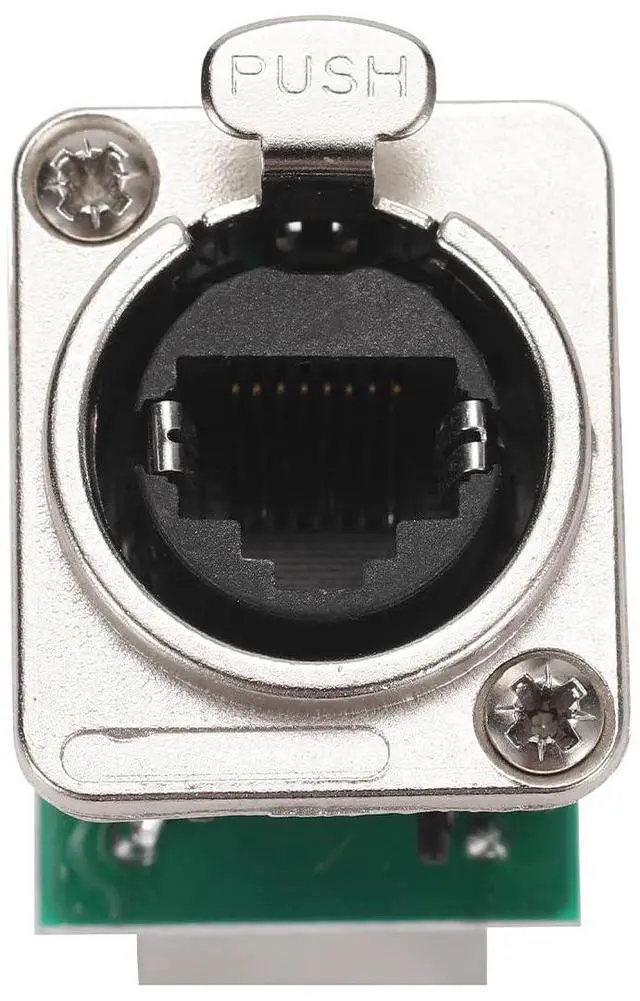

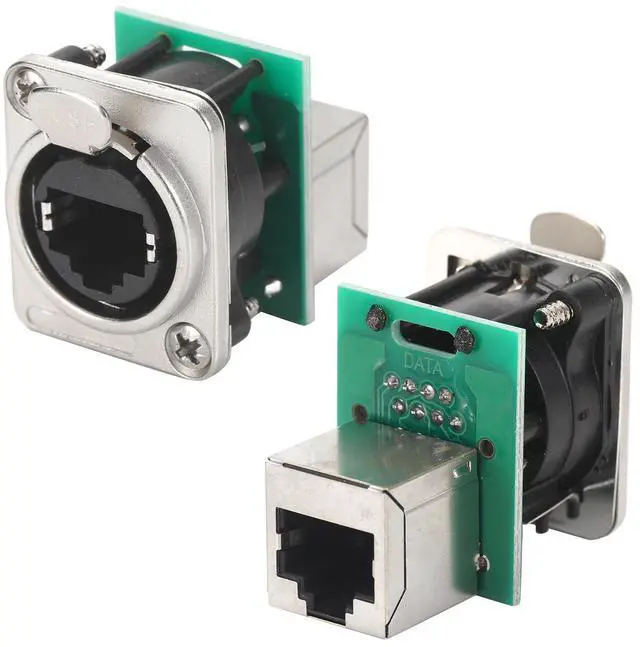

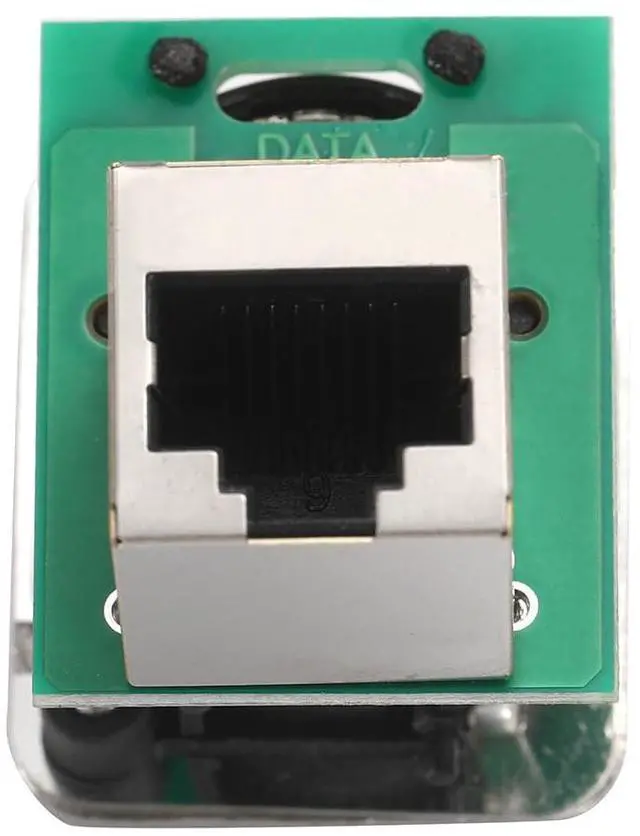

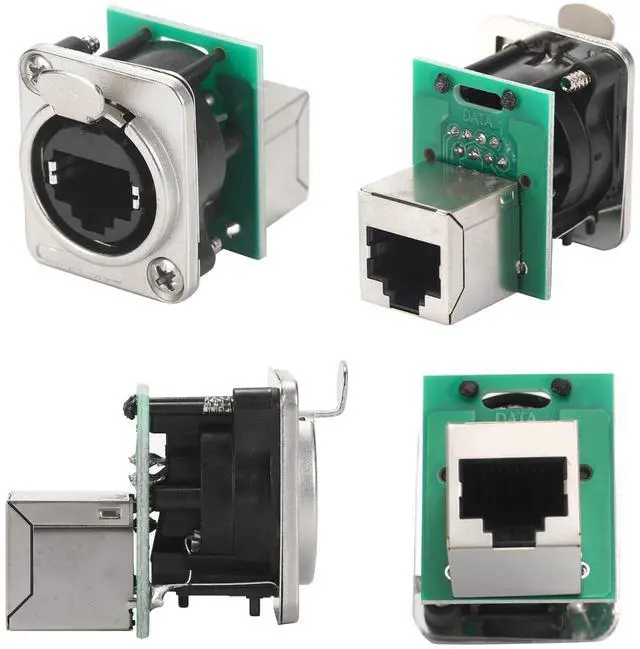

2PCS NE8FDP-B Ethercon RJ45 Chassis Socket, Pass/Feed Through D Series Cat5E Panel Mount Connector
- The NE8FDP RJ45 D-Series Panel Mount connector is a high-quality component designed to meet the demands of professional applications requiring panel-mount RJ45 connectivity.
- This product is made of Zinc diecast (ZnAl4Cu1). The copper needles use bronze solid terminals and the surface is 6 µm Au over Ni plating. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on. Guarantee the stability of the current.
- EASY INSTALLATION: No soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- Designed for use in various professional audio, video, and data networking applications.
- Quality Assurance: Professional waterproof connector manufacturer, with IP67 certification, CE certification, RoHS certification. The product undergoes rigorous inspection before leaving the factory.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The NE8FDP is a panel mount RJ45 connector from the D-Series. It is designed to provide a secure and reliable connection for Ethernet or other data communication applications where a panel-mounted RJ45 connector is needed. This connector is commonly used in professional audio, video, and data networking setups where robust and high-quality connectors are required.
Specifications:
Color: Black
Connect Port: RJ45
Cable Core: 8
Pins:8P8C
Connector transmission classification: CAT5, CAT5E
Transmission speed range: 10BASE-T, 100 BASE-T, 1000 BASE-T network
Rated current: 1.5A
Rated voltage: 50V
Insulation resistance: 500M
Dielectric strength: DC1000V
Contact resistance: 10m
Material:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: nickel plating/black electrophoretic paint
Contact material: Bronze (CuSn8)
Contact pin gold plating: 0.2 µm Au over Ni plating
Insulator material: PBTP 15 % GR
Environmental conditions:
Working temperature: -3080Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Mechanical parameters:
Insertion pressure: less than 20N
Withdrawal pressure: less than 20N
Service life: more than 1000 times
Connecting mode: Plug/Unplug
Flame retardance: UL94 V-0
Package Included:
2x PCB Signal Panel RJ45 Connector
