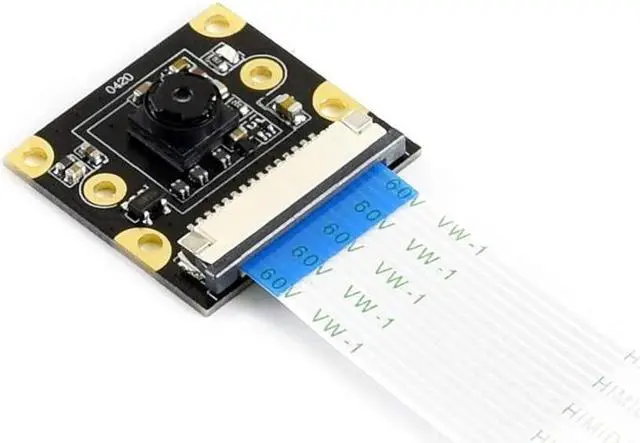

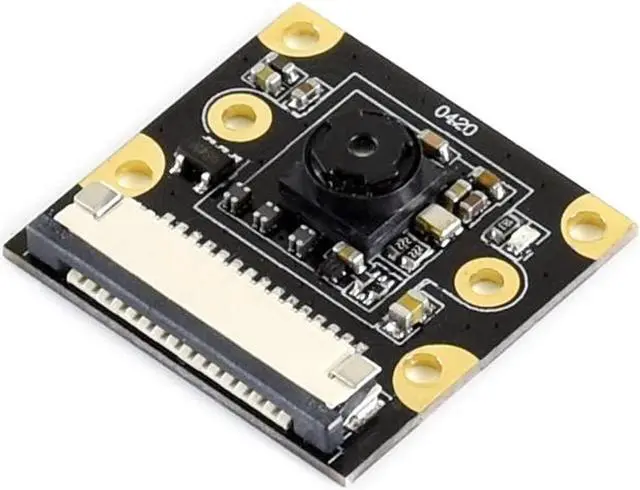

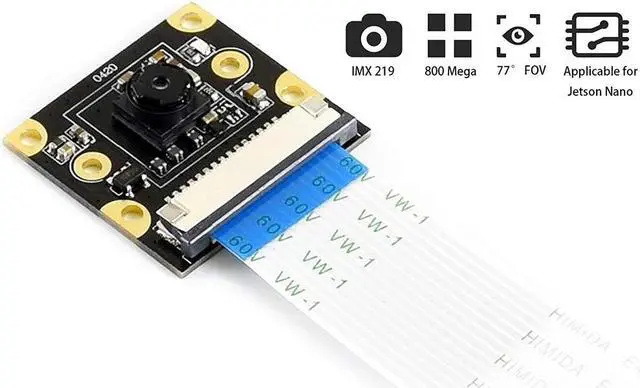

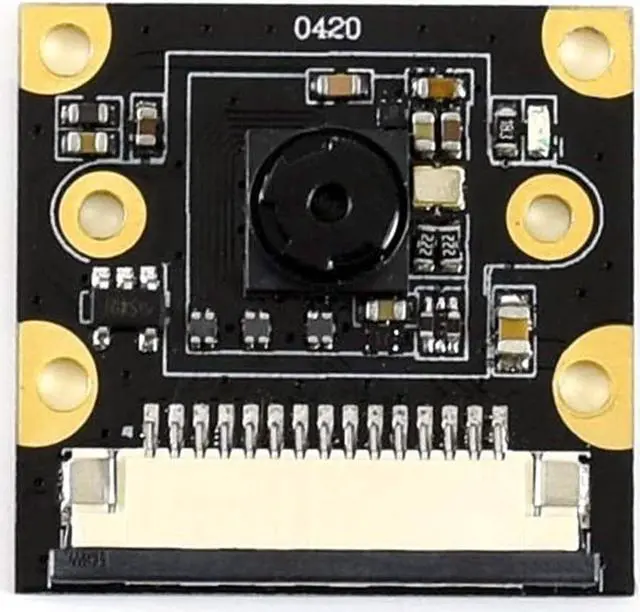

8MP IMX219-77 Camera Compatible with NVIDIA Jetson Nano and Raspberry Pi Compute Module 3/3+, 8 Megapixels Camera Module 3280×2464

8MP IMX219-77 Camera Features

Supports NVIDIA Jetson Nano Developer Kit, Compute Module 3/3+,(Note: Jetson Nano Developer Kit ,and CM 3/3+ are NOT included)
8 Megapixels
Sensor: Sony IMX219
Resolution: 3280 × 2464
Lens specifications:

CMOS size: 1/4inch
Aperture (F): 2.0
Focal Length: 2.96mm
Angle of View (diagonal): 77 degree
Distortion:< 1%
Lens dimensions: 6.5mm × 6.5mm

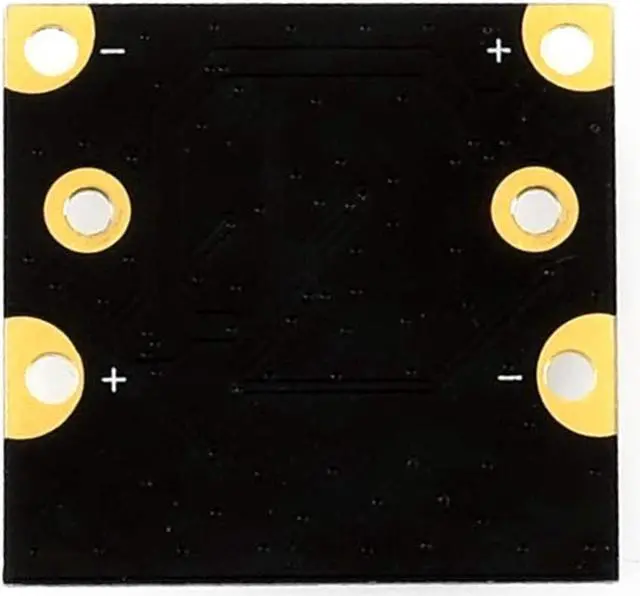

4 screw holes

Used for attachment
Provides 3.3V power output

Dimension: 25mm × 24mm

Applications

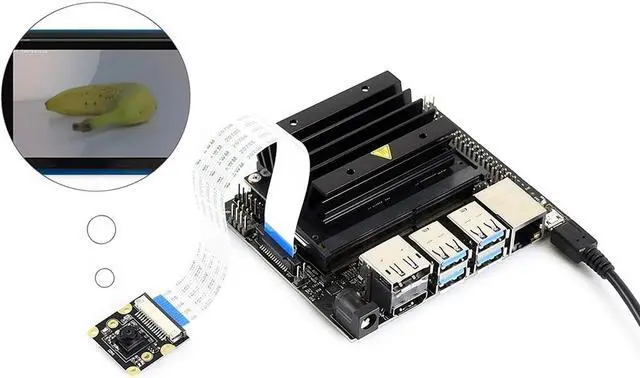

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:
Face recognition
Road mark detection
License plate recognition

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-77_Camera

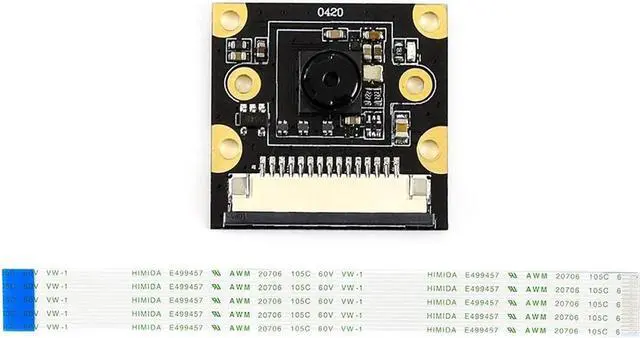

PACKAGE CONTENT

1.IMX219-77 Camera x1
2.15-pin FFC (opposite sides contact) x1

Note:

1.The included FFC is 16cm, if you need a longer cable, please consider: Raspberry Pi Camera Cable FFC 60cm
2.Technical Service is provided , please send us Amazon message if you have any questions ,thanks
