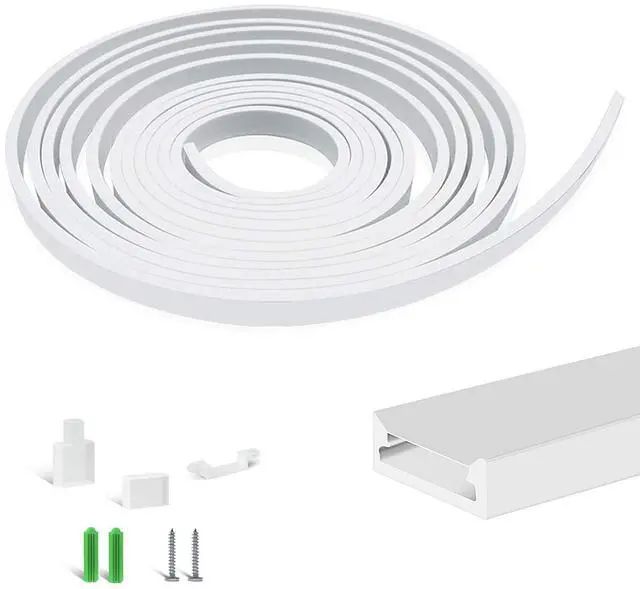

16.4FT/5M Silicone LED Channel System, U Shape 5x13mm DIY Neon Rope Light IP67 Waterproof Tube for 10mm Strip Lights Installation, for Indoor Outdoor Ambient Decor (LED Dot Visible)

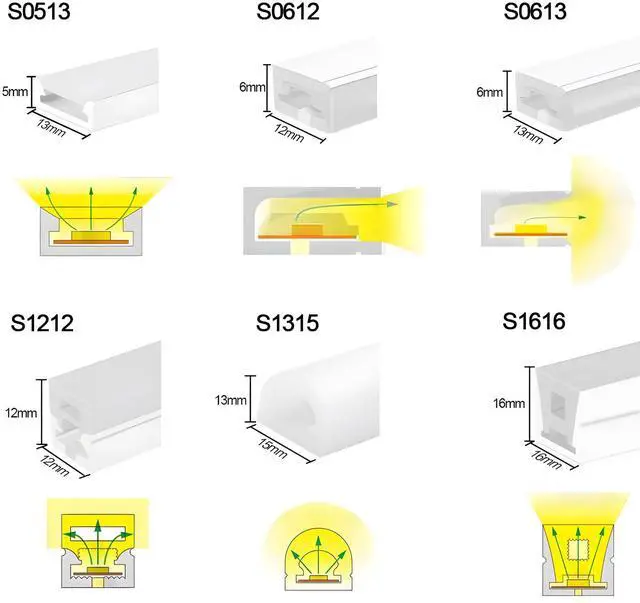

Fit for 10 mm Wide Strip: The S0513 LED channel system features a flexible silicone tube with an outer dimension of 13 mm (W)*5 mm (H); designed to fit 10 mm non-waterproof LED light strips (NOT included); front-glow structure may slightly reveal light spots; Please use a long nozzle dust blow gun to assist pass through

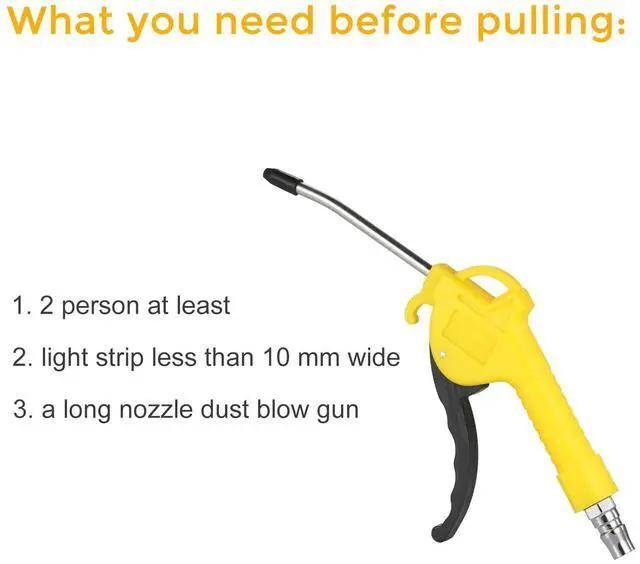

Quick Install with Long Nozzle Air Blow Gun: At least two person. We recommend using a long nozzle air blow gun to assist with the process; the fully enclosed silicone structure makes the LED strip fit tight, and installation becomes smoother with proper assistance. Additionally, the tube includes a 5M cotton pull cord pre-installed inside the tube for easy LED strip installation
New Design LED Channel: Flexible silicone LED channel systems (integrated in one piece) are a great alternative to traditional LED aluminum channels, offering a more aesthetically pleasing and space-efficient design; they can be bent freely and cut easily to create any custom shape
Waterproof & Durable: Made of high-quality flexible silicone, this LED channel is highly durable and wear resistant, offering long service life; IP67 waterproof rating ensures reliable performance for both indoor and outdoor use
Wide Application: Suitable for kitchens, living rooms, patios, bedrooms, closets, bars, cafes, display windows, cinemas, supermarkets, and more; IP67 waterproof rating supports reliable use in both indoor and outdoor settings

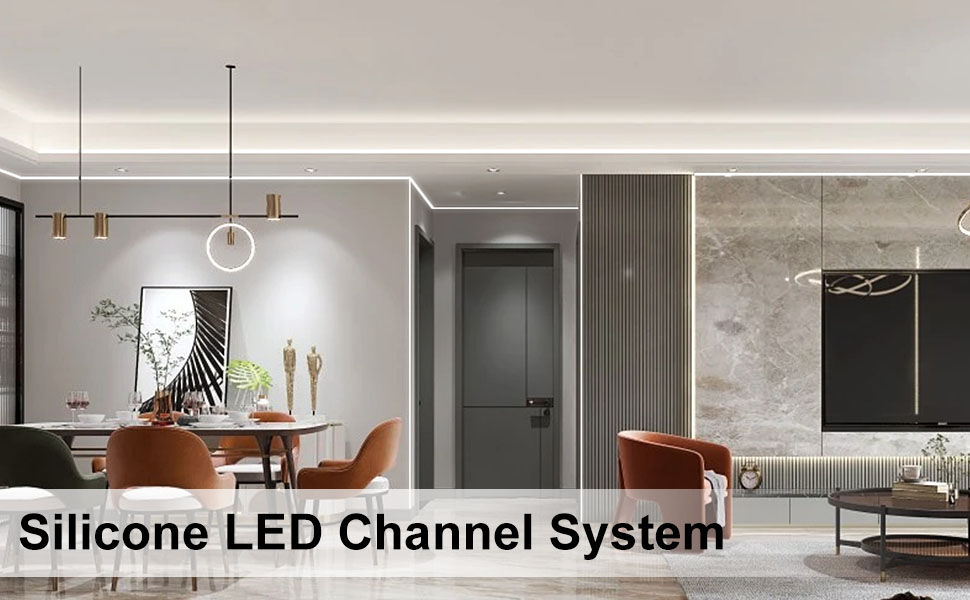

Overall picture of LED Silicone Channel System application

Features:

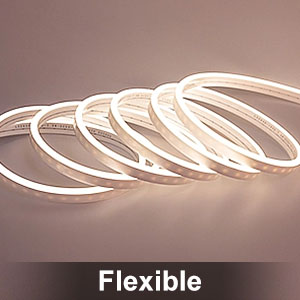

Flexible

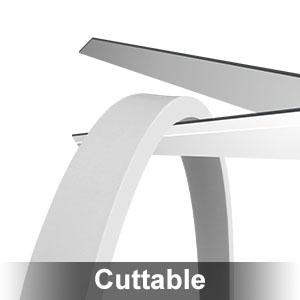

Cuttable

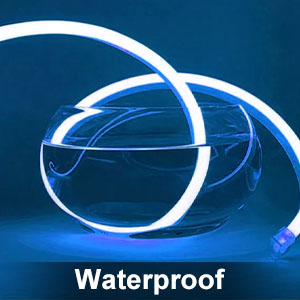

Waterproof

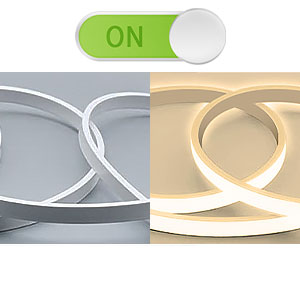

Specification:

Total length: 5M/16.4FT

Color: Milky white silicone (integrated one piece)

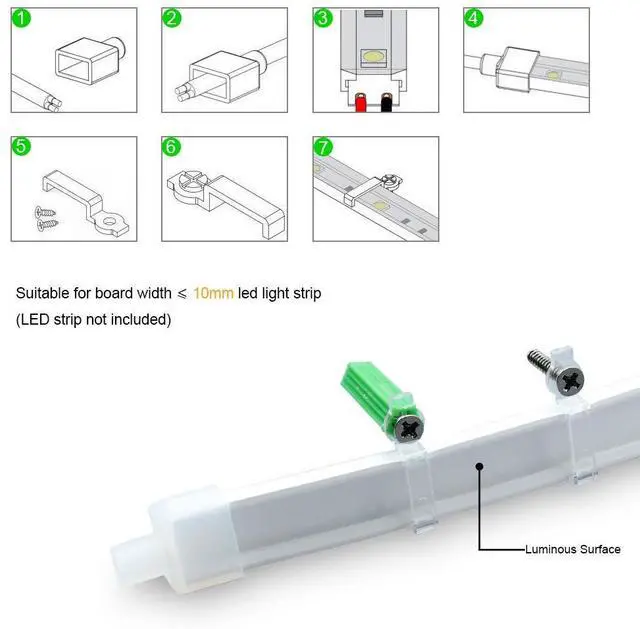

For Strip Width: =10mm

Beam Angle: 180 degree

Material: 100% Silicone

Waterproof: IP67

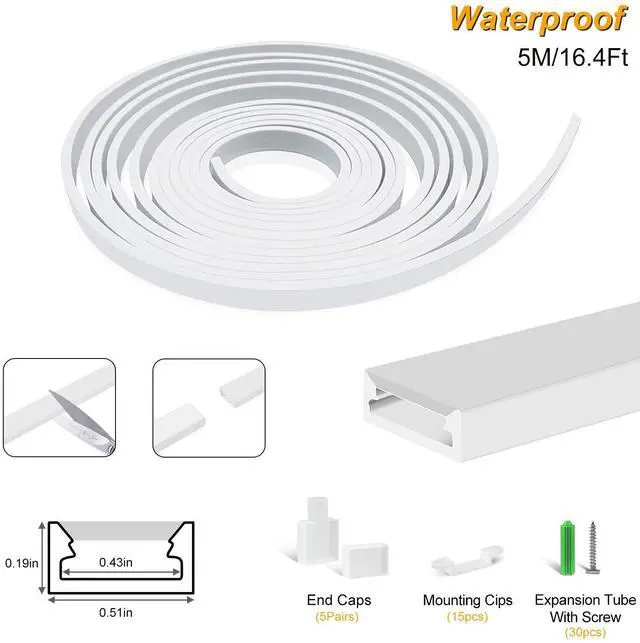

Outside Dimensions: 5 x13mm

How to pass the LED strip light through the silicone channel tube?

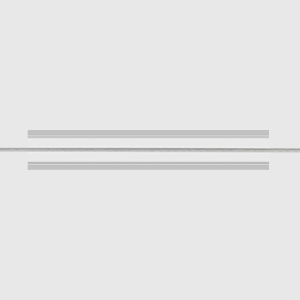

1. Lay the tube flat and straight, No knots or twists;

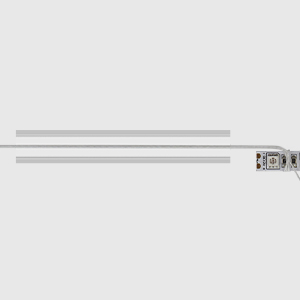

2.Tie up the LED strip with the tiny rope at one end of the tube

2. Tie up the LED strip with the tiny rope at one end of the tube; (Use LED strip without adhesive backing tape, or peel off the backing tape if it has, and wipe the PCB with alcohol for pass through easier)

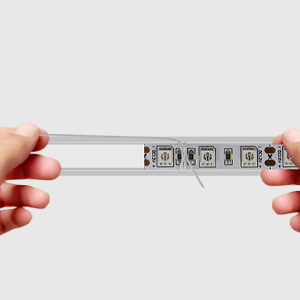

3.Pull the tiny rope at the other end of the tube to lead the strip through.

3. One person fix the tube end with strip and push on the strip slowly, one person pull the tiny rope at the other end of the tube to lead the strip through.

Tips:

* It is a little difficult to pass through the strip because of the toughness and elasticity of Silicone material, patience is very important for this DIY project.

* Choose suitable width of LED strip to pass through the silicone tube for great effect of lighting, wider ones can not insert into the tube, narrower ones will shake inside which makes the lighting flicker not stable.

* Two people is suggested to work out this.

* Do not pull the rope too hard while snaking the LED strip to avoid it broken inside the tube.

* Cut the silicone tube for length you need if you do not need whole 5 meters for DIY projects, but make sure the rope was reachable from both sides, do not let the rope slip.

Wide application:

Cinema

Home

Galley Dresser

Stairs
