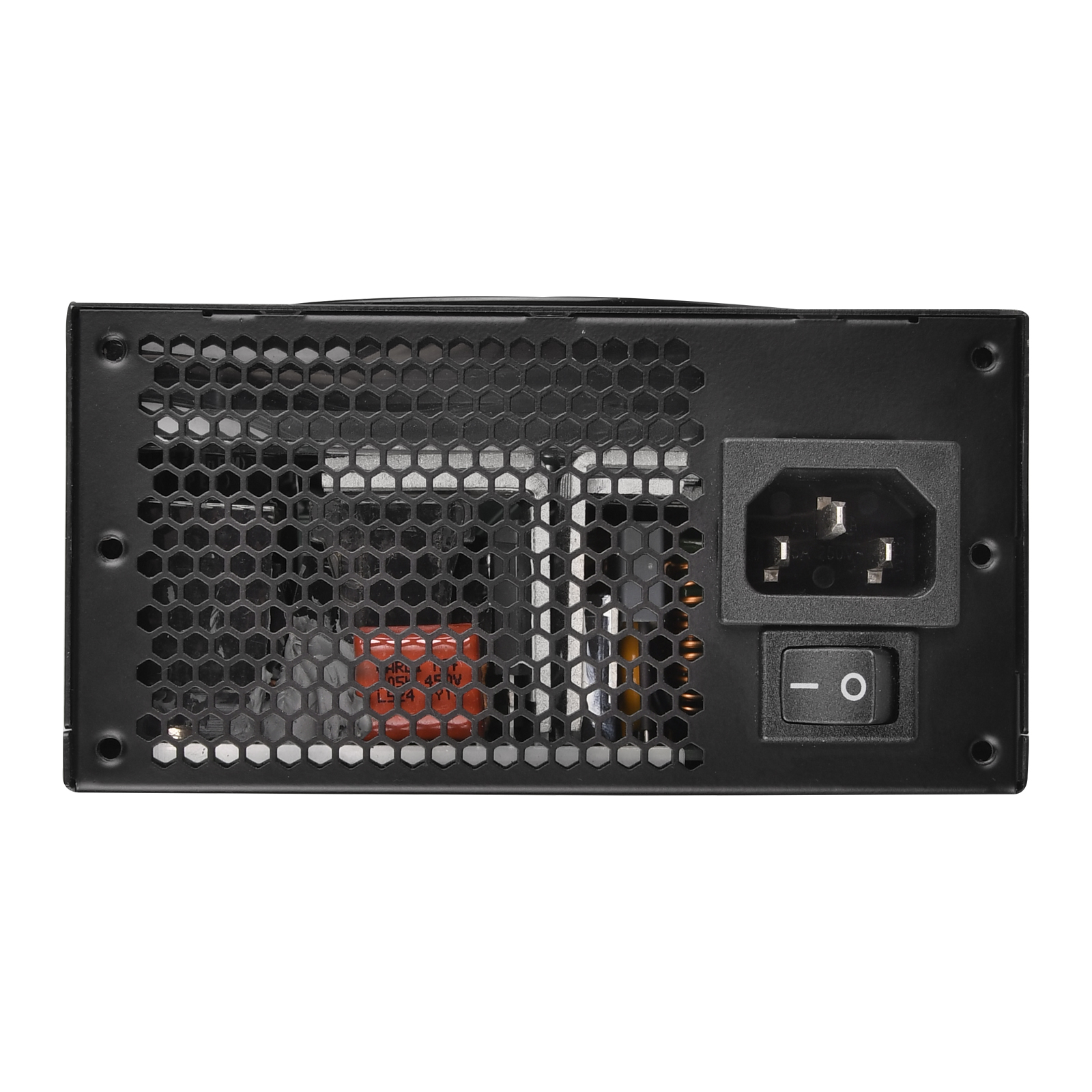

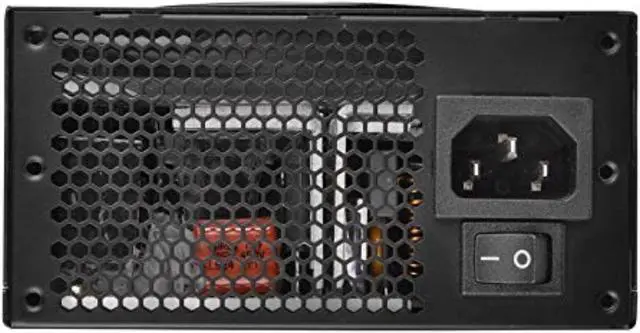

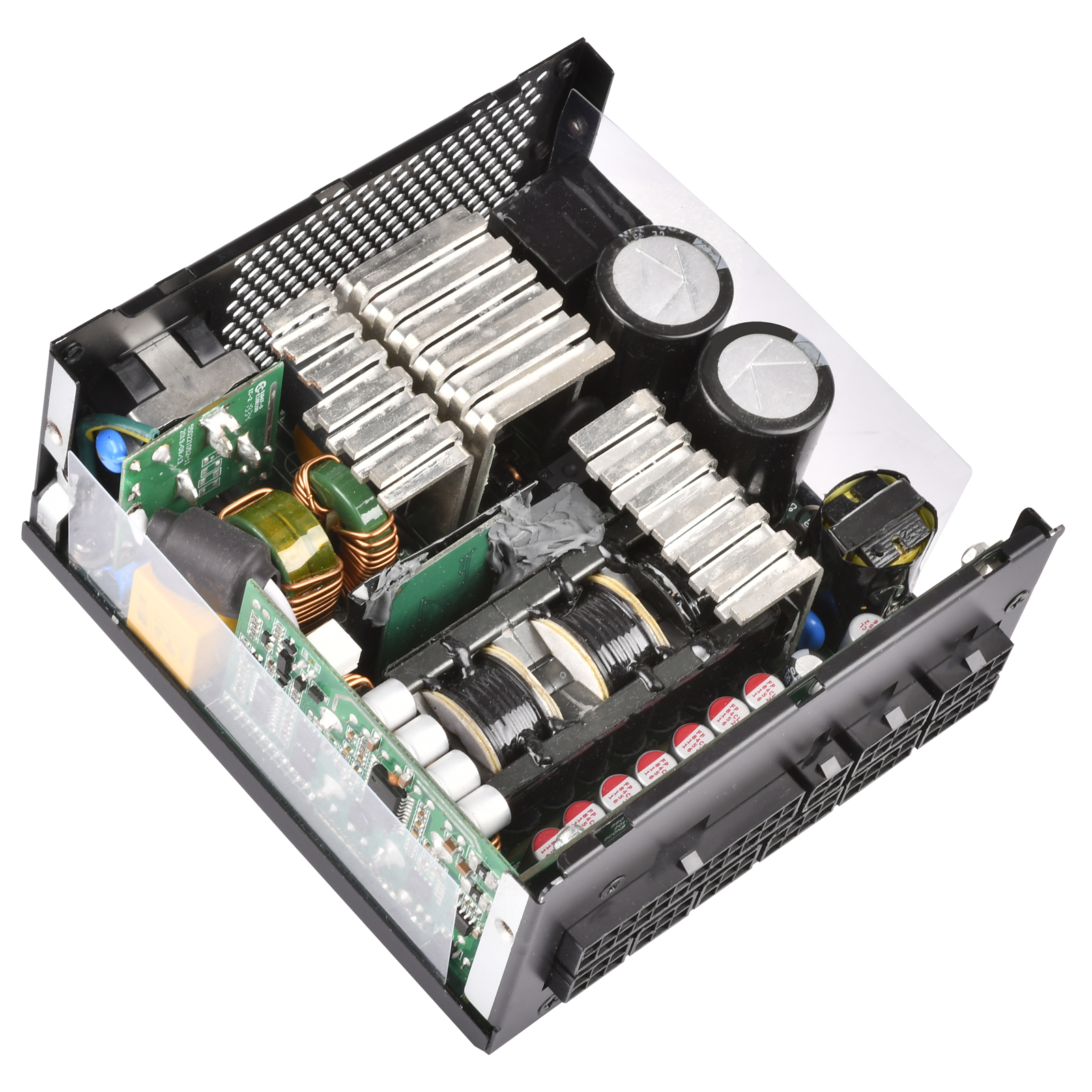

This specification defines ATX multiple output switching power supply. The parameters of this supply are defined in this specification for Family using. This specification defines max continuous output at 1000W with 100 to 240Vac input, power supply with five outputs; +3.3V, +5V, +12V, -12V and +5VSB. The +5V standby voltage, remote on/off control, full range line input capability.An IEC connector is provided on the external face for AC input to the power supply. The power supply contains fans for cooling, while meeting acoustic requirements.

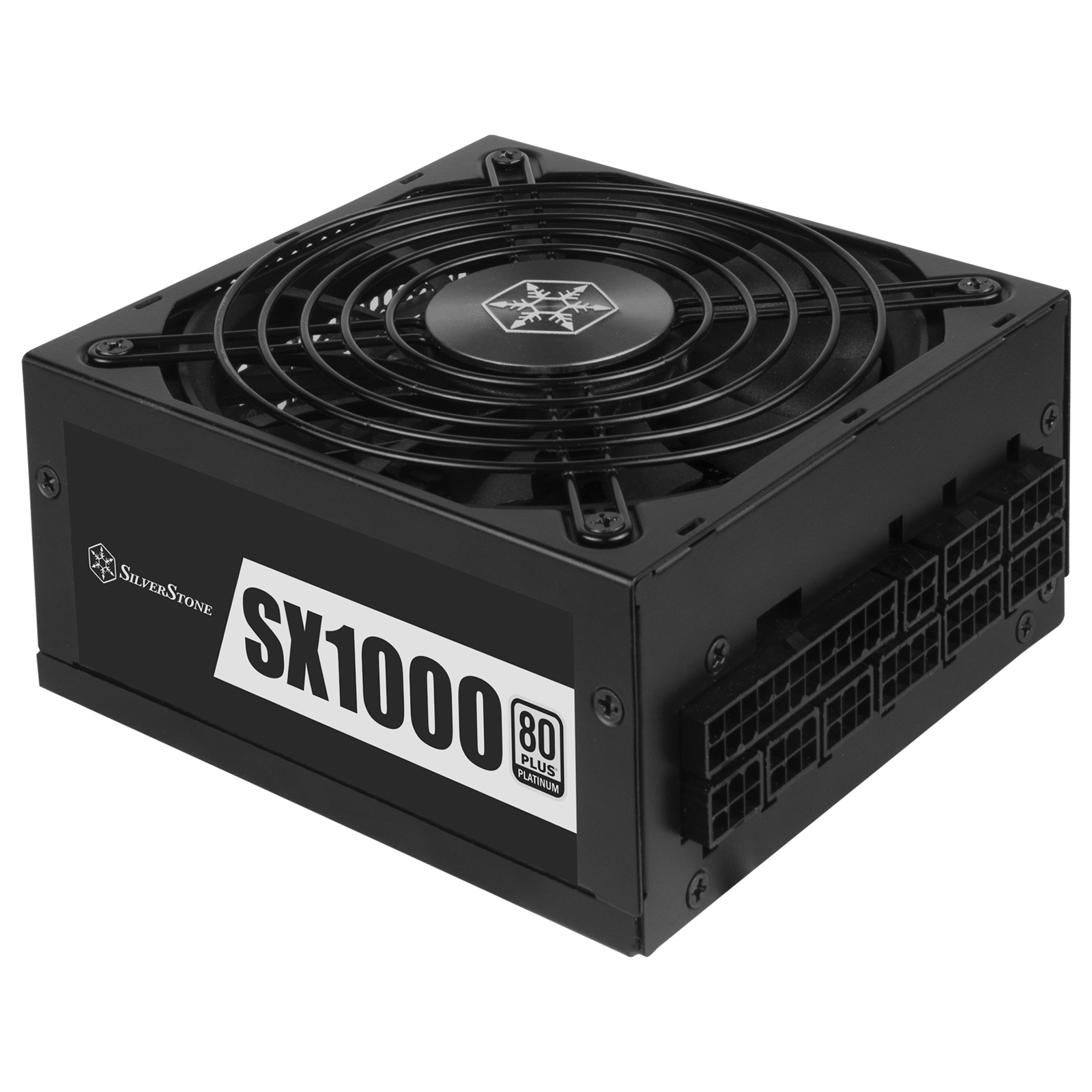

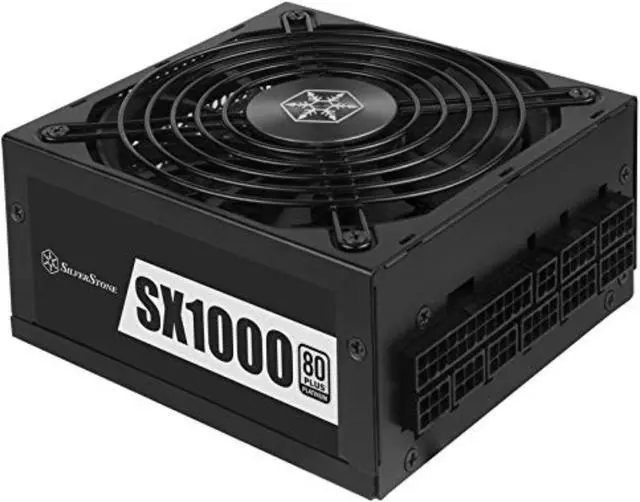

- SFX-L form factor for use in small form factor computers
- 1000W continuous power output rated for 24/7 operation
- Class-leading single +12V rail with 83.3A
- High efficiency with 80 PLUS Platinum certification

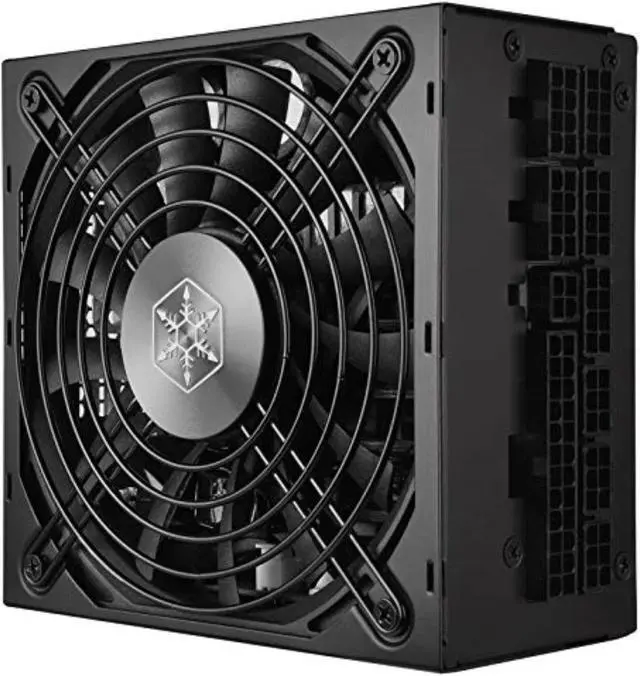

- Silent running 120mm dual ball bearing fan with advanced semi-fanless operation
- 100% modular short cables with flexible flat arrays
- Strict ±3% voltage regulation and low ripple & noise
- 1 x 24 / 20-Pin motherboard connector [300mm]
- 2 x 8 / 4-Pin EPS / ATX 12V connector [400mm" x 2]
- 6 x 8 / 6-Pin PCIE connector [400mm / 150mm" x 3]
- 8 x SATA connector [300mm / 200mm / 100mm / 100mm" x 2]
- 3 x 4-Pin Peripheral connector [300mm / 200mm / 200mm]
- 1 x 4-Pin Floppy adapter connector [100mm]

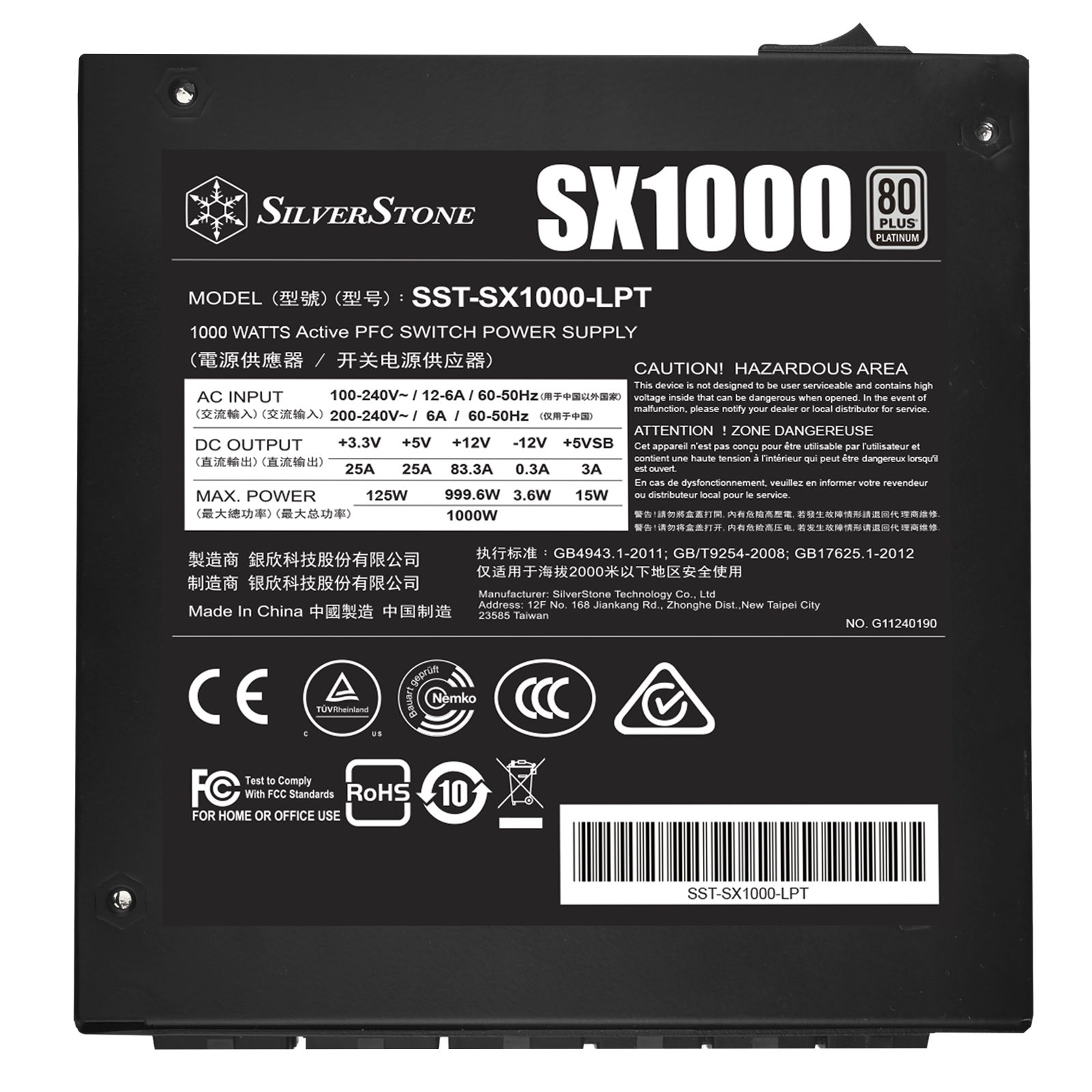

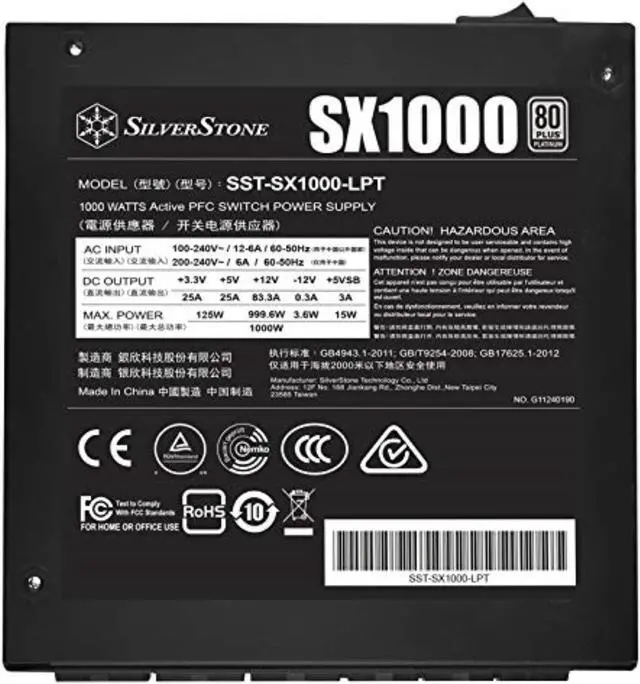

| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 25A | 25A | 83.3A | 3.0A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 100mV | 40mV | 80mV |
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Over temperature protection
Max. DC Output - 1000W
Power density - 969W per liter
Combined +3.3V & +5V - 125W
Combined +12V - 999.6W
Input Voltage - 90V ~ 264V
Input Frequency Range - 47Hz ~ 63Hz
MTBF - 100,000 hours
Operating temperature - 0°C ~ 50°C
Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.

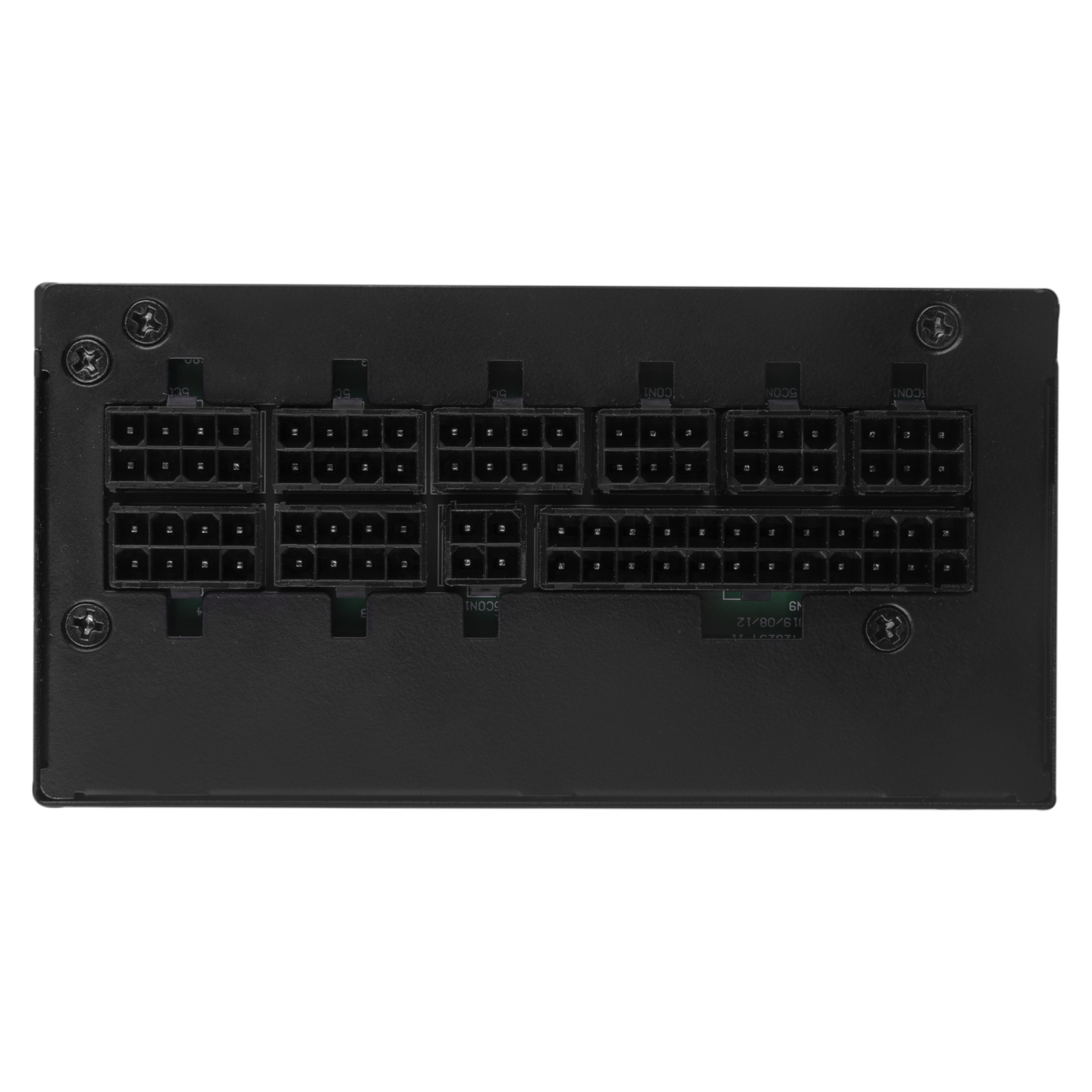

This PSUs motherboard connector includes a 4pin sense wire that needs to be connected to the PSUs modular interface as shown. Sense wire helps improve PSUs regulation performance by around 1%-2%.
