Aoicrie 10PCS 3.3V 5V Power Supply Module for MB102 102 Prototype Breadboard DC 6.5-12V or USB Power Supply Module

Description:

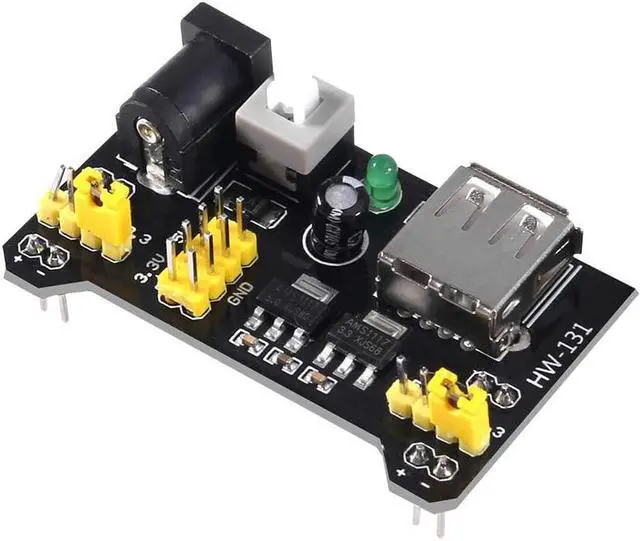

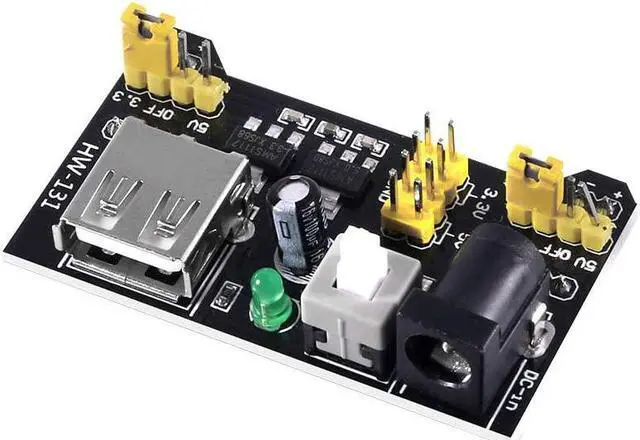

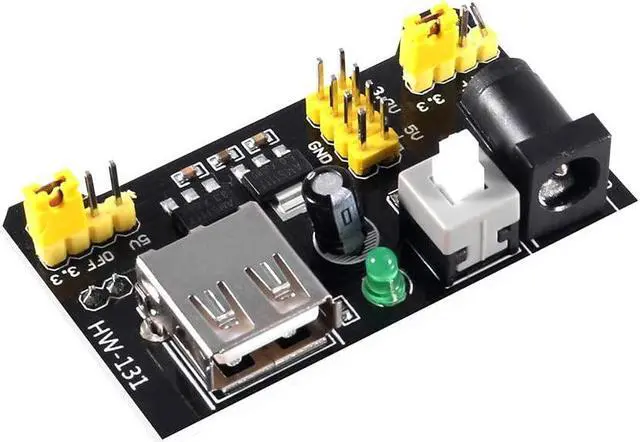

10Pack 3.3V/5V Power Supply Module provides dual 5 V and 3.3 V power rails, and has a multi-purpose female USB socket, can plugs directly into a solderless breadboard.
Very easy to use power supply board for use with the MB102 Breadboards. You have two separate power supplies 3.3v or 5v. You can have two different voltages or both can be set the same. The voltage outputs are set by jumpers on each output. The board can be powered from a wall wort power supply 6.5-12volts. Do not exceed 700ma current draw or you can damage the power supply board. The PS-MB102 works great for powering your Arduino or Raspberry Pi project boards. Features:
Apply to MB102 breadboard.
Locking ON / OFF Switch
LED Power Indicator
Two Groups of Header Pins
Input voltage: 6.5-12 V (DC) or USB power supply
Output voltage: 3.3V/5V can switch over
Maximum output current: <700Ma
Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V
On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads
A plastic lens is used for high sensitivity. Please Change the jumper cap position to select 5.0V or 3.3V Voltage.
Two ports of power output. You can switch the power voltage of both ports between 3.3V and 5V by the jumper cap.
There is a green LED to indicate the presence of power, and an ON / OFF latching switch to control the power to the board. Note:
1.12V is the voltage limit. If you use an AD-DC adapter, you're recommended to use 9V in case of unsteady voltage which may burn the board.
2.Be sure to orient the module correctly on the breadboard so that power lines up with the red stripes. It is easy to mount it on the wrong end.
Package Includes:

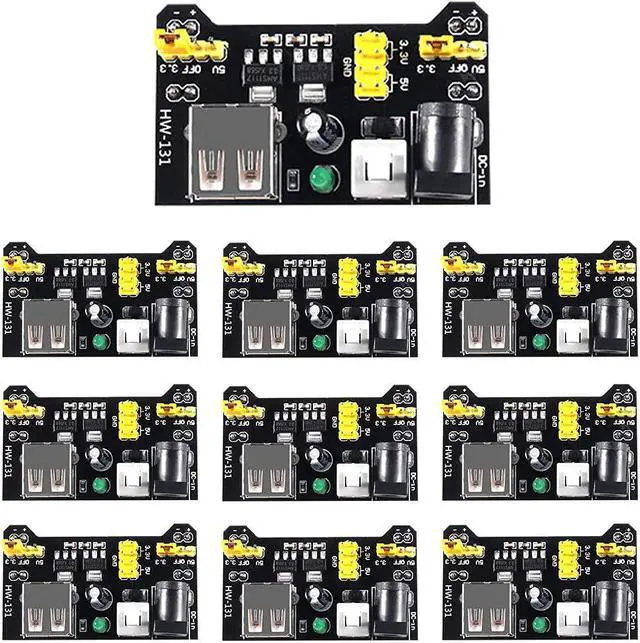

10Pcs x MB102 3.3V/5V Breadboard Power Supply Module
