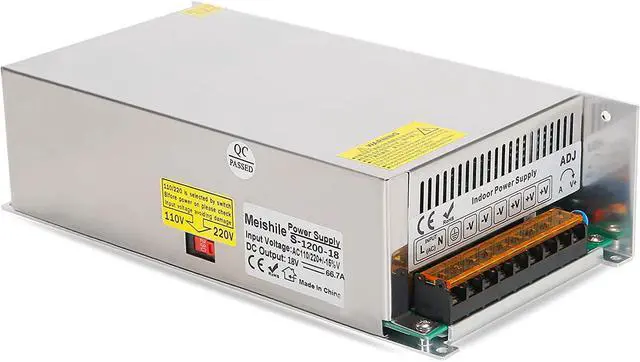

MEISHILE 18V 66.67A 1200W LED Driver Switching Power Supply (SMPS) 110V AC-DC MEISHILE Transformer Monitoring Power Supply Industrial Power Universal Type

Main Parameter


DC Output Range: 18V,066.67A

Rated Power: 1200W

Input voltage:110V85-145V

Range Of Difference:±1%

Efficiency: >80%

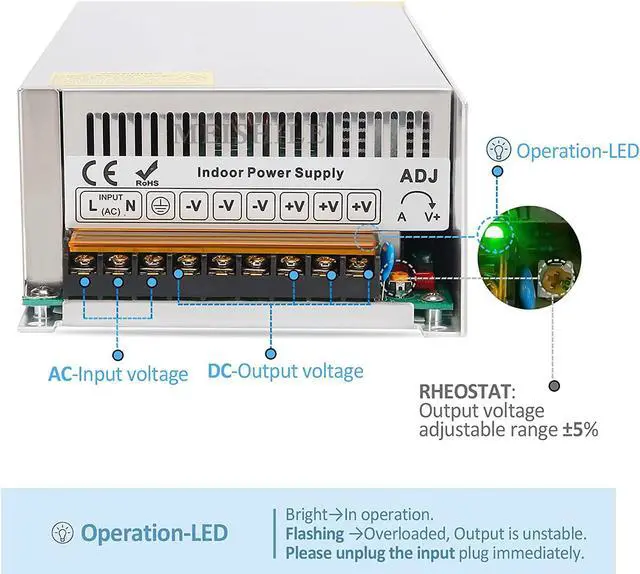

Output adjustable voltage range: ±3%

Frequency: 50-60Hz

Leakage current: <1mA/230V

Temperature coefficient: ±0.03%/050

Start, rise, hold time 200ms, 50ms, 20ms

Seismic resistance: 10500Hz,2G 10min, /1 cycle, time 60 points, each axis

Protection: overload, overvoltage, overcurrent, short circuit protection

Pressure resistance between input and output 1.5KvAC input and shell; 1.5KvAC output and shell; 0.5KvAC

The working temperature and humidity are between -10 and +60, and the temperature ranges from 20% to 90%RH

The storage temperature and humidity are -20 ~ +85, 10% ~ 95%RH

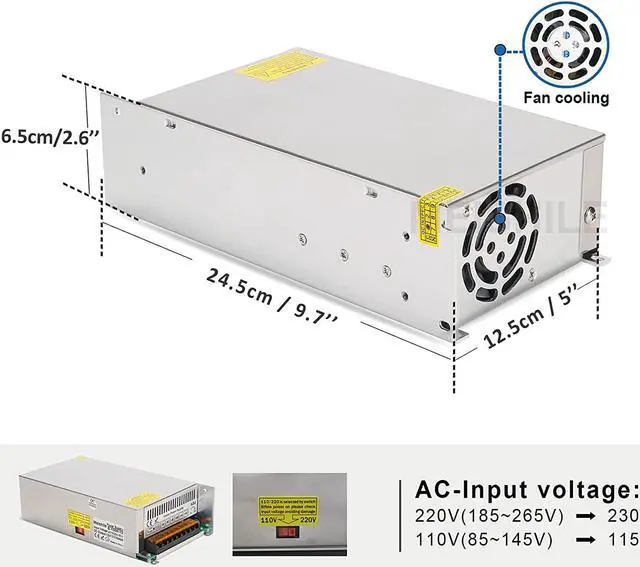

Product Size: 242*125*65mm

Product Weight: 1.5kg

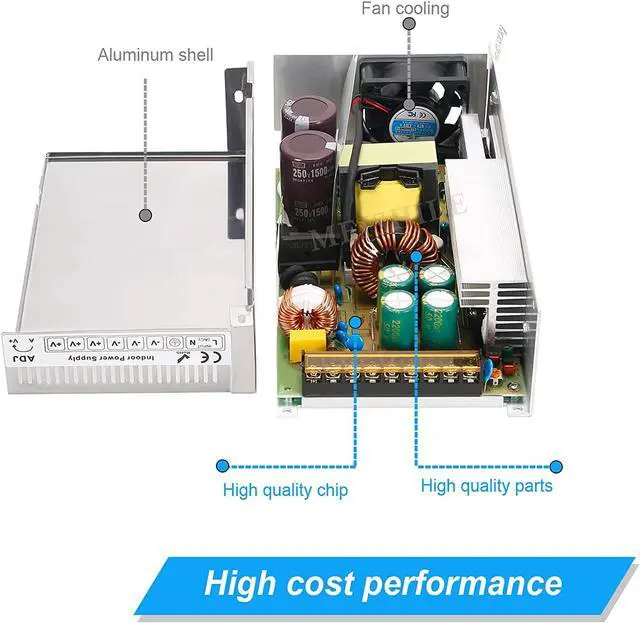

Note: This product has a cooling fan to perform a sound (the sound of a fan rotates)

Cautions:

It s suggested that total power consumption of the loads to be connected be not more than 80% of the rate power of product


Our company specializes in the production of transformers, switching power supply, industrial power supply, monitoring power supply, motor power, LED drive power, LED band, industrial lights, home lights, etc

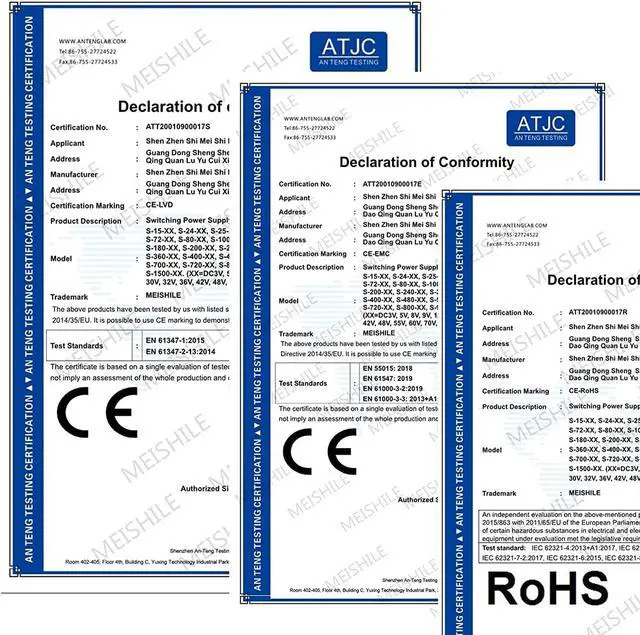

All products through CE, FCC certification, large quantity, more affordable price, welcome to consult and negotiate
