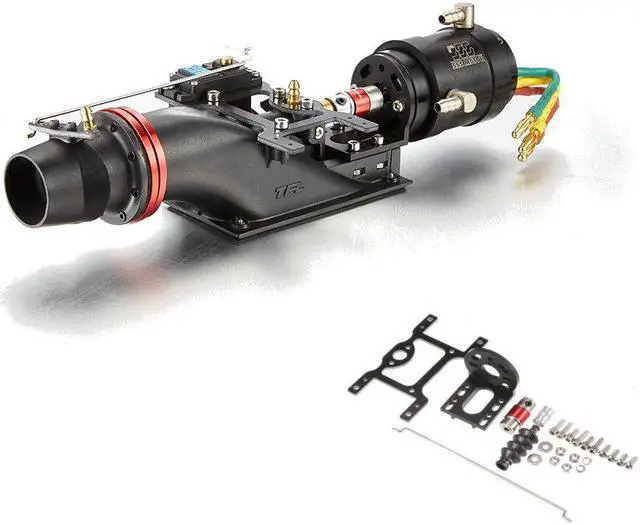

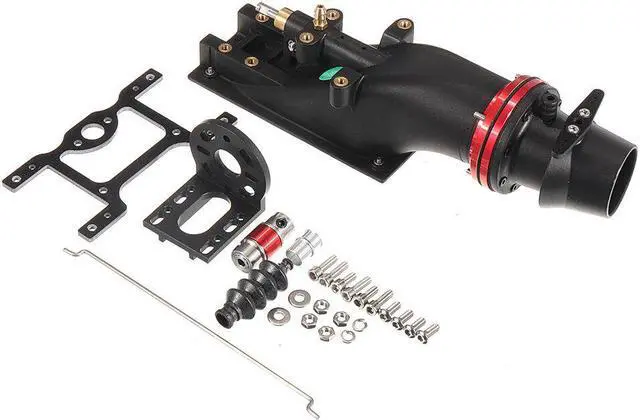

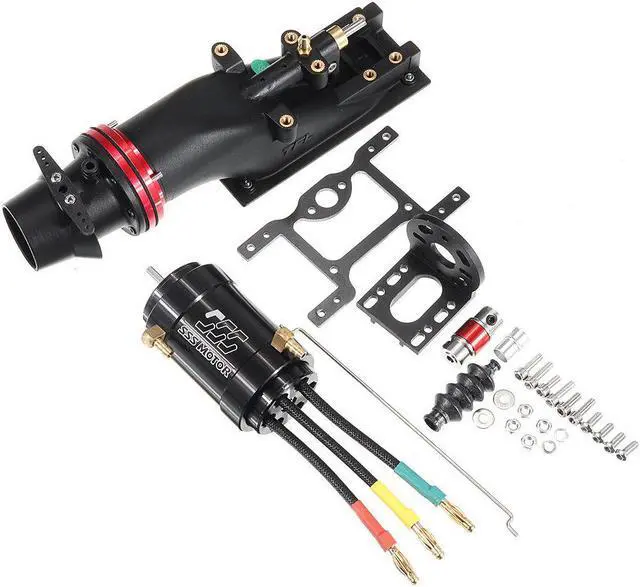

B54253-C B54253-D Water Jet Thruster with Brushless Motor Set for RC Boat Model Parts

Description:

Item Brand:

Item Number:B54253-C B54253-D

Item Name:Water jet thruster

Material:Nylon(the body of the jet thruster),carbon fiber(servo bracket),aluminum alloy and plastic

Color:Black

Type:B54253-C(2960kv) B54253-D(3660kv)

Product Size:172.3*55mm

Product Weight:The jet thruster is 104.3g

Packaging Weight:B54253-C is 430g,B54253-D is 508g

Fit For:RC boat modesl, 1151 boat is suitable

Recommendated ESC,Battery and Servo:(they are not included)

B54253-C:90a esc and 4s 14.8v battery

B54253-D:120a esc and 4s 14.8v battery

Servo:6kg servo

Specification of the 2960 Motor:

Motor Winding:5D

KV:2200kv

Max Current:48A

Max Voltage:28V

Max Power:1300w

No-load Current:0.8A

Max Speed:60k

Shaft Diameter:4/3.17mm

Motor Dimension:29.5*61mm

Motor Weight:170g

Poles:4

Specification of the 3660 Motor:

Motor Winding:3Y

KV:1620kv

Max Current:43A

Max Voltage:40V

Max Power:1700w

No-load Current:1.1A

Max Speed:60k

Shaft Diameter:5mm

Motor Dimension:36*60mm

Motor Weight:240g

Poles:4

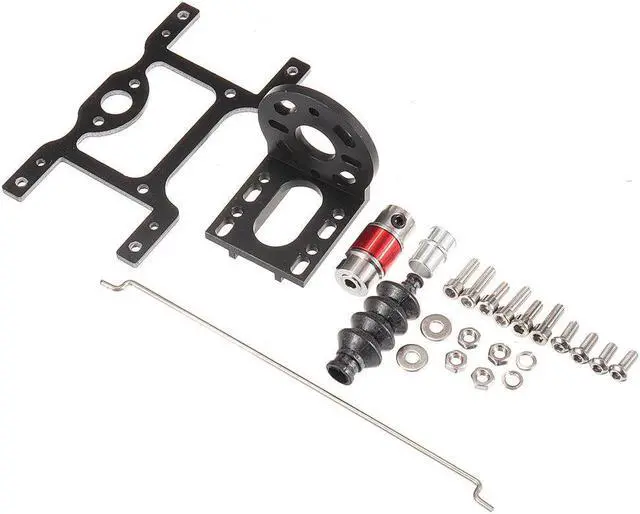

Package included:

1X Jet Thruster

1X Brushless Motor

1X Servo Bracket

1X Motor Mount

1X C

opper Tube

1X Screws Set
