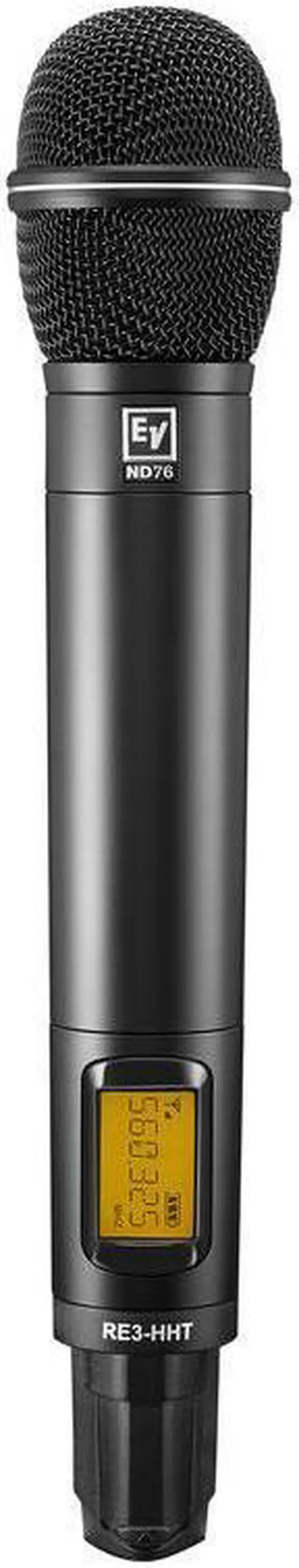

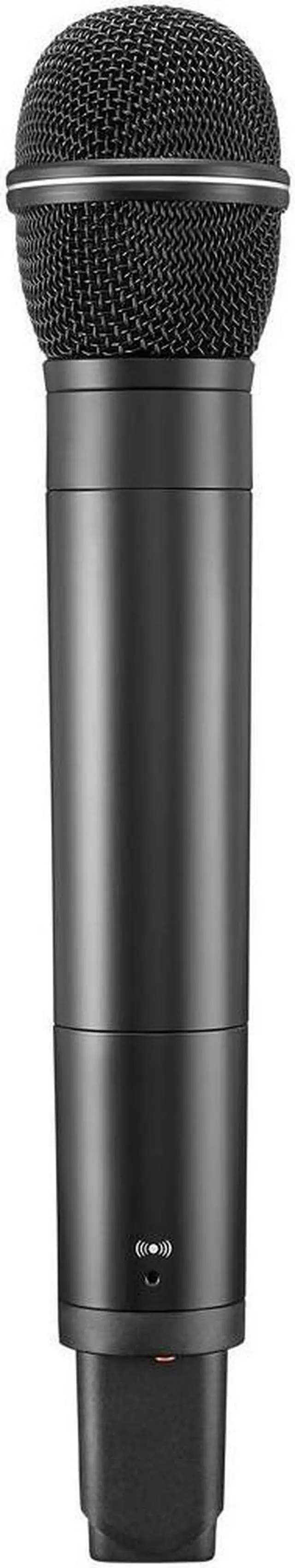

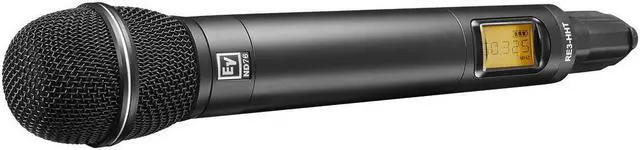

Electro-Voice RE3-HHT Handheld Transmitter, ND76-RC3 Microphone Head, 488-524MHz

UHF wireless transmitter featuring ND76 dynamic cardioid microphone
Handheld UHF wireless transmitter featuring ND76 dynamic cardioid microphone head for vocal performance and presentations. The ND 76's crisp, clear and balanced vocal presence is ideal for all-around voice applications. The transmitter pairs perfectly with the RE3-RX diversity receiver. Setup is quick and simple using the RE3 clear frequency scan and sync functions and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

- ND76-RC3 Wireless head with ND76 capsule -
The Electro-Voice ND76-RC3 is a robust, high performance, dynamic cardioid thread-on vocal microphone head for wireless handheld transmitters. This microphone head electrically and mechanically adapts to Electro-Voice (and many other brands) wireless handheld transmitters that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention. The floating captured ID collar will spin freely until screwing the head on tightly. It will remain locked in place when fully tightened. This allows the desired orientation of the branding to the transmitter.

Thread-on microphone head for Electro-Voice and other brand's wireless handheld transmitters
Excellent all-around vocal performance: crisp, clear and balanced
Large diaphragm dynamic capsule creates a rich and detailed frequency response
Shock-mounted capsule minimizes handling noise
Memraflex grille resists denting

Designed for excellent all-around voice applications, the precisely tuned capsule delivers crisp, clear and balanced vocal presence, as well as superior isolation from sound on the stage. The microphone head's dynamic capsule contains a large Mylar diaphragm, which delivers a rich and detailed frequency response by combining its large surface area for tonal balance with its low-mass high velocity material for exceptionally fast transient response.

The microphone head features an innovative capsule shock-mount system consisting of a 4-point suspension around the circumference of the capsule combined with a tuned pneumatic pump at the capsule base, offering superior handling noise reduction to eliminate mechanical vibrations and noise in the mix.

The Memraflex grille is made of a durable tight-mesh grille wire that withstands extraordinarily rough treatment. Your microphone head remains protected and looking good gig-after-gig, year-after-year. For additional protection, the capsule contains a hydrophobic cloth membrane, which prevents moisture and debris from reaching the diaphragm. The capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. Use the ND dynamic mics with confidence near speaker cabinets and EMF generating equipment racks.

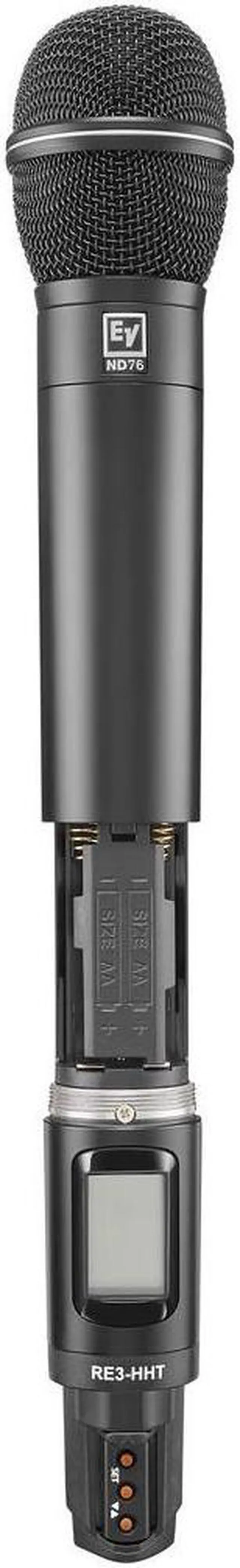

- RE3-HHT Handheld Transmitter -
The RE3-HHT is a lightweight, yet robust UHF handheld transmitter body. It is ideally-suited for professional performance and presentation applications. Due to its commonly-used 1.25" diameter, 28 UN-2A thread pitch microphone head coupling, it accepts mic heads using this common coupling convention. Although primarily intended to accept the ND and RE Series heads developed for RE3 listed in the accessories section of this data sheet, the RE3-HHT will adapt other microphone heads using the 1.25" diameter, 28 UN-2A thread pitch coupling scheme.

Robust metal body
Sync function for easy frequency setup
Selectable low and high output power (band specific)
Up to 36 MHz tuning bandwidth (band specific)
Common threaded coupling allows microphone head interchangeable
