FYUU 12/24V 100A MPPT Solar Panel Regulator Charge Controller

Be the first to review this product...
  • Top quality products: The quality of the products can be guaranteed to the greatest extent, because we have our own production warehouse. Products can be tested for quality before they leave the factory.
  • High-quality distribution logistics: Our delivery warehouse is in the United States. The logistics method used is a local first-level logistics service provider in the United States. From the moment you place the order, it will be collected within 24 hours. You can receive your package within 3-5 working days.
  • Timely after-sales service: Whether you have any questions about the logistics provider or product quality, you can contact me at any time. As long as the product is unused, you can return it to our warehouse in New Jersey. We serve you wholeheartedly 24 hours a day.
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

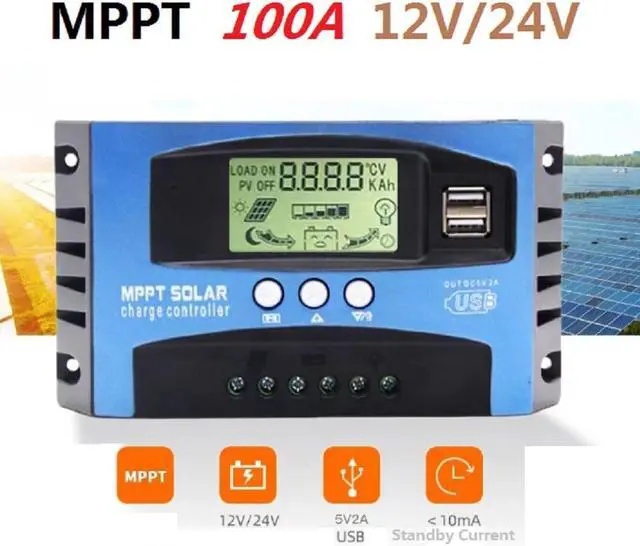

100A MPPT Solar Panel Regulator Charge Controller 12/24V

Type: Charger
Features: All Daylight Conditions, Corrosion Resistant, Flexible, LCD Display, Portable
Model: MPPT Solar Panel Charger
Color: Blue
Application: Home/Garden/Industrial/Commercial/Camping/Hiking
Bundle Description: Solar Panel Controller
Charging Mode: mppt (maximum power point tracking)
Current Rating: 100A
Power Source: Solar
Recommended Environment: outdoor
Rated Voltage: 12V/24V
Max.PV input power: 750W(12V) / 1500W(24V)
Size:168mm X 95mm X 35mm


Description:
·MPPT solar charge controller: Compared with normal solar charge controller, this MPPT controller could increase efficiency by 10%-30%.

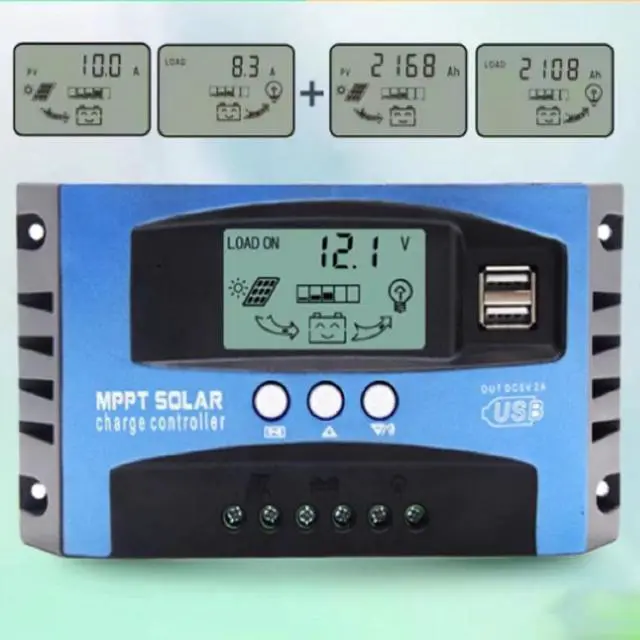

·Large-screen LCD display, adjustable charging and discharging parameters.
·This MPPT controller has perfect SOC function, control charge current, and supply power to the loads.
·Prevent the battery from over-charging, over-discharging and reverse charging to solar panels during nights.


Features:
·For 12V battery, solar panel working voltage can be between 17V and 23V; For 24V battery, solar panel working voltage can be between 36V and 46V.(Please confirm that the power and Solar panel working voltage the are within this range. If it's too high, it will damage the controller.)

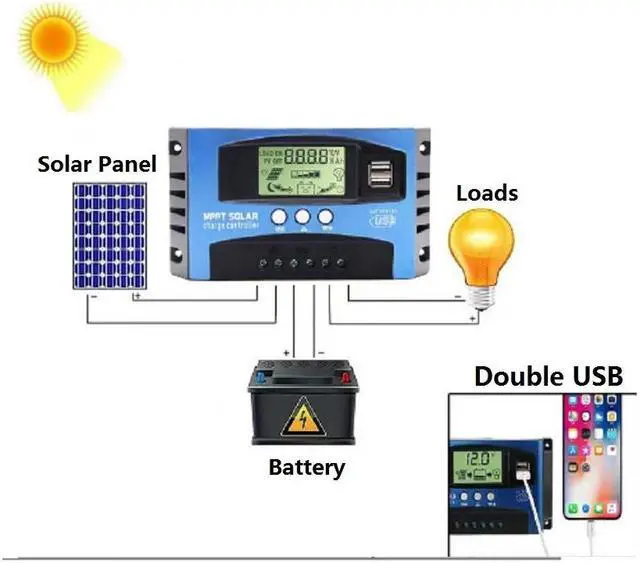

·Please be sure to connect the battery first (to ensure that the battery is fully charged), then connect the solar panel.
When disassembling, please remove the solar panel first, then remove the battery, please connect it exactly as this order, otherwise the controller and other components probably damaged.

There might be little error of size for manual measurement.


Package Including:
1 x MPPT Solar Charge Controller
