B Key M.2 NGFF Adapter PCIE to M2 Adapter NGFF M.2 Key-B SSD to PCI Express PCIE PCI-E Expansion Card for 2230 2242 2260 2280 M2

Interface Type:PCI Express
Package:Yes
Model Number:IO-PEX40153

B Key M.2 NGFF Adapter PCIE to M2 Adapter NGFF M.2 Key-B SSD to PCI Express PCIE PCI-E Expansion Card for 2230 2242 2260 2280 M2
About Description:
Features
1. Supports one lane of PCI Express.
2. Complies with PCI Express Base Specification Revision 3.1a.
3. Supports PCIe link layer power saving mode.
4. Supports 2 x M.2(SATA) port.
5. Supports command-based and FIS-based for Port Multiplier.
6. Complies with SATA Specification Revision 3.2.
7. Supports AHCI mode and IDE programming interface.
8. Supports Native Command Queue (NCQ).
9. Supports SATA link power saving mode (partial and slumber)
10. Supports SATA plug-in detection capable.
11. Supports drive power control and staggered spin-up.
12. Supports SATA Partial / Slumber power management state.
System Requirements
  Supports Windows 7,8,8.1 and 10
  Windows server 2K8,2K12,2K16,2K19
  Linux-base OS
You'll receive:

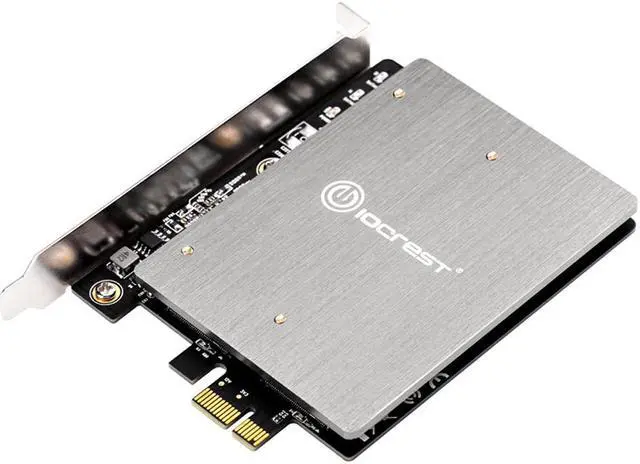

1 x PCIe x1 Gen3 to 2 x M.2(SATA) Card
1 x User Manual
1 x M.2 Mounting Material
1 x Screwdriver
2 x Self-adhesive Thermal Pad
Please check pictures for more details.
