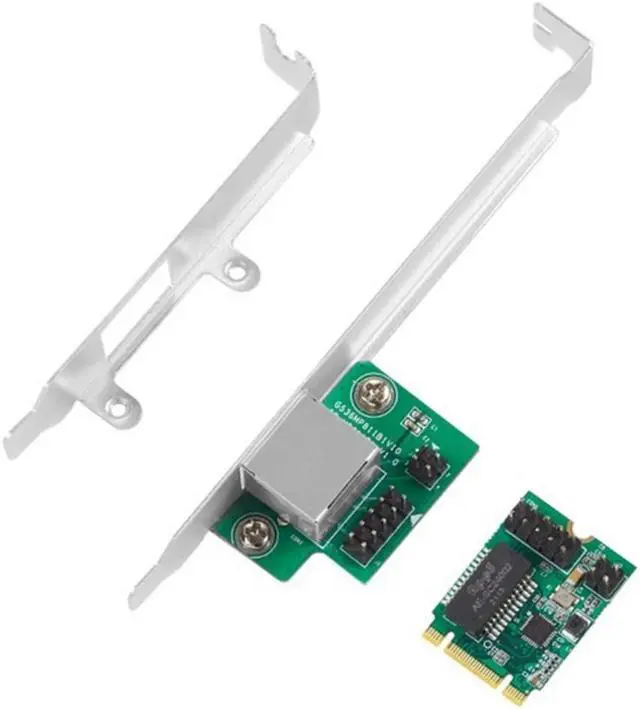

PCI-Express Gigabit Ethernet Adapter M2 NGFF Network Card M.2 (KYE-M/B) To RJ45 Interface 1000M Wired Network Card

Transmission Rate:1000Mbps
Origin:CN(Origin)
Kind:Internal
Type:Wired
Certification:NONE

PCI-Express Gigabit Ethernet Adapter M2 NGFF Network Card M.2 (KYE-M/B) To RJ45 Interface 1000M Wired Network Card
This PCI-Express Gigabit Ethernet Adapter is a high-performance 10/100/1000M Ethernet LAN controller. Users can extend a standard RJ45 Ethernet interface through the PCI-E slot of the computer.
Integrated RTL8111H chip, with good stability and compatibility, as well as rich operating system support, suitable for home users or office equipment.
Integrated 10/100/1000M transceiver. Support Giga Lite (500M) mode. Auto-negotiation with next page capability
PCI Express 1.1 support. Support for swap/polarity/skew correction
Cross detection and automatic correction. Supports 1-Lane 2.5Gbps PCI Express bus
Support hardware ECC (Error Correcting Code) function
Support hardware CRC (Cyclic Redundancy Check) function
Send/receive on-chip buffer support
Supports PCI MSI (Message Signaled Interrupt) and MSI-X
Fully compliant with IEEE802.3, 802.3u and 802.3ab
Supports IEEE 802.1P Layer 2 Priority Coding
Supports 802.1Q VLAN tagging
Support IEEE 802.3az-2010(EEE)
Supports full-duplex flow control (IEEE.802.3x)
Supports jumbo frames of 9K bytes
Quad-core Receive Side Scaling (RSS) support
Support Protocol Offload (ARP&NS)
Support for Microsoft WPI (Wakeup Packet Indication)
Wake-On-LAN and "RealWoW" technology (remote wake-up) support
ECMA-393 ProxZzzy standard with sleep host support
System Requirements
Windows ME, 98SE, 2000, XP, Vista, 7, 8, and 10 32-bit/64-bit
Windows Server 2003, 2008, 2012 and 2016 32-/64-bit
Linux, MAC OS and DOS
Material:Metal + Plastic
colour:Green
Package Contents:
1 x M.2(B+M Key) to 10 /100/1000M Ethernet card
2 x connecting cables
1 x Half Height Bezel
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
