PCIE X1 82576EB Dual Ports 1000M Gigabit Ethernet Network Card Networking Pci-E Ethernet Server Controler Card

Transmission Rate:10/100Mbps
Certification:NONE
Origin:CN(Origin)
Kind:External
Type:wireless
Package:Yes
Lan Transmission Rate:1000M Ethernet
Application:Server
Adapter Socket:RJ45
Interface Type:PCI Express
Applicable Network Type:Gigabit Ethernet

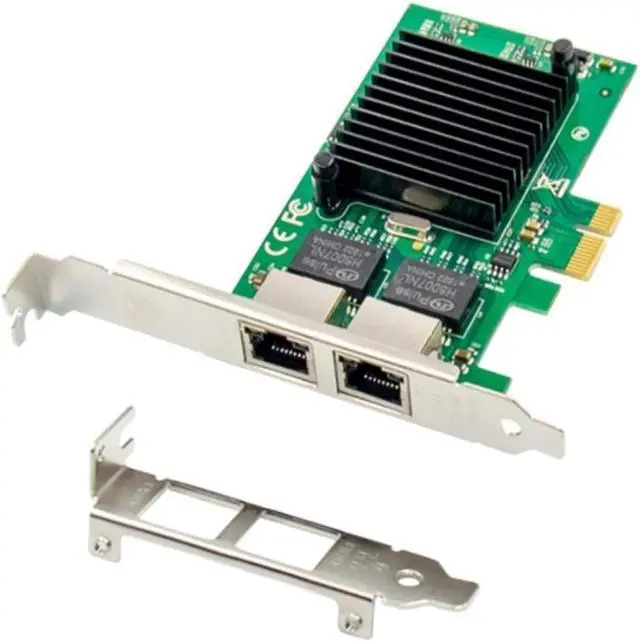

PCIE X1 82576EB Dual Ports 1000M Gigabit Ethernet Network Card Networking Pci-E Ethernet Server Controler Card
PCIe X1 Gigabit Ethernet electrical port network card, based on ® Ethernet 82576 controller. This adapter represents enterprises and data centers
The next step in Gigabit Ethernet (GbE) network evolution, providing audio/video bridging (AVB) support, and power management such as energy-efficient Ethernet
Technology (EEE) merge with DMA (DMAC).
PCI Express x Gen 2.1 (2.5GT/s), high performance design
Dual-port PCI-Express x 10/100/1000Mbps Ethernet network card
Innovative power management functions:
Including Energy Efficient Ethernet (EEE), DMA coalescing, ultra-compact design, and unique ventilation brackets that can increase efficiency and reduce power consumption.
IEEE 802.1Qav Audio-Video Bridge (AVB), used for strictly controlled media stream synchronization, buffering and reservation
Technical Parameter
Applicable network Gigabit Ethernet
Main controller: 82576EB
Media interface:copper cable, RJ45
Network topology:10BASE-T/ 100BASE-TX/ 1000BASE-T, IEEE 802.1Q VLANs, IEEE 802.3z, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az
Energy Efficient Ethernet (EEE)
Management function IPMI transfer through SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
Operating system BSD, Linux, VMWare ESXi,
Win 7/ Server 2012/ Server 2008/ Win 8/Win 8.1/Server 2016/Win 10
Firmware environment
Working temperature: 0 ~ 55 (32 ~ 131)
Storage temperature: -40 ~ 70 (-40 ~ 158)
Storage humidity: 90%, non-condensing relative humidity at 35
colour: green
Material: plastic
Package Contents:
1 x Network Card
1 x Iron piece
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
