CF to IDE 2.5 43/44Pin Laptop HDD Connector CF Male to IDE Female Compact Flash Memory Card Adapter Converter Riser Board for PC

CF to IDE 2.5" 43/44Pin Laptop HDD Connector CF Male to IDE Female Compact Flash Memory Card Adapter Converter Riser Board for PC
About Description:
Feature:

1. Support for a single CF card type.

2. For laptops, convert your CF card to a standard IDE hard drive.

3. For embedded industrial PC, used to store embedded LINUX, WINCE and other operating systems and applications data.

4. You can also plug directly into the laptop IDE port. Easy to use.
5. CF card to 43/44PIN 2.5 "IDE hard drive.
6. IDE CF (ide-cf) adapters are adapters that connect compact flash CARDS to the 2.5 -inch host interface. This drive allows the use of compact flash CARDS as hard disk ides.

7. The adapter allows any computer with a 2.5 -inch hard disk to easily convert to using low-power and shock-resistant CF media.

Specifications

:
Single CF card type I/II is supported.
No driver is required
Master/slave selection mode
Male 43/44pin IDE connector.
You can use CF to boot from /Windows/Linux, even as an IDE hard drive, but using DMA MOD from the main/slave jumper is faster
Type: CF to 2.5" 43/44pin IDE hard drive
Material: PCB
Interface: 43/44pin

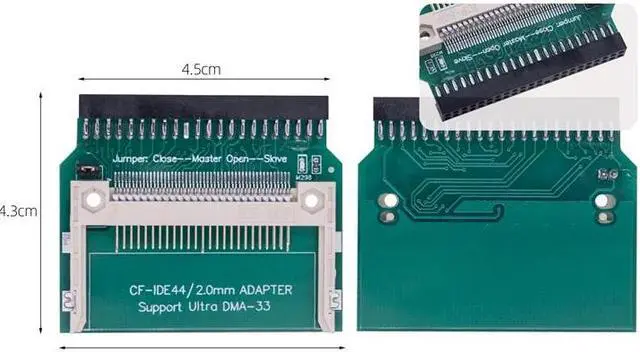

Size: approximately 53 * 44 * 5 mm / 2.1 * 1.7 * 0.2 in
Weight: 10g
You'll receive:
1 x Compact Flash CF to IDE 2.5" 43/44Pin Female Adapter Converter

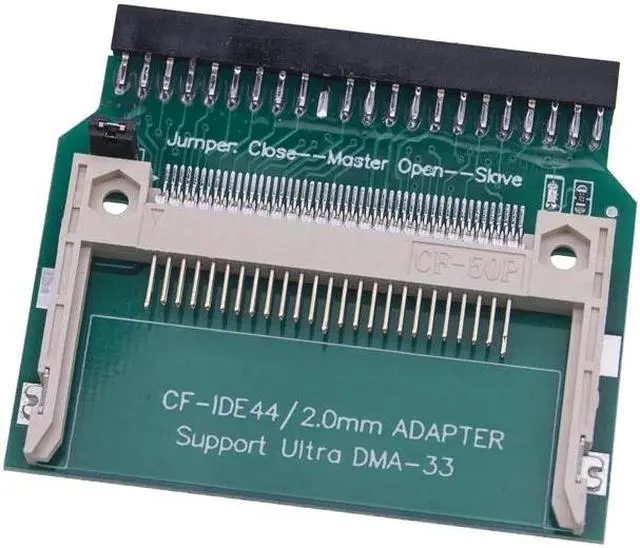

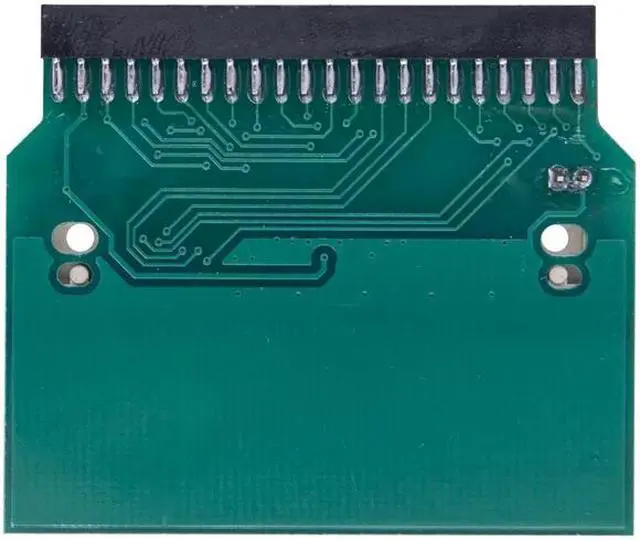

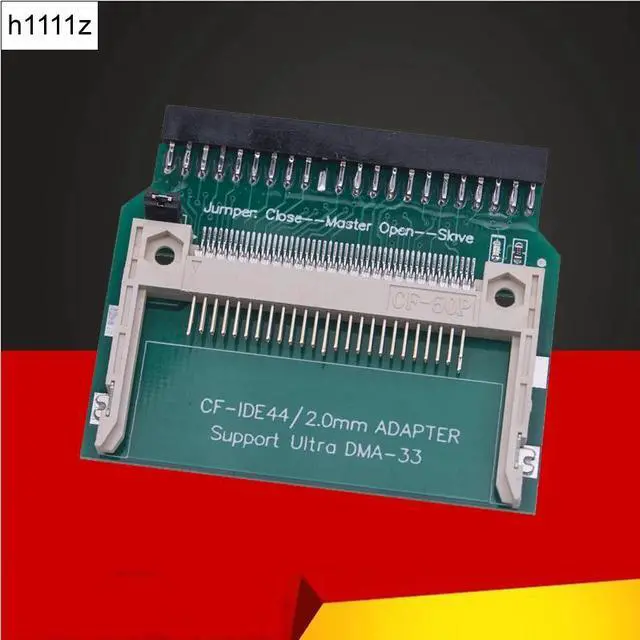

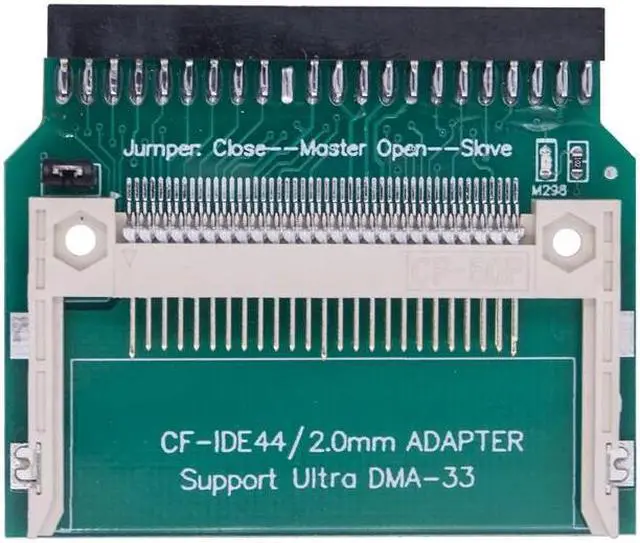

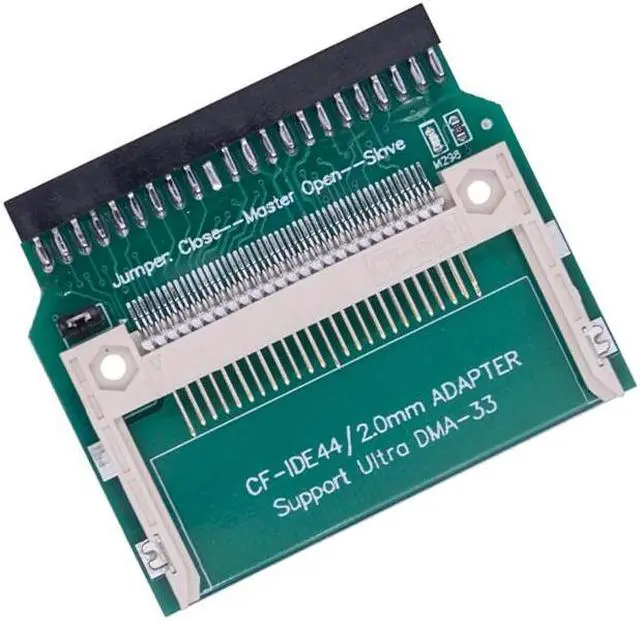

Please check pictures for more details.
